4-67
IM DLM3054-01EN
• Trigger only on the data pattern
Mode Address Date
Address Don’t care
Data Condition: True, Size: 2 bytes, Data pattern: 27 and AE

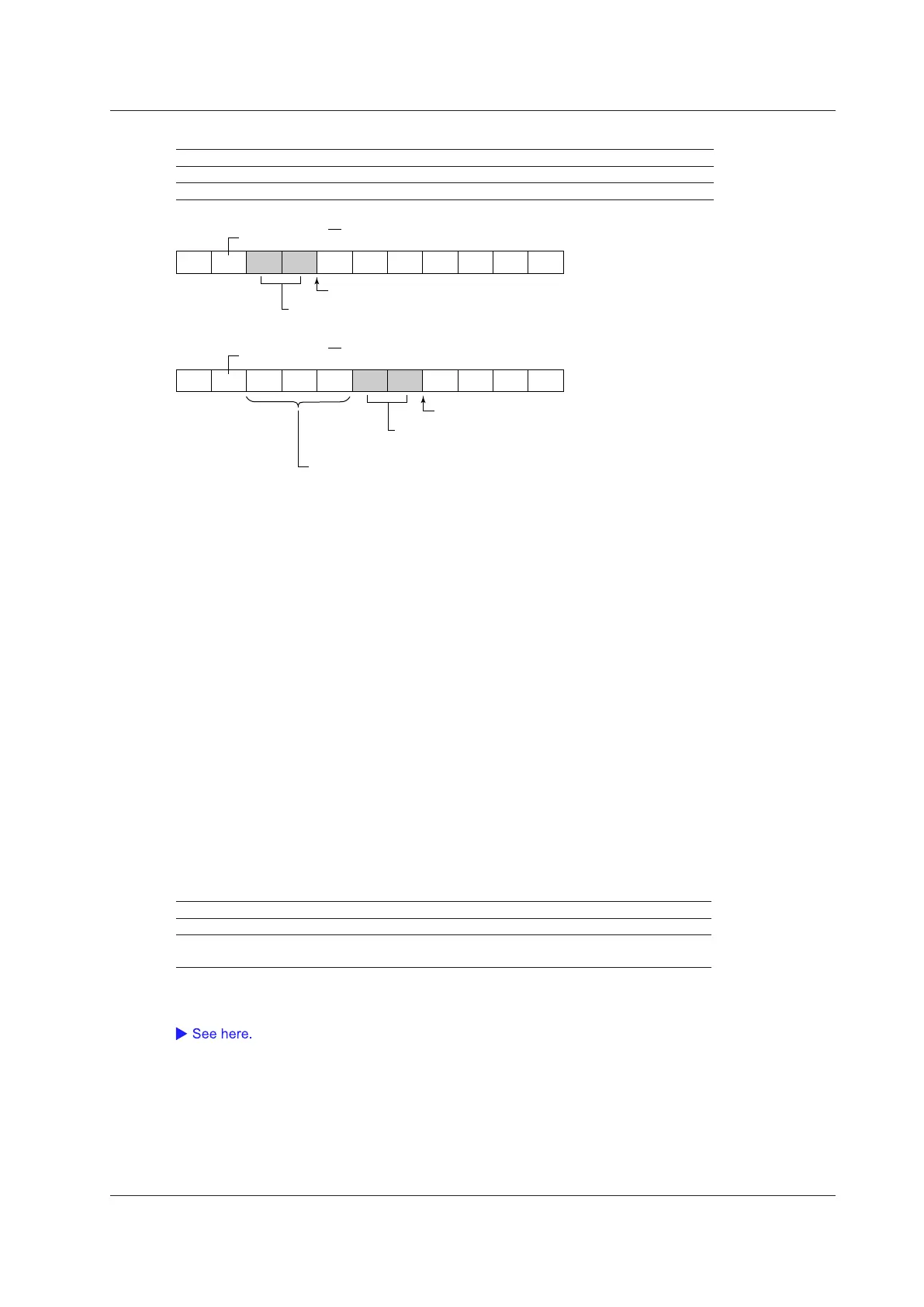

<When the position is not specified>
S
27 AE 57
27 AE
98 99 27 PA4
2. Triggers here
1. Matches the specified data pattern size (27 and AE)
Address + R/W bit
<When the position is set to 3>
S
27 AE 57
27
98 99 27 PA4
3. Triggers here
Address + R/W bit
1. Skips 3 bytes
AE
2. Matches the specified data
pattern size (27 and AE)
NON ACK
The instrument triggers when the acknowledge bit is Nack (when the SDA signal is high) at the acknowledge bit
position.
You can select whether to use (OFF) or ignore (ON) the acknowledge bits that belong to the start byte (Start
Byte), HS mode master code (HS Mode), and read access byte (Read Access).
General Call
When a general call address is detected, the instrument triggers on the acknowledge bit position of the second
byte (address).
• Trigger Condition (Condition Setup)
On the Condition Setup screen, set the trigger conditions. The instrument triggers based on the general call
and second byte items whose check box is selected.
General Call
The instrument triggers on the general call address (0000 0000). This is always set as a trigger condition.
Second Byte
You can use the second byte address pattern (the byte after the general call address) as a trigger condition.
The second byte trigger condition is met when the input signal pattern matches the specified pattern. You can
select the second byte address pattern (Type) from one of the settings below.
0000 0100 When the input signal pattern matches the pattern 0000 0100 (0x04)
0000 0110 When the input signal pattern matches the pattern 0000 0110 (0x06)
Master
Address
When the input signal pattern matches the specified pattern, if you select Master
Address, you can use the address or data pattern as a trigger condition.
Address/Data
When the second byte is set to Master Address, set the Address Data mode trigger condition.
4 Triggering
To Next Page
