Operations on the Operation Screens
Displaying the Report Data
This operation is carried out on the memory summary screen.
Display the report data according to the procedure described in “
Changing the
Display
.”
• Switching the Displayed Report Data

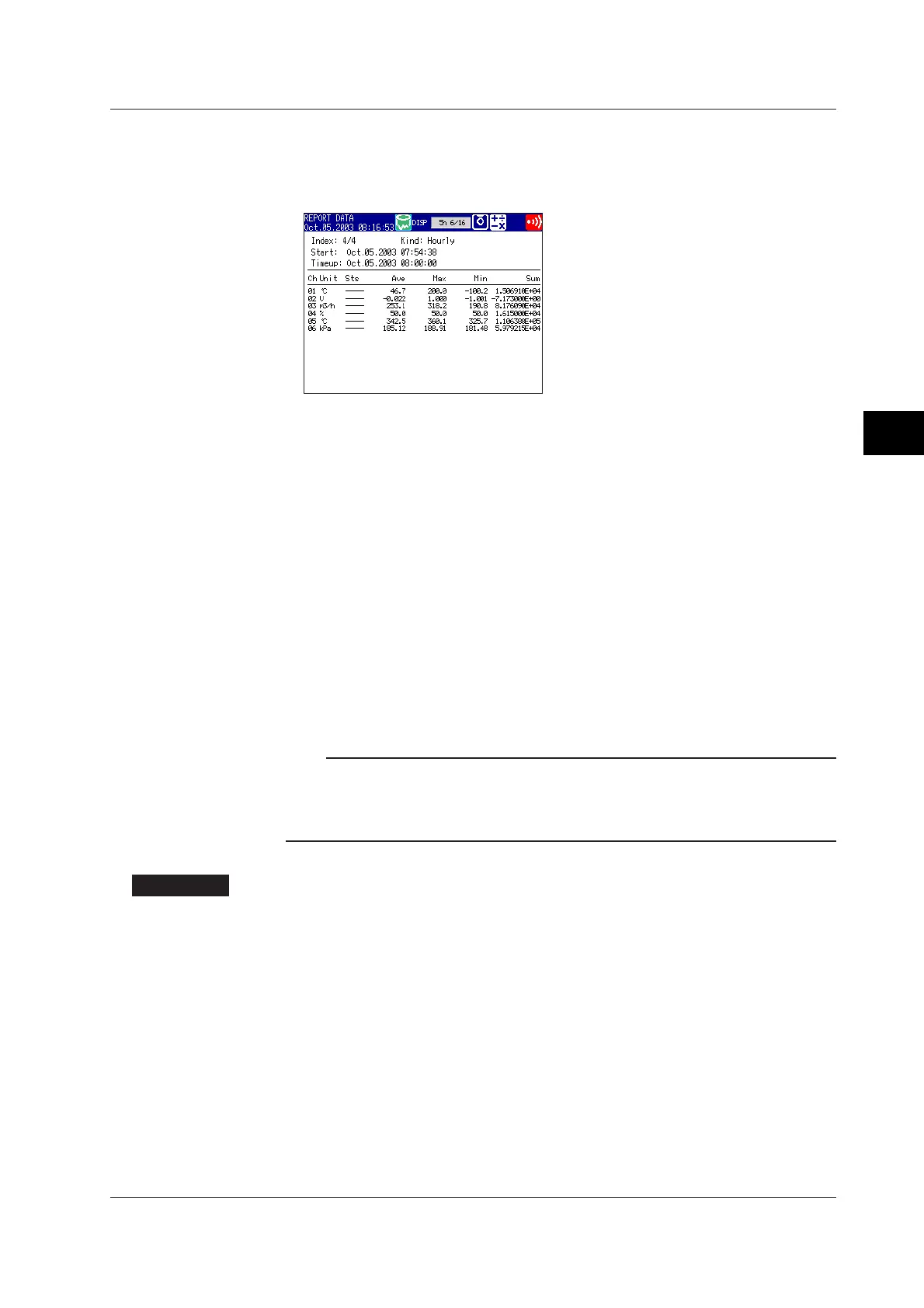

The [Index] of the report data display shows “the number of the report data being
displayed/the number of report data saved to the internal memory.” The largest report
data number corresponds to the most recent report data.
Press the arrow keys while displaying the report data to switch the report data to be
displayed. The behavior when the four keys are pressed is as follows:
Up arrow key: Displays the report data corresponding to report data being displayed
+ 1.
Down arrow key: Displays the report data corresponding to report data being
displayed − 1.
Right arrow key: Displays the report data corresponding to report data being
displayed + 10. However, if such report data does not exist, the most recent report
data is displayed (maximum report data number).
Left arrow key: Displays the report data corresponding to report data being displayed
− 10. However, if such report data does not exist, the oldest report data is displayed
(report data number 1).
Note
Even if a new report data is created while displaying the report data, the display is not
updated. The most recent report data is displayed by performing either operation below.
• Press the right arrow key.
• Press the DISP/ENTER key and display the report data again from the screen menu.
Explanation
Displayed Contents
For the description of the displayed contents, see pages as followed:
Alarm summary: page 1-23
Message summary: page 1-24
Memory summary: page 1-25
