Setup Items
Scale Division, Scale Position of Trend Screens
• First-CH/Last-CH
Set the target channel (common with the [Zone] setting).
• Graph
• Division
Set the number of main scale marks from [4] to [12]. In addition to the values of [4]
to [12],
[C10] is available. When [C10] is selected, the scale is equally divided into 10
sections by main scale marks, and scale values are indicated at 0, 30, 50, 70, and
100% positions on the trend display.
Note
Only main marks are displayed on bar graph screens.
• Scale position
Select the scale display position on the trend display from [1] to [6]. When the trend
waveform is displayed vertically, the top is [1] and the bottom is [6]. When the trend
waveform is displayed horizontally, the right end is [1] and the left end is [6].
Select [Off] if you do not wish to display the scale.
Below is an example in which the position of the scale is offset for each channel with
a scale of different division setting.

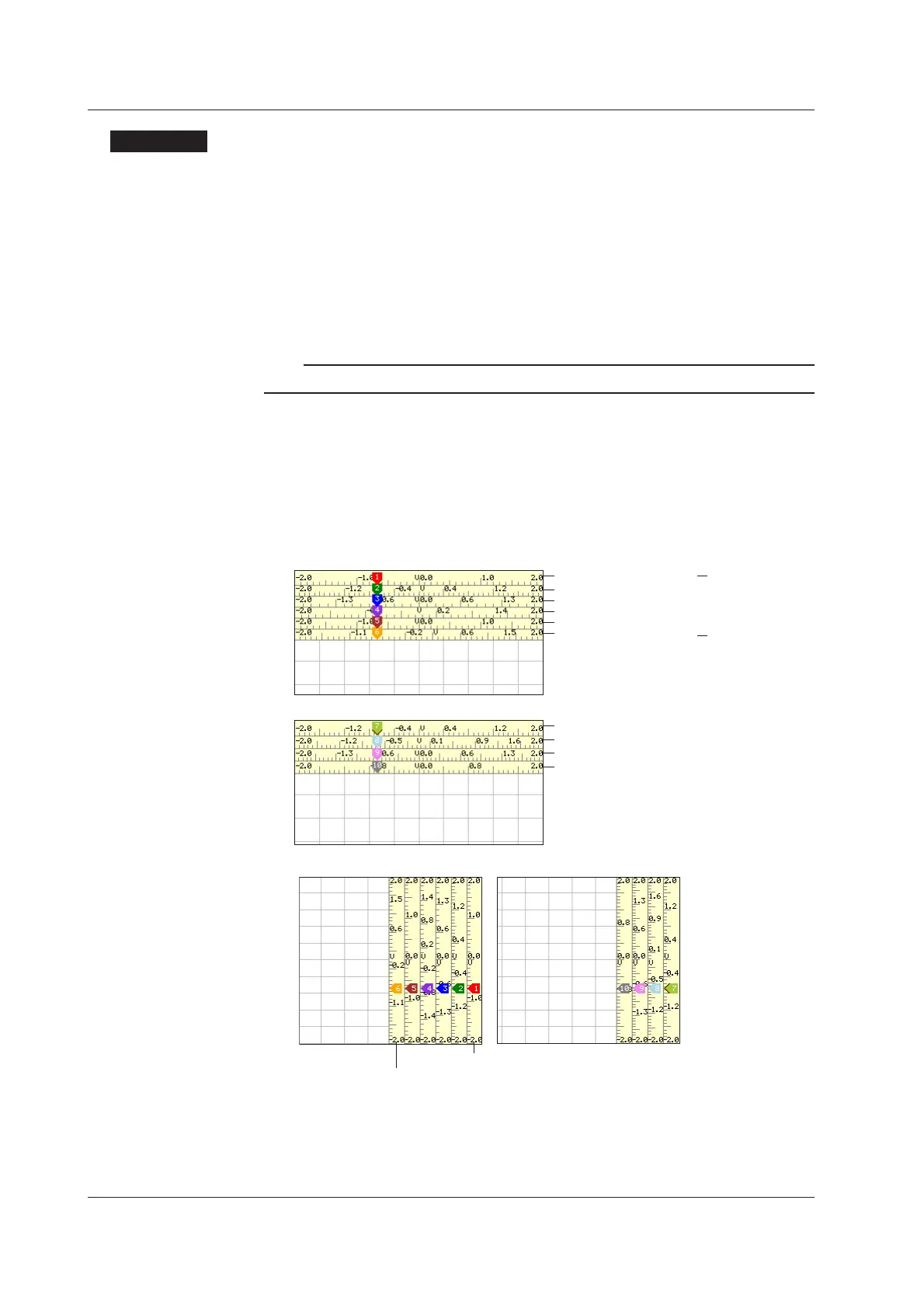

• When displaying the trend waveform vertically
4 scale division sample Scale position [1]
Scale position [6]
5 scale division sample
6 scale division sample
7 scale division sample
8 scale division sample
9 scale division sample
10 scale division sample
11 scale division sample
12 scale division sample
C10 scale division sample
• When displaying the trend waveform horizontally
Scale position [1]
Scale position [6]
6.8 Setting the Scale
To Next Page
