YOKOGAWA FX103 User Manual

7-5
IM 04L20A01-01E
7
Data Save/Load Operations
Interval to Save Data in the internal Memory to the External Storage Medium (Auto
Save Interval) <Setting Mode>
Procedure
Opening the Setting Display
MENU key (switch to setting mode) > #3 soft key (select [Trend/Save interval, User
key])

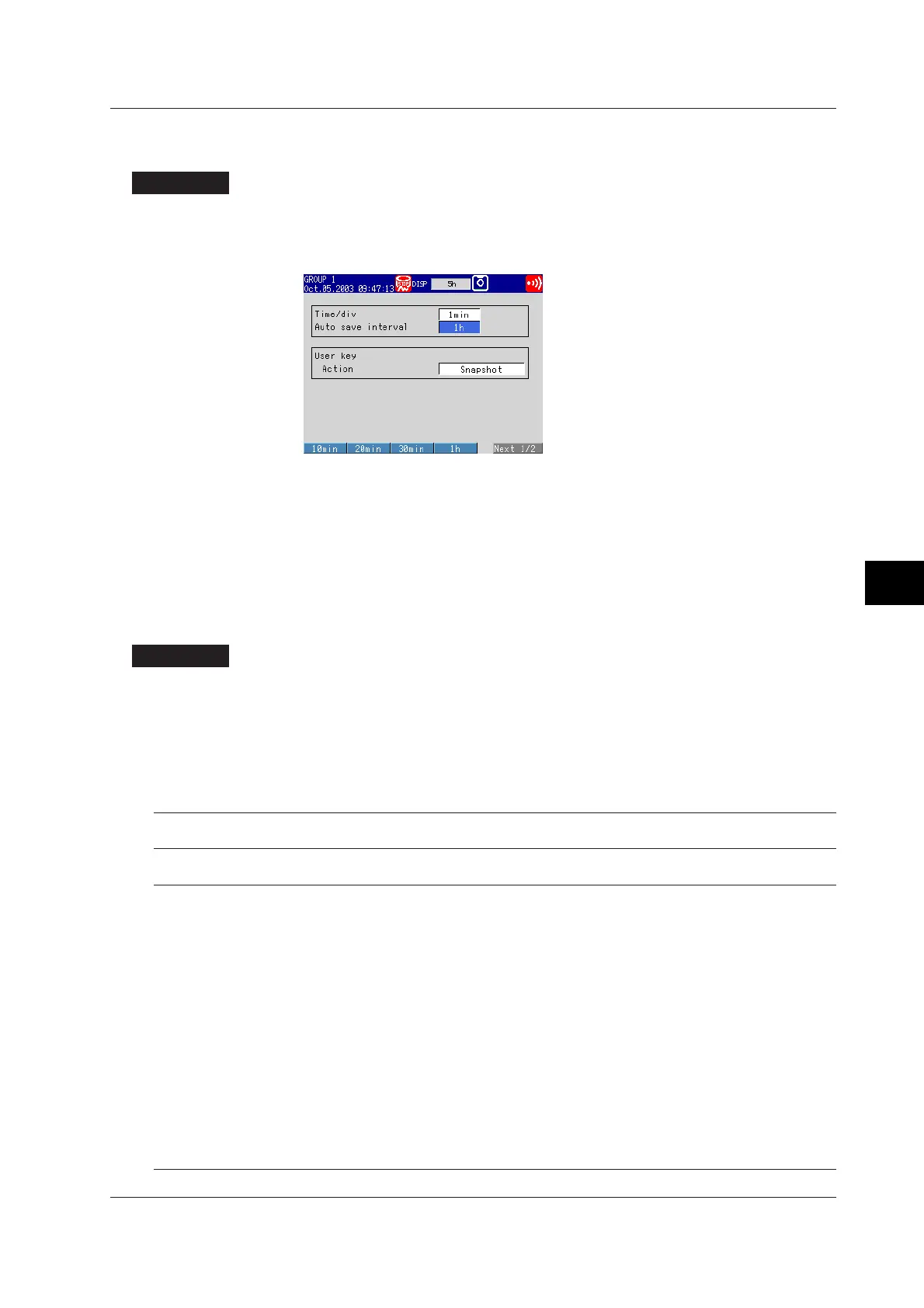

From the operation mode, use the above keys to open the following setting display.
Setup Procedure
1. Use the arrow keys to move the cursor (blue) to [Auto save interval].
A soft key menu is displayed at the bottom of the display.
2. Press the soft key corresponding to the value you wish to select.
The box for the item you changed turns yellow, and the cursor moves to the next
item.
3. Press the DISP/ENTER key to confirm the changes.
The boxes for the items you changed turn from yellow to white, and the cursor
returns to the first item box.
Setup Items
Auto Save Interval
• Auto save interval
The possible values from the following table is displayed as choices for the auto save
interval. The maximum auto save interval varies depending on the display update
rate (sampling interval is determined from the display update rate), the data type
(display data only/display data and event data), and the number of channels to be
stored.
Display update 15 s* 30 s* 1 min 2 min 5 min 10 min 15 min 20 min 30 min 1 h 2 h 4 h 10 h
rate (/DIV)
Sampling 0.5 1 2 4 10 20 30 40 60 120 240 480 1200
interval (s)
Auto save 10 min 10 min 10 min 10 min 10 min 10 min 10 min
interval 20 min 20 min 20 min 20 min 20 min 20 min 20 min
(choices) 30 min 30 min 30 min 30 min 30 min 30 min 30 min
1 h 1 h 1 h 1 h 1 h 1 h 1 h 1 h 1 h 1 h
2 h 2 h 2 h 2 h 2 h 2 h 2 h 2 h 2 h 2 h 2 h
3 h 3 h 3 h 3 h 3 h 3 h 3 h 3 h 3 h 3 h 3 h
4 h 4 h 4 h 4 h 4 h 4 h 4 h 4 h 4 h 4 h 4 h 4 h
6 h 6 h 6 h 6 h 6 h 6 h 6 h 6 h 6 h 6 h 6 h 6 h
8 h 8 h 8 h 8 h 8 h 8 h 8 h 8 h 8 h 8 h 8 h 8 h 8 h
12 h 12 h 12 h 12 h 12 h 12 h 12 h 12 h 12 h 12 h 12 h 12 h 12 h
1 day 1 day 1 day 1 day 1 day 1 day 1 day 1 day 1 day 1 day 1 day 1 day
2 day 2 day 2 day 2 day 2 day 2 day 2 day 2 day 2 day 2 day 2 day
3 day 3 day 3 day 3 day 3 day 3 day 3 day 3 day 3 day 3 day
5 day 5 day 5 day 5 day 5 day 5 day 5 day 5 day 5 day
7 day 7 day 7 day 7 day 7 day 7 day 7 day 7 day 7 day
10 day 10 day 10 day 10 day 10 day 10 day 10 day 10 day 10 day
14 day 14 day 14 day 14 day 14 day 14 day 14 day 14 day
31 day 31 day 31 day 31 day 31 day 31 day 31 day
* for the FX103 only
7.1 Setting Measured Data Acquisition to the Internal Memory and Data Save to the External Storage Medium
