7-6 IM 04L20A01-01E
File Header, Destination Directory Name, Data to Be Saved during Manual Save
Operation <Setting Mode>
Procedure
Opening the Setting Display
MENU key (switch to setting mode) > #6 soft key (select [File, DST])
From the operation mode, use the above keys to open the following setting display.

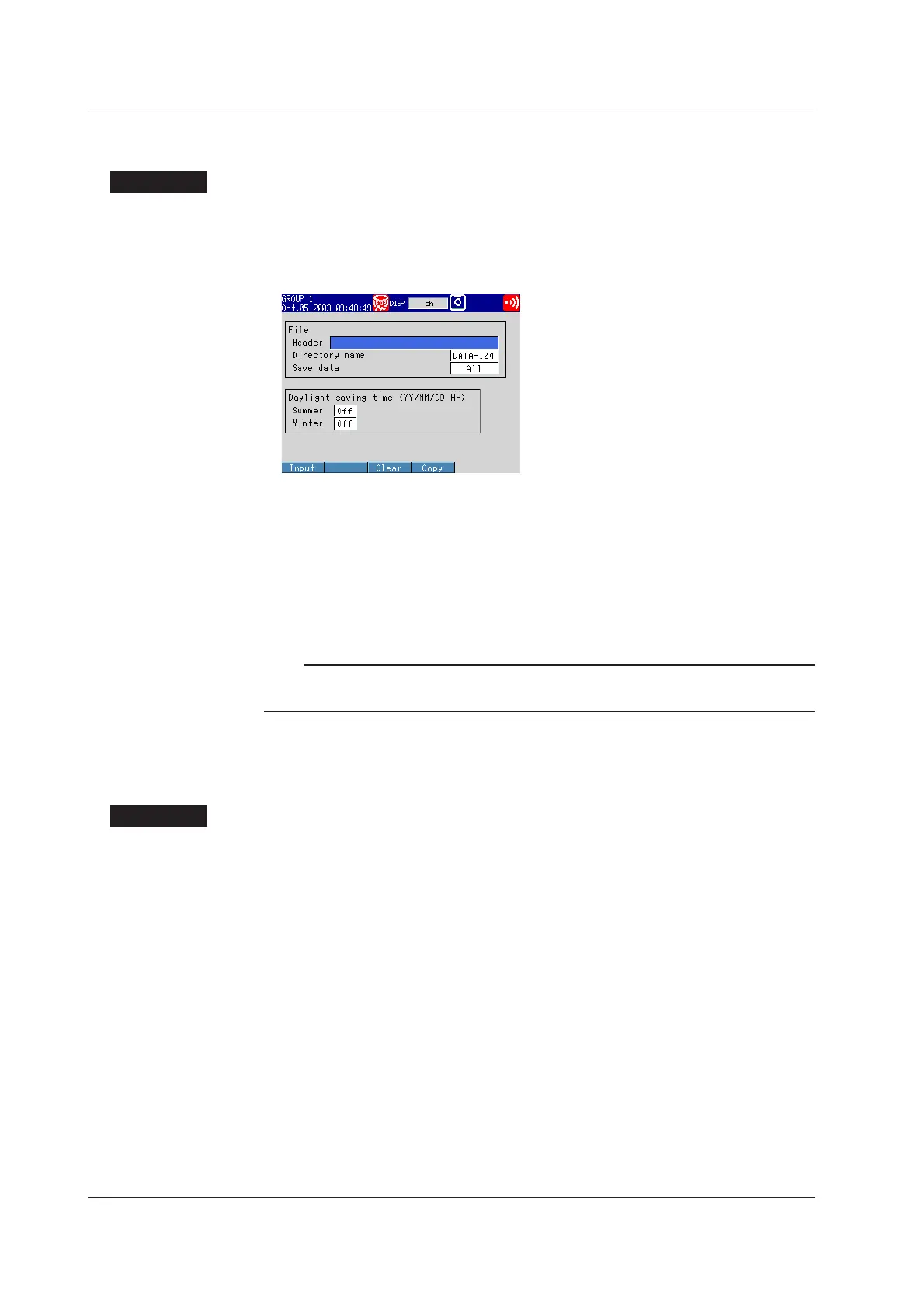

The figure below shows an example when set to manual save. When in auto save
mode, the [Save data] box is not displayed.
Setup Procedure
1. Use the arrow keys to move the cursor (blue) to the item box you wish to
change.
A soft key menu is displayed at the bottom of the display.
2. Press the soft key corresponding to the value you wish to select.
The box for the item you changed turns yellow, and the cursor moves to the next
item.
3. Repeat steps 1 and 2 to change the value of all the items you wish to change.
Note
[Header] and [Directory name] are set using the pop-up window that appears by pressing the
[Input] soft key.
4. Press the DISP/ENTER key to confirm the changes.
The boxes for the items you changed turn from yellow to white, and the cursor
returns to the first item box.
Setup Items
File Header, Destination Directory Name, Data to Be Saved during Manual Save
Operation
• File
• Header
Enter the header comment to be written to the data file using up to 32
alphanumeric characters. The specified header is written to all display data, event
data, manual sampled data, TLOG data (/M1, /PM1 option), and report data (/M1, /
PM1 option) files.
• Directory name
Set the name of the directory for saving the data on the external storage medium.
The following characters or strings cannot be used as file names.
“AUX,” “CON,” “PRN,” “NUL,” “CLOCK,” character strings that include a space
or spaces
All the data excluding the setup data (display data, event data, manual sampled
data, TLOG data (/M1, /PM1 option), report data (/M1, /PM1 option), and screen
image data) are saved to the specified directory. The setup data is saved to the
root directory.
