Status Indication Section

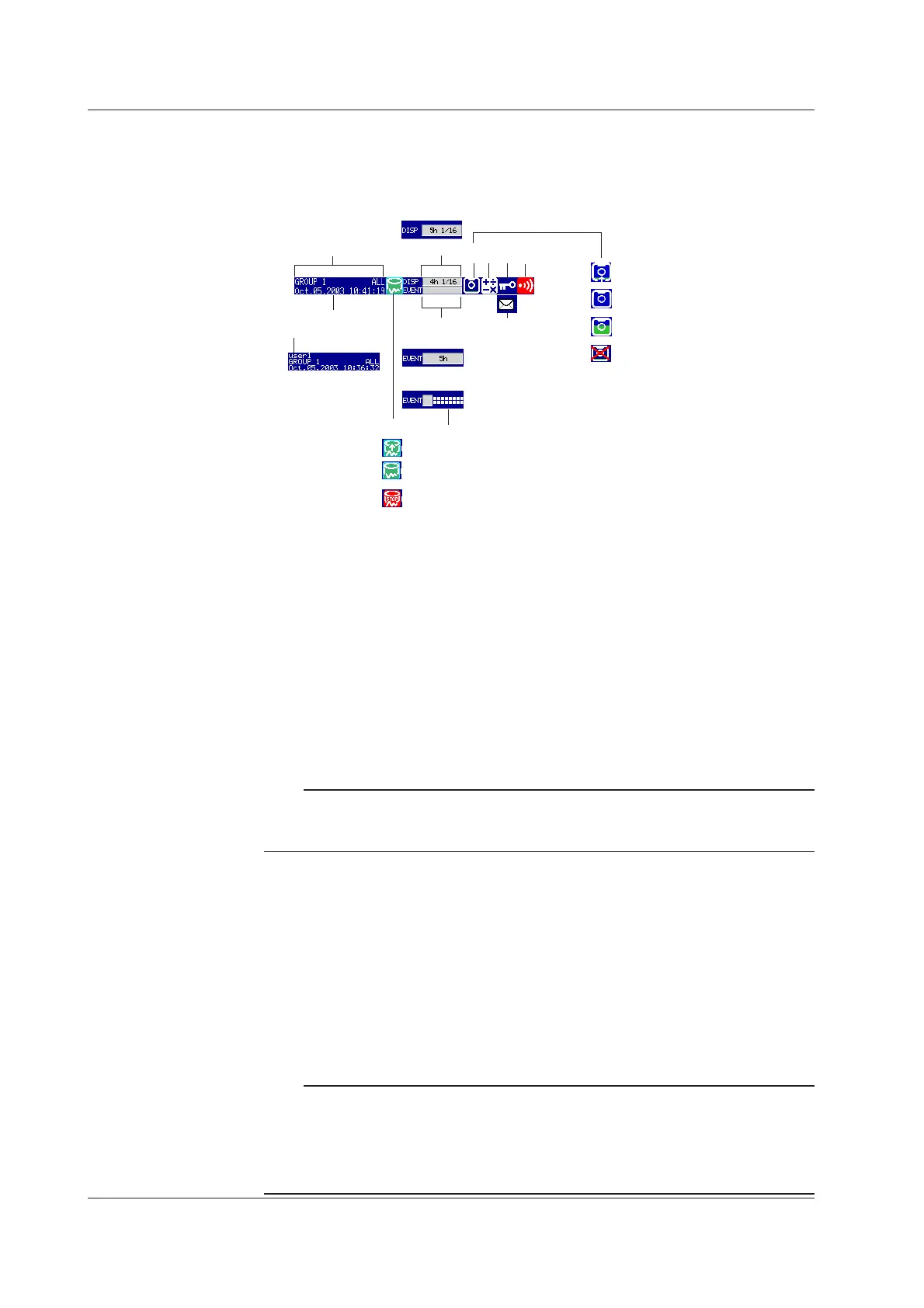

The following information is displayed in the status display section during operation
mode and setting mode. (The information is not displayed during basic setting mode.
[Setup Mode] is displayed instead.)
Display data
Event data/[Free] mode
Event data/[Trigger] or [Rotate] mode
1
8
5
9
11
10
3
4
7
2
6
A
B
C
D
E
F
G
The internal memory is
divided into 16 blocks.
1. User name
The user name is displayed when the key login function is used and the user is
logged in.
2. Group name or display name
The display name or group name corresponding to the display shown on the data
display section. [ALL] is displayed only when all channels are displayed on the
trend display (see page 1-17).
3. Current date and time
The current date and time are displayed.
4. Data acquisition to the internal memory ON/OFF
A and B is alternately displayed: Data being acquired or waiting for a trigger for
event data.
C: Data acquisition stopped
Note
For event data that starts sampling when the trigger condition is met, the display indicates
that sampling is in progress even in the trigger wait state. The trigger wait state can be
determined on the bar graph.
5. Memory usage of the display data acquisition area in the internal memory
Displayed when acquisition of display data is enabled.
For models with a storage medium drive
• The box indicates the amount of display data acquisition area in the internal
memory. The green bar shows the used space of the area.
• Time display indicates the remaining space of the display data acquisition area
in the internal memory.
• n/16
The maximum number of display data files that can be written to the internal
memory is 16. “16” represents this value. The value n is the number of display
data files in the internal memory.
Note
In the following cases, the display data is overwritten from the oldest file. Use caution
because the overwritten data is lost forever.
• When there is no more remaining space of the display data acquisition area in the internal
memory.
At this point, the status display section shows [Overwrite].
• When the number of display data files in the internal memory has exceeded 16.
1.4 Display Function
