Explanation of Functions

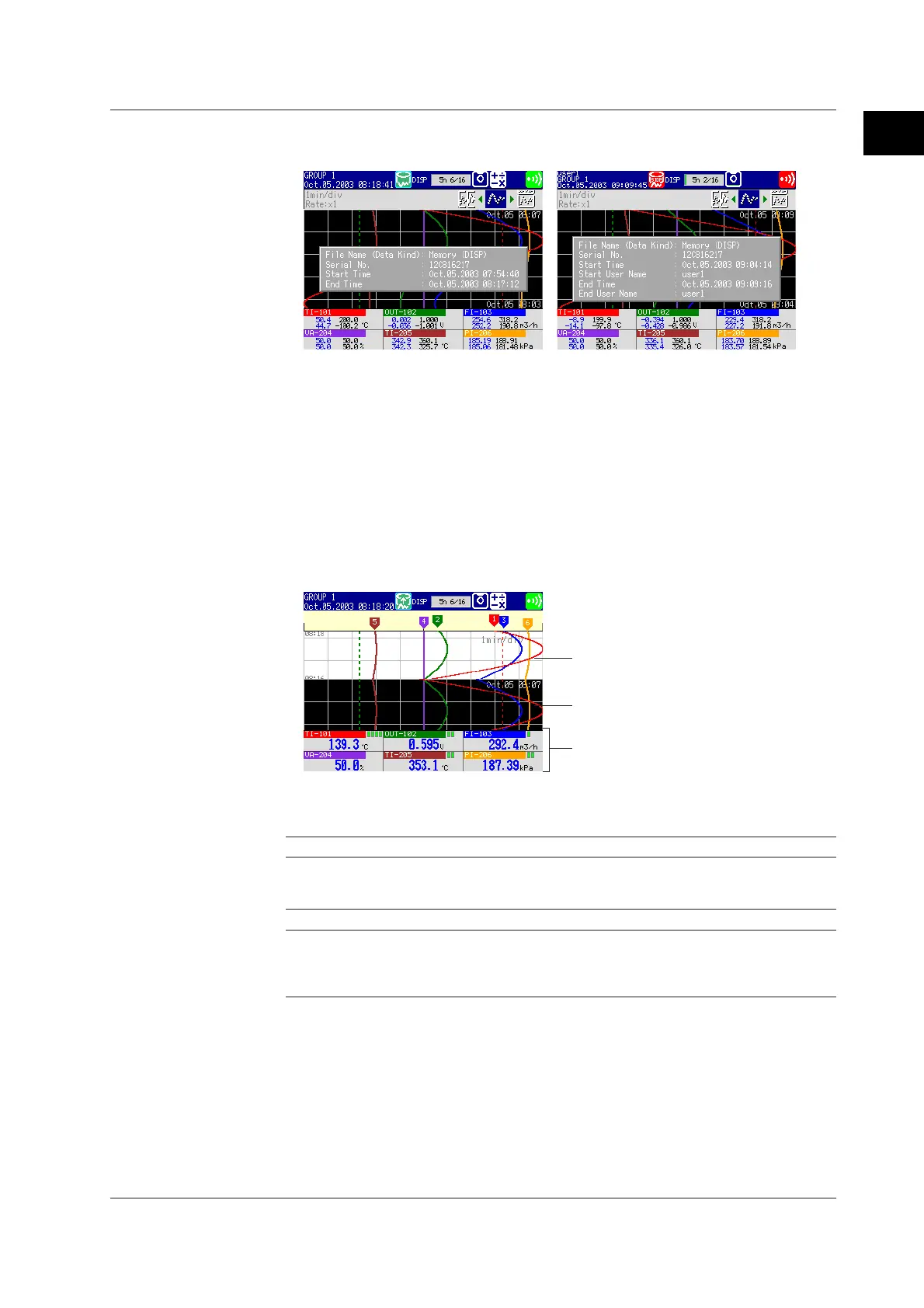

• The information of the data being displayed on the historical trend can be displayed.
When the login function is disabled When the login function is enabled
File Name (Data Kind): File name and data type (display data or event data)
Serial No.: Serial number of the FX100 that acquired the data
Start Time, End Time: Time at which data acquisition is started/stopped
Start User Name, Stop User Name: Name of the user who carried out the operation
(user name is displayed only when the key login function is used).
Half Screen Display (Only When Displaying the Historical Trend of the Display
Data)
Using up and down arrow keys, you can have a half of the display show the historical
data of the display data and the other half show the display data currently being
measured.
Current ternd
Current channel information
Historical trend
Setting the Display Condition of the LCD
The following display conditions of the LCD can be configured.
Display Attribute Setting
Background color of The background color of the display can be set to white or black. The initial
the operation display setting of the control operation display is [Black]; the initial setting of the
measurement operation display is [White].
LCD brightness The brightness of the LCD can be set between eight levels. The initial setting is [2].
Backlight saver The lifetime of the LCD backlight can be extended by automatically dimming
the light when there is no key operation for a certain amount of time. The
display returns to the original brightness with a key operation or an alarm
occurrence. The initial setting is set so that the backlight saver is disabled.
