Cradle Installation
148

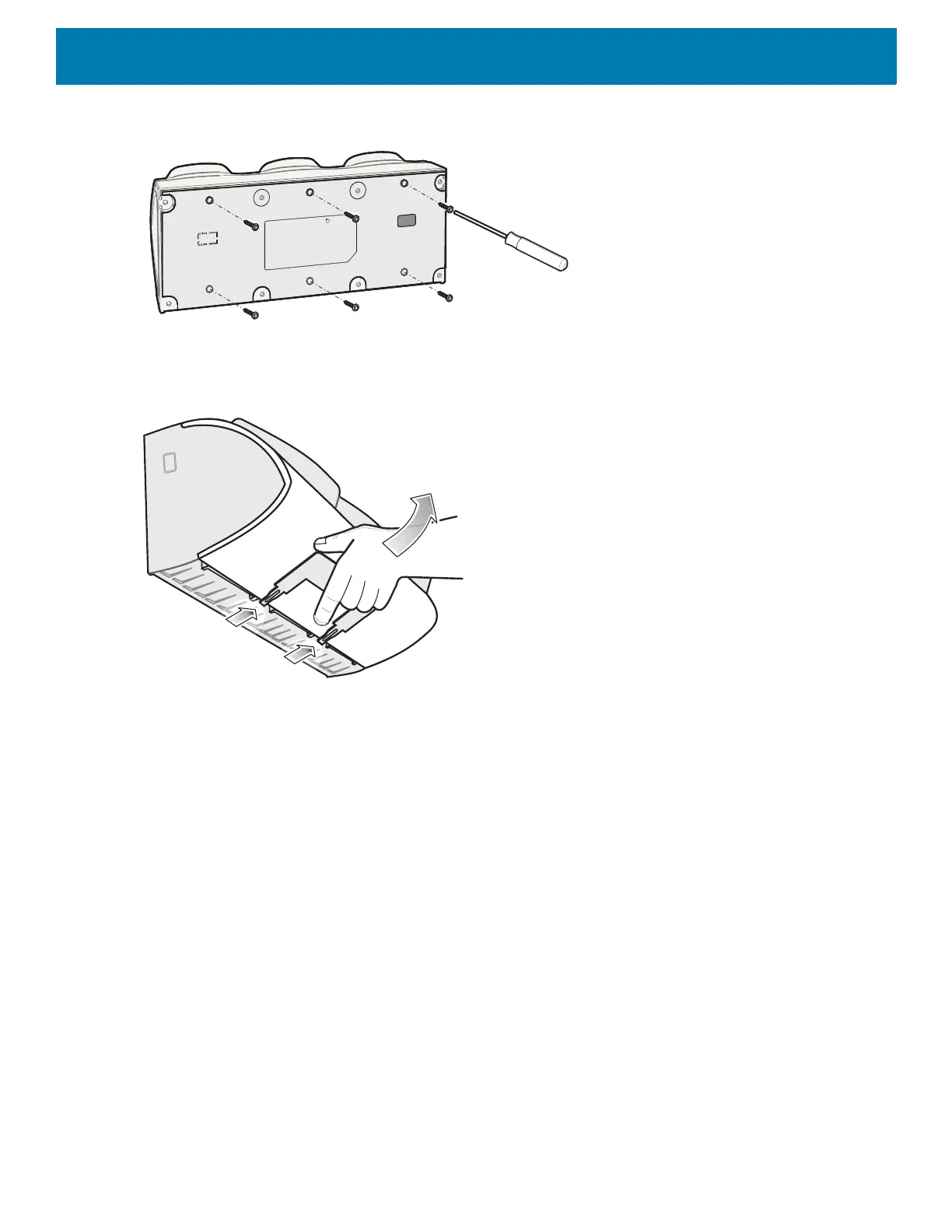

Figure 113 Three Slot Cradle - Securing the Back Cover
7. Insert the front cover removal tool into two slots, lever upwards and pull to remove front cover from cradle.
Figure 114 Three Slot Cradle - Removing Front Cover
8. Position the cradle on the dispenser wall and route all interconnect cables through the access holes in the
dispenser wall.
9. Fasten the cradle to the wall using eight screws (not supplied). Make sure to use additional wall mounting
hardware, as needed, for safe mounting, according to the wall type.
