Cradle Installation
149

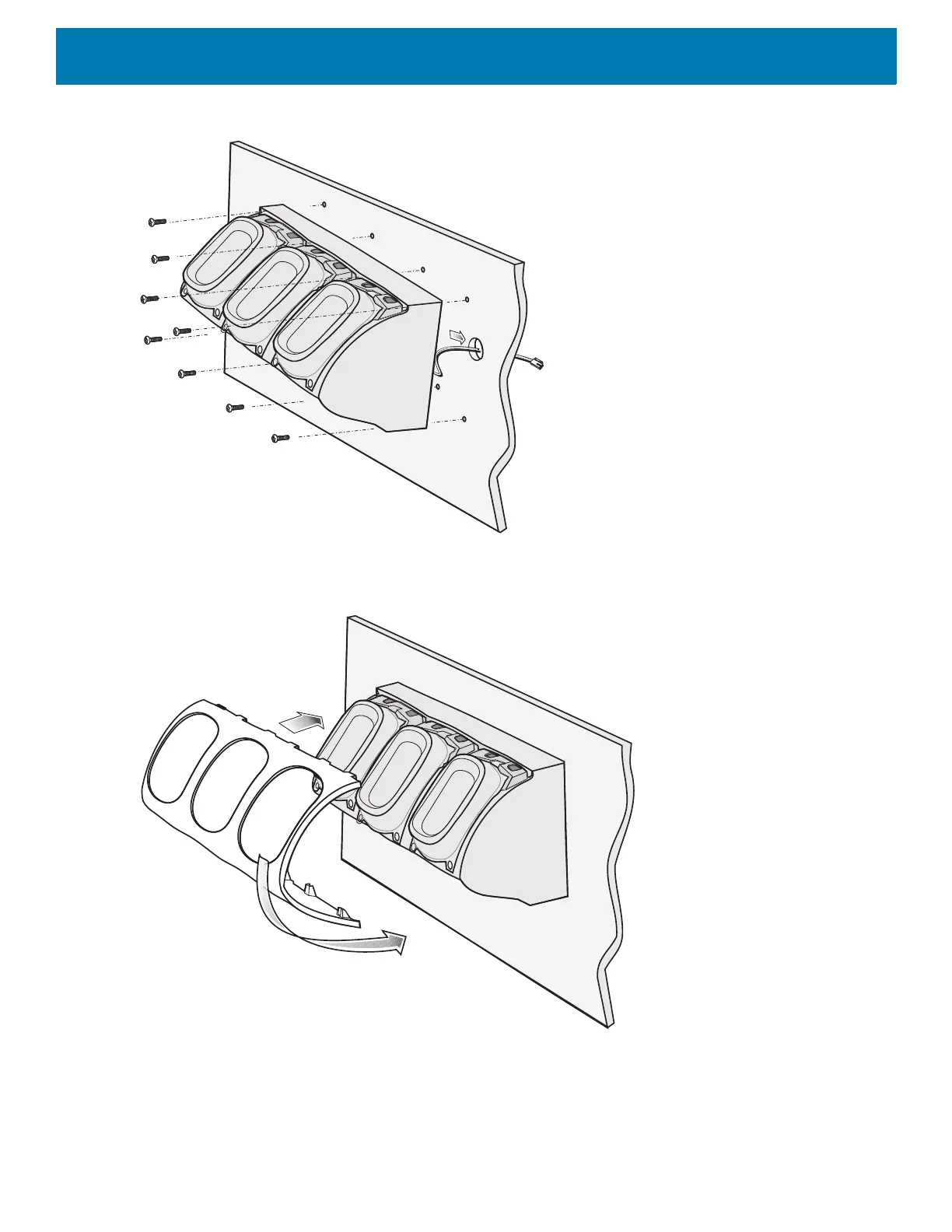

Figure 115 Three Slot Cradle - Fastening the Cradle to a Wall
10.Insert tabs on upper side of front cover into slots on cradle and rotate cover down until it snaps into place.
Figure 116 Three Slot Cradle - Connecting the Front Cover
11.Plug Power Extension Cable (p/n CBL-MC18-EXINT1-01) to interconnect cable (p/n 25-66431-01R).
12.Plug “Y” cable (CBL-DC-392A1-02) to Interconnect cables (p/n 25-66431-01R).
13.Plug “Y” cable (CBL-DC-392A1-02) to power supply unit.
