110 Z4Mplus and Z6Mplus User Guide
Troubleshooting
Printer Diagnostics
Pause Self Test
This self test can be used to provide the test
labels required when making adjustments to the

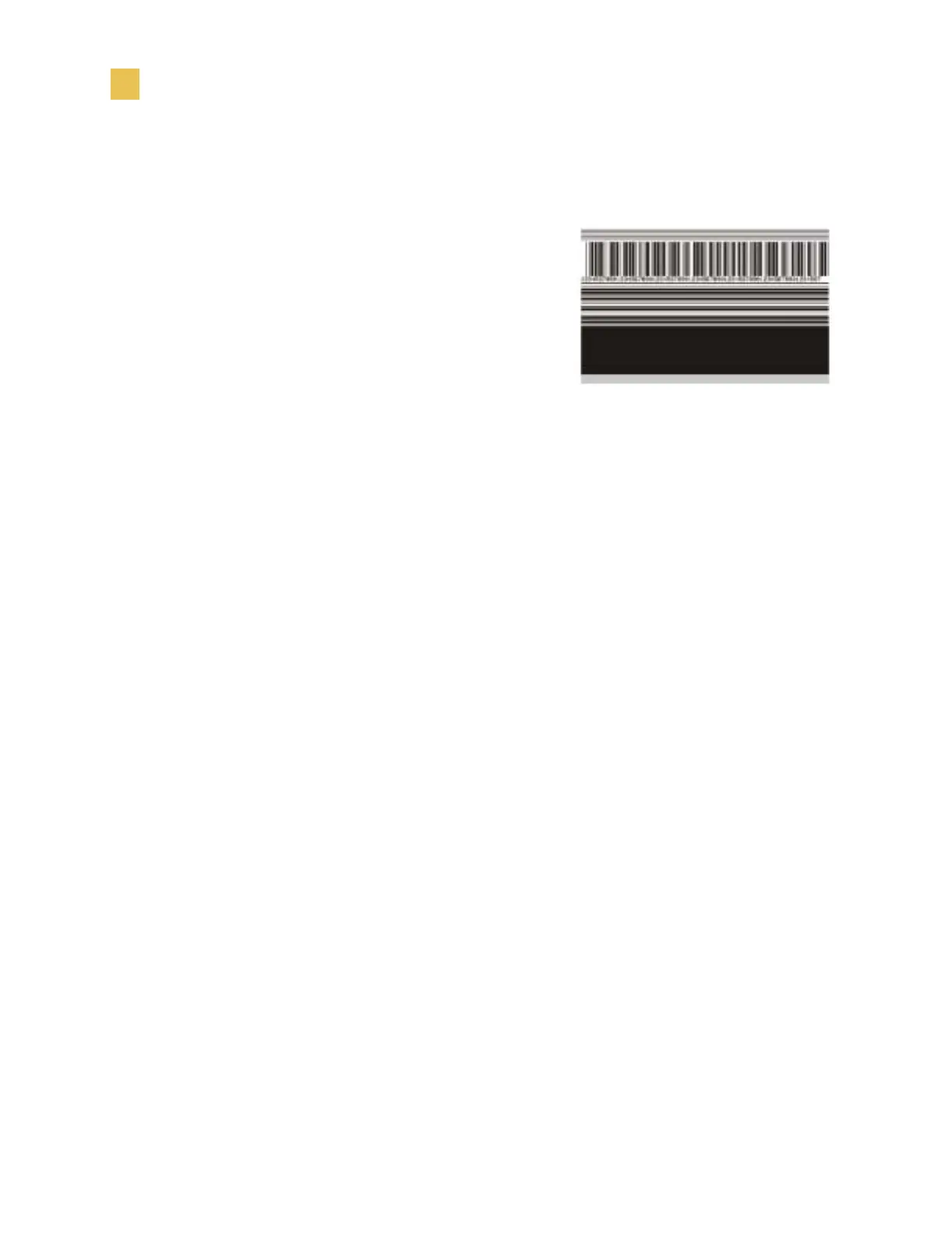

printers mechanical assemblies. See the sample
printout at right.
Perform the following procedure to
complete the Pause Self Test:
1. Turn the printer Off (O).
2. Press and hold PAUSE while turning the printer On (l).
3. Release PAUSE after the DATA light turns off (approximately five seconds).
The initial self test prints 15 labels at 2 in. (51 mm) per second, then
automatically pauses the printer. When PAUSE is pressed, an additional 15
labels print.
Pressing CANCEL while the printer is paused alters the self test. When
PAUSE is pressed, the printer prints 15 labels at 6 in. (152 mm) per second.
Pressing CANCEL again while the printer is paused alters the self test again.
When PAUSE is pressed, the printer prints 50 labels at 2 in. (51 mm) per
second.
Pressing CANCEL again while the printer is paused alters the self test a third
time. When PAUSE is pressed, the printer prints 50 labels at 6 in. (152 mm)
per second.
Pressing CANCEL again while the printer is paused alters the self test a
fourth time. When PAUSE is pressed, the printer prints 15 labels at the
printers maximum speed.
To exit this self test at any time, press and hold CANCEL.
