Printhead Pressure Adjustment
Printhead Pressure Adjustment
Refer to the illustration below.
This adjustment may be necessary if printing is too light on one side or if thick media
is used.
The pressure adjustment dials for the Z4Mplus each have four possible settings
designated by blocks of increasing size embossed on the print mechanism. The
smallest block (fully counterclockwise) is considered position 1 and the largest block
(fully clockwise) is considered position 4. The same is true for the Z6Mplus, except it
has 7 positions.

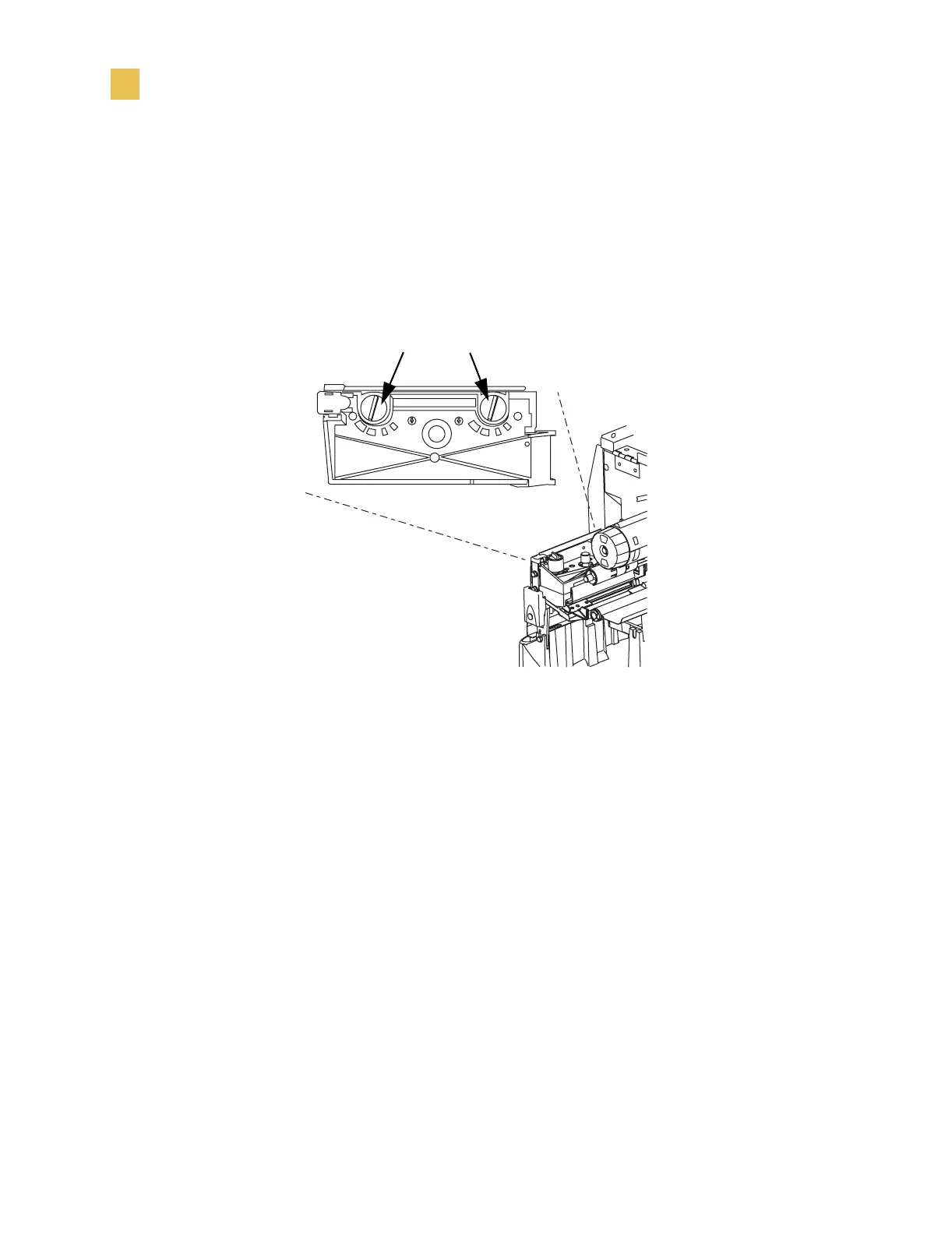

Pressure Adjustment Dials
R
L

Zebra Z4Mplus Specifications

General

Print Method	Thermal transfer or direct thermal
Resolution	203 dpi
Max Print Width	4.09 inches
Max Print Length	39 inches
Max Print Speed	10 inches per second
Memory	4 MB Flash, 8 MB DRAM
Interface	Parallel, Serial
Media Sensors	Reflective and transmissive
Media Width	0.79 inches to 4.5 inches
Media Length	0.38" (9.6 mm) to 39" (991 mm)
Ribbon Width	2 inches to 4.33 inches
Power Requirements	100-240 VAC, 50/60 Hz
Operating Temperature	40°F to 105°F
Storage Temperature	-40 to 140°F (-40 to 60°C)
Humidity	20 to 85% non-condensing
