46 Z4Mplus and Z6Mplus User Guide
Printer Basics
Load Roll Media

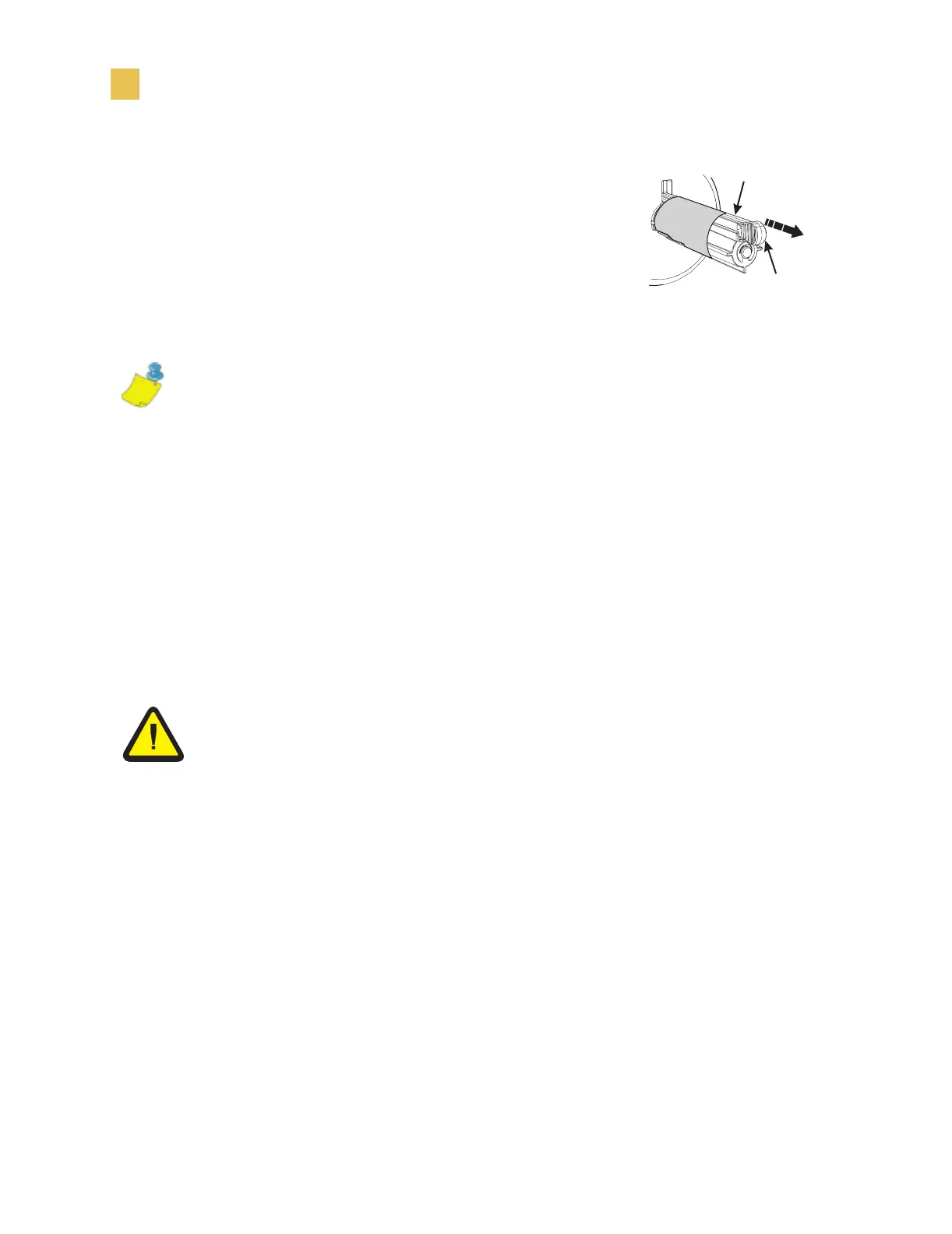

Liner Removal
1. Pull the liner slide toward you (see inset) until it stops
(about a third of the way down the liner take-up
spindle).
2. Slide the liner from the take-up spindle.
Rewind
Peel Mode
See the instructions below to load media in Rewind/Peel Mode:
Refer to the illustration on the next page.
1. Press the printhead open lever. The printhead assembly springs up.
2. Flip down the media supply guide.
3. Slide the media guide as far from the main frame as possible.
4. Place the roll of labels on the media supply hanger as shown.
5. Flip up the media supply guide.
6. Slide in the media supply guide until it just touches, but does not restrict, the edge
of the media.
7. Feed the labels under the dancer, through the slot in the transmissive sensor, and
under the ribbon sensor.
8. Pull approximately 36 in. (900 mm) of label through the front of the printer.
9. Remove the labels from the first 18 in. (450 mm) of media.
10.Ensure the media is against the back of the transmissive sensor. Slide in the media
guide until it touches, but does not restrict, the edge of the media.
Note • The liner slide moves back in place once the liner is removed.
Caution • Ensure printhead is fully open and engaged in the up position. Failure to
latch in the up position could result in the printhead falling on your hand during the
procedure.
Liner Slide Tab
Liner Slide
To Next Page
