Printer Basics
Load Roll Media
Z4Mplus and Z6Mplus User Guide 45

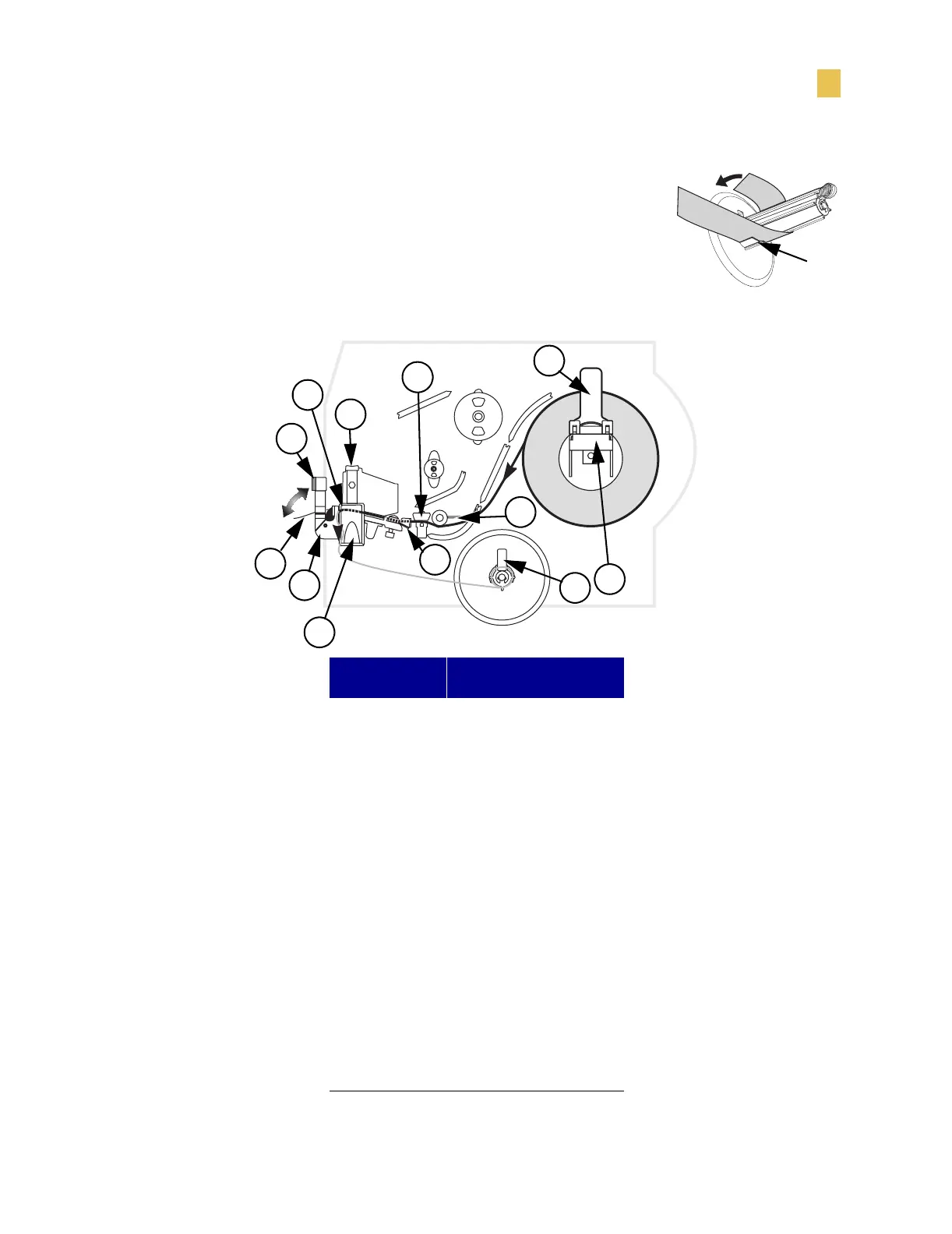

15.Slide the liner into the slot (see inset) in the spindle of the
liner take-up. Ensure the liner is resting against the back
plate of the spindle assembly.
16.Turn the spindle assembly counterclockwise a few times to
snug the liner.
17.If the printer is paused (the pause light is on), press
PAUSE to enable printing. Peeling starts automatically. Press FEED to test.
Number Description
1
Printhead Assembly
2
Transmissive Sensor
3
Label Supply Guide
4
Label Supply Hanger
5
Liner Take-Up
6
Dancer
7
Label Guide
8
Printhead Open Lever
9
Peel Assembly
10
Label
11
Peel Lever
12
Tear-Off/Peel/Off Bar
Slot
1
2
3
4
5
6
7
8
9
10
11
12

Zebra Z4Mplus Specifications

General

Print Method	Thermal transfer or direct thermal
Resolution	203 dpi
Max Print Width	4.09 inches
Max Print Length	39 inches
Max Print Speed	10 inches per second
Memory	4 MB Flash, 8 MB DRAM
Interface	Parallel, Serial
Media Sensors	Reflective and transmissive
Media Width	0.79 inches to 4.5 inches
Media Length	0.38" (9.6 mm) to 39" (991 mm)
Ribbon Width	2 inches to 4.33 inches
Power Requirements	100-240 VAC, 50/60 Hz
Operating Temperature	40°F to 105°F
Storage Temperature	-40 to 140°F (-40 to 60°C)
Humidity	20 to 85% non-condensing
