Printer Setup
Rewind Media Alignment
Rewind Media Alignment
The instructions below apply if the printer has a rewind option. Refer to the

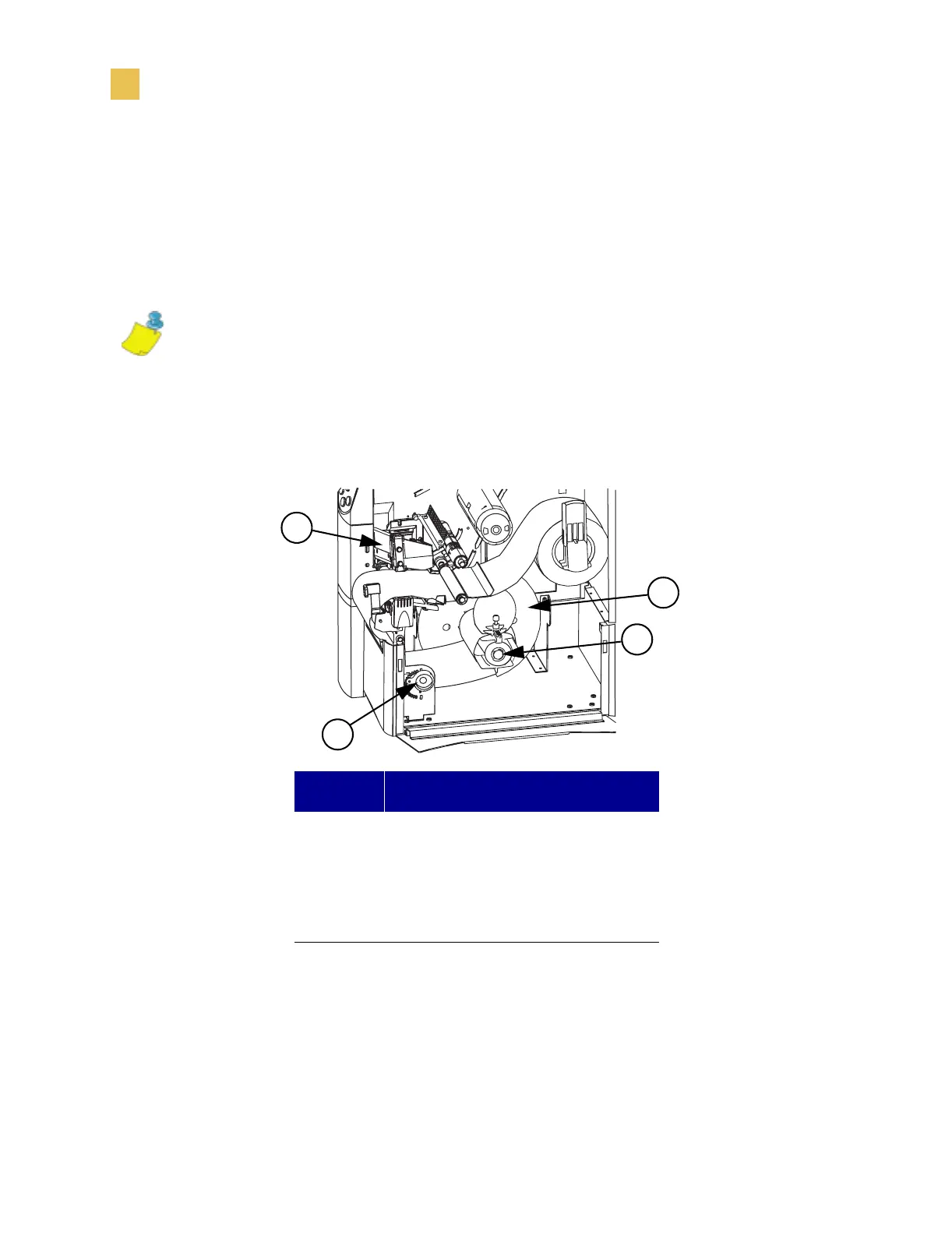

illustration below.
Do the adjustments in the order given. Do only what is needed to solve the problem.
1. Turn the adjustment dial clockwise to align the media toward the mainframe.
2. Turn the dial counter clockwise to align the media away from the mainframe.
Note • The liner should be installed flush against the backplate of the take-up
spindle to prevent the media/backing from winding too loosely.
Number Description
1
Rewind Spindle Backplate
2
Rewind Spindle
3
Adjustment Dial
4
Printhead Assembly
1
2
4
3

Zebra Z4Mplus Specifications

General

Print Method	Thermal transfer or direct thermal
Resolution	203 dpi
Max Print Width	4.09 inches
Max Print Length	39 inches
Max Print Speed	10 inches per second
Memory	4 MB Flash, 8 MB DRAM
Interface	Parallel, Serial
Media Sensors	Reflective and transmissive
Media Width	0.79 inches to 4.5 inches
Media Length	0.38" (9.6 mm) to 39" (991 mm)
Ribbon Width	2 inches to 4.33 inches
Power Requirements	100-240 VAC, 50/60 Hz
Operating Temperature	40°F to 105°F
Storage Temperature	-40 to 140°F (-40 to 60°C)
Humidity	20 to 85% non-condensing
