48 Z4Mplus and Z6Mplus User Guide
Printer Basics
Load Roll Media

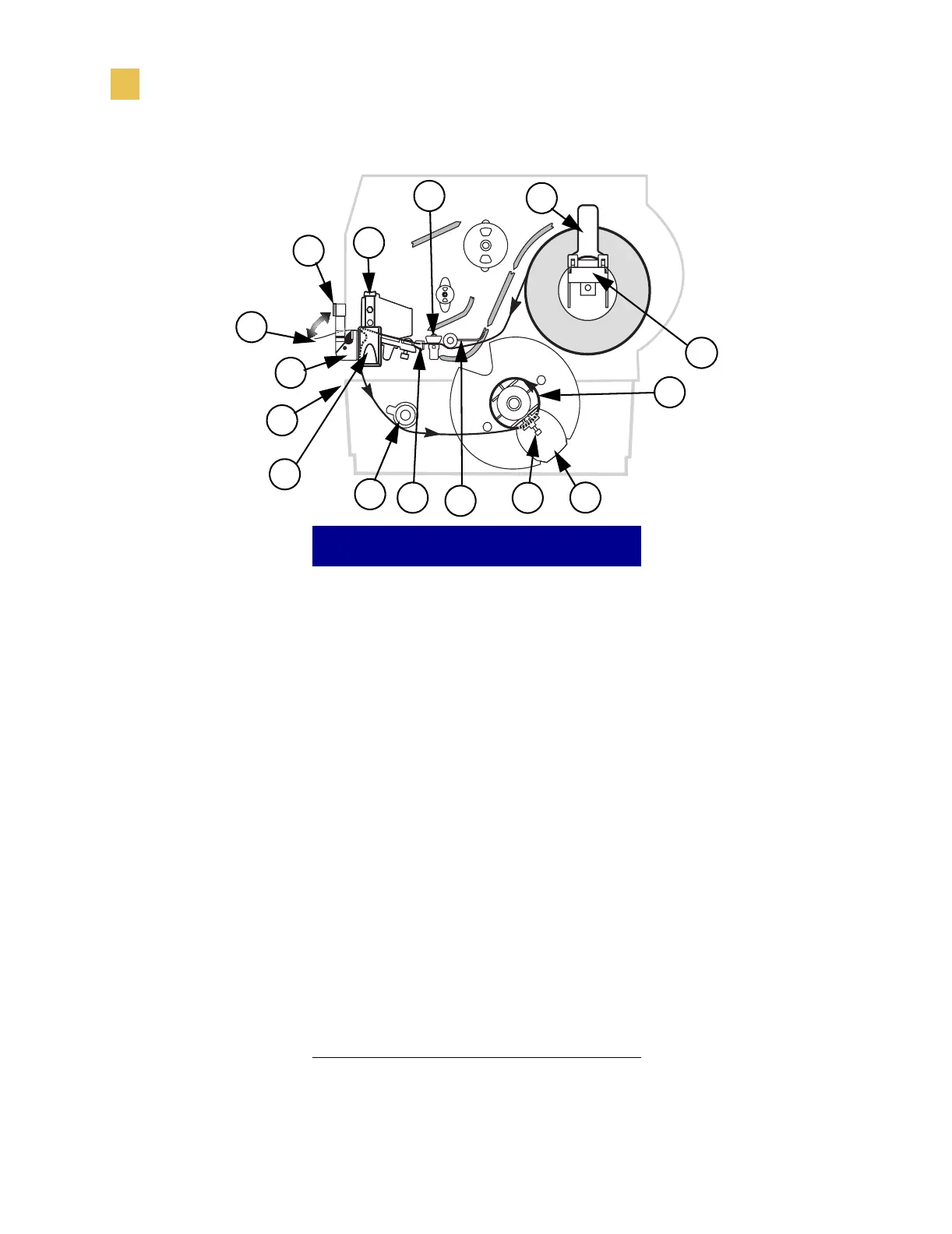

Number Description
1
Printhead Assembly
2
Transmissive Sensor
3
Label Supply Guide
4
Label Supply Hanger
5
Rewind Spindle
6
Rewind Label Guide
7
Thumbscrew
8
Dancer
9
Label Guide
10
Rewind Label Spindle
11
Printhead Open Lever
12
Peel Assembly
13
Label
14
Rewind Base Assembly
15
Peel Lever
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
