118 Zebra ZXP Series 1 Card Printer Service Manual P1061942-001
5: Replacement Procedures
Procedures
Step 3. Lower and latch the Lid.

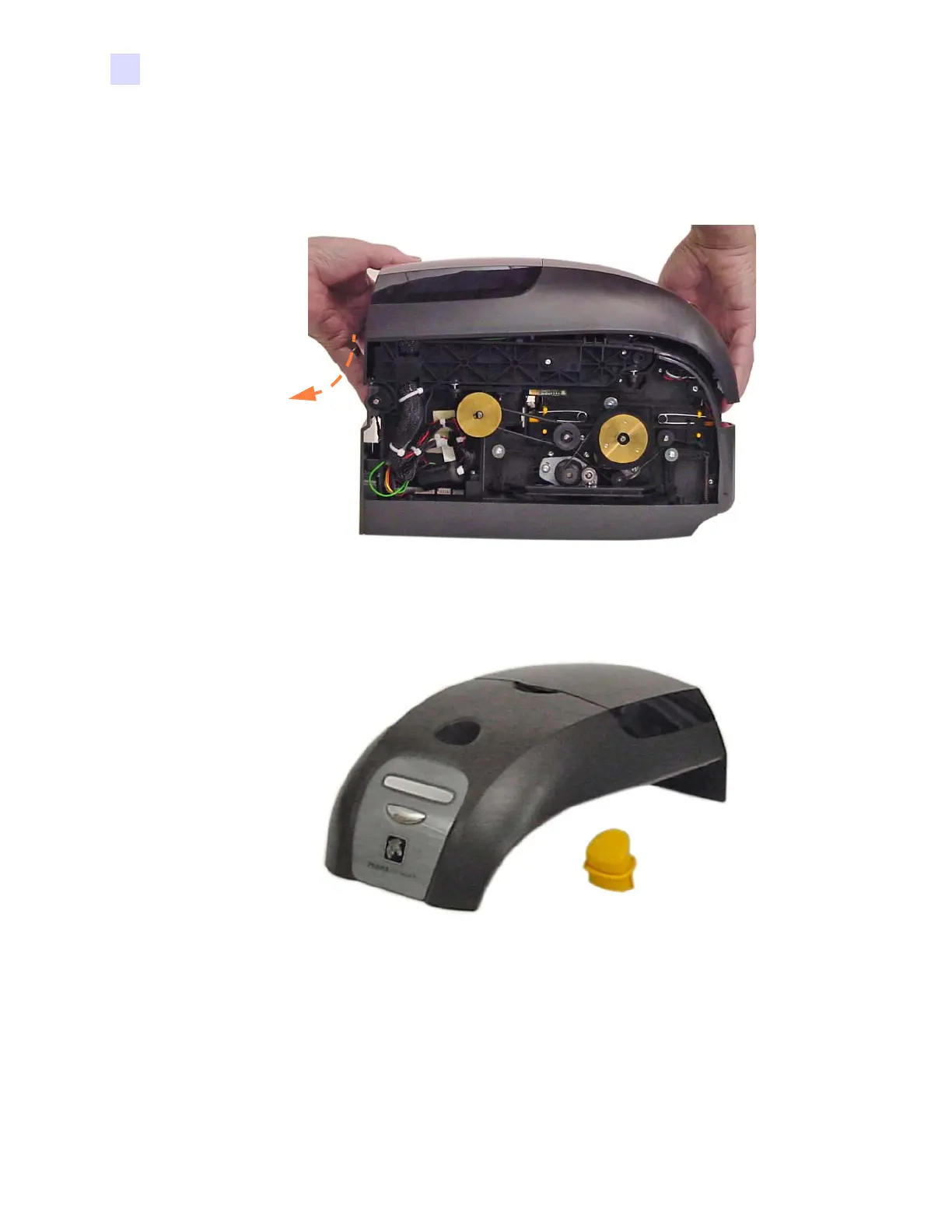

Step 4. With one hand, grasp the front lip of the Top Cover. With the other hand, press down
and to the rear with enough force to “pop” the Top Cover loose.
Step 5. Remove the Top Cover and Button.
Step 6. Set the Top Cover and Button aside.
