Zebra ZXP 1 Series User Manual

5: Replacement Procedures
Procedures
P1061942-001 Zebra ZXP Series 1 Card Printer Service Manual 173
5.6.34 Mag Encoder Assembly - Head and Sensor

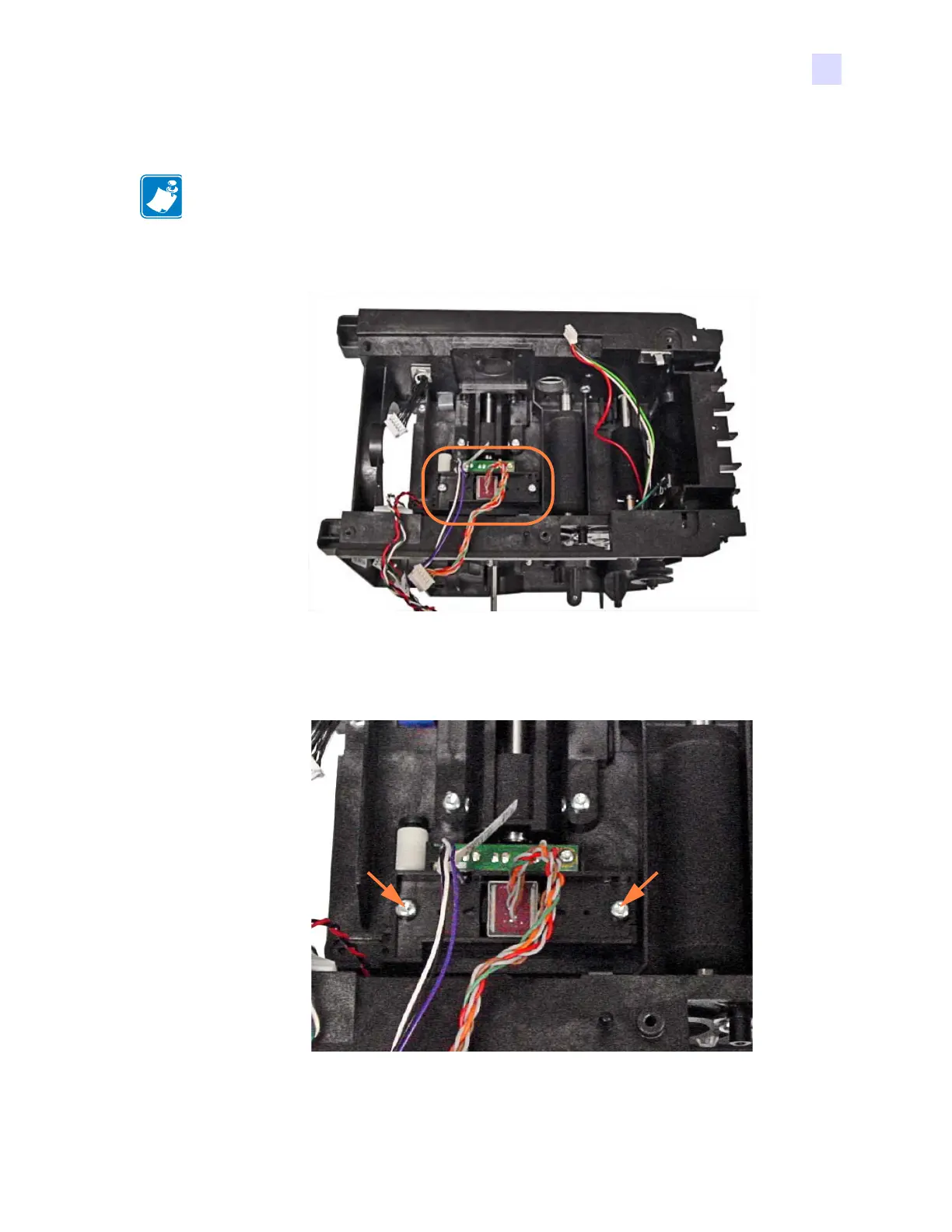

Step 1. Locate the Mag Encoder Assembly (circled below).
Step 2. With a TORX T10 driver, remove the two screws (SCR, PLAST, 4-.37L, 4.0 in-lb)
holding the Mag Encoder Assembly in place.
NOTE • This procedure uses Spare Kit # P1031925-011: KIT, MAG HEAD.

Zebra ZXP 1 Series Specifications

General

Resolution	300 dpi
Connectivity	USB 2.0
Power Requirements	100-240 VAC, 50-60 Hz
Print Technology	Dye sublimation
Card Capacity	100 cards (input hopper)
Card Size	CR-80 ISO 7810
Dimensions	368 mm (D)
Memory	32 MB
Operating Temperature	15°C to 30°C
Operating Humidity	20% to 65% non-condensing
Card Thickness	0.3mm - 1.06mm
