178 Zebra ZXP Series 1 Card Printer Service Manual P1061942-001
5: Replacement Procedures
Procedures
5.6.38 Platen Roller and Exit Roller

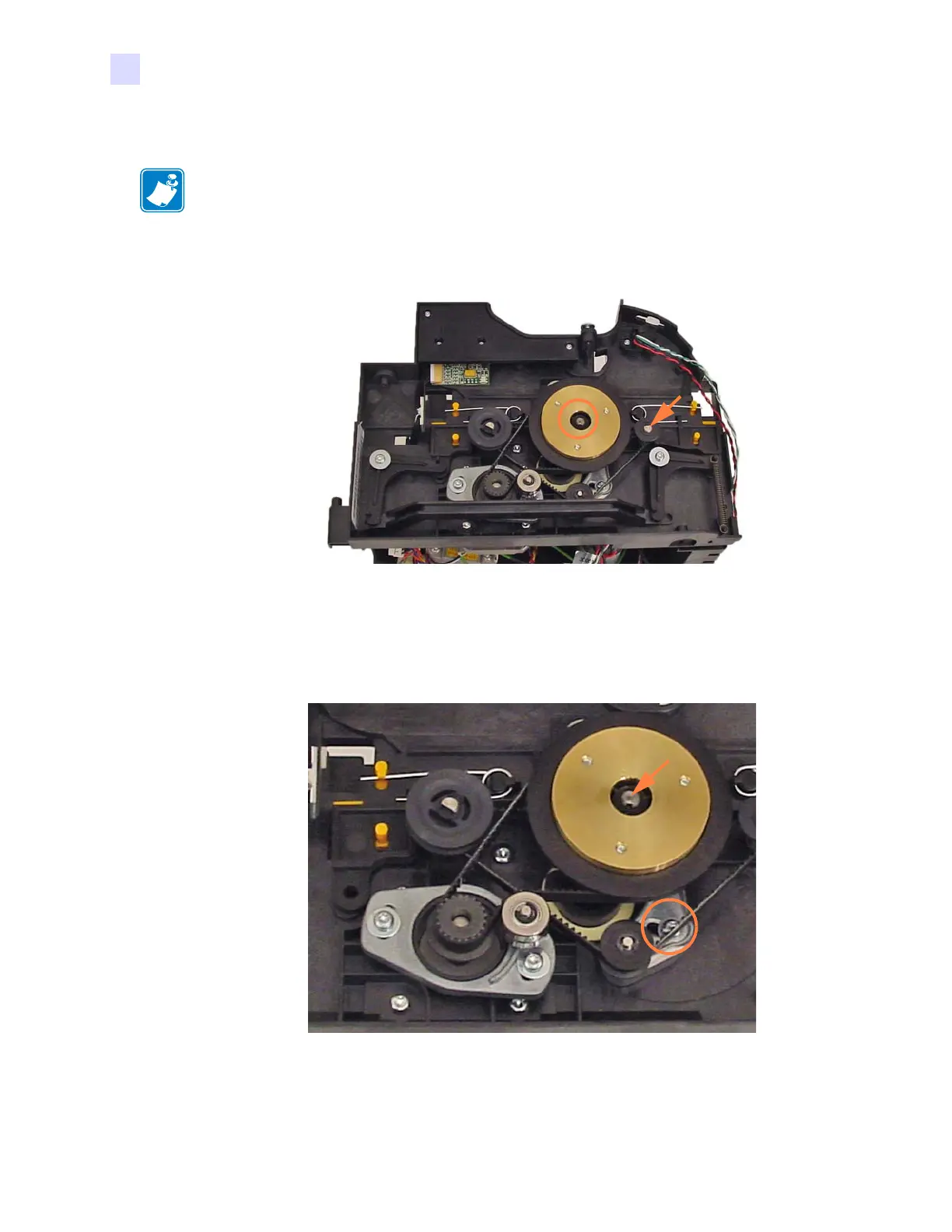

Step 1. Locate the Platen Roller (circled below) and the Exit Roller (arrow below).
Step 2. If not already done, remove the left-side Linkage; see Section 5.6.29.
Step 3. With a TORX T10 driver, loosen the screw (7.0 in-lb) that holds the Tensioner
in place; circled below.
Step 4. Remove the belt.
NOTE • This procedure uses Spare Kit # P1031925-228: KIT, PLATENS FOR PRINT
ENGINE.

Zebra ZXP 1 Series Specifications

General

Resolution	300 dpi
Connectivity	USB 2.0
Power Requirements	100-240 VAC, 50-60 Hz
Print Technology	Dye sublimation
Card Capacity	100 cards (input hopper)
Card Size	CR-80 ISO 7810
Dimensions	368 mm (D)
Memory	32 MB
Operating Temperature	15°C to 30°C
Operating Humidity	20% to 65% non-condensing
Card Thickness	0.3mm - 1.06mm
