5: Replacement Procedures
Procedures
P1061942-001 Zebra ZXP Series 1 Card Printer Service Manual 109
Replacement

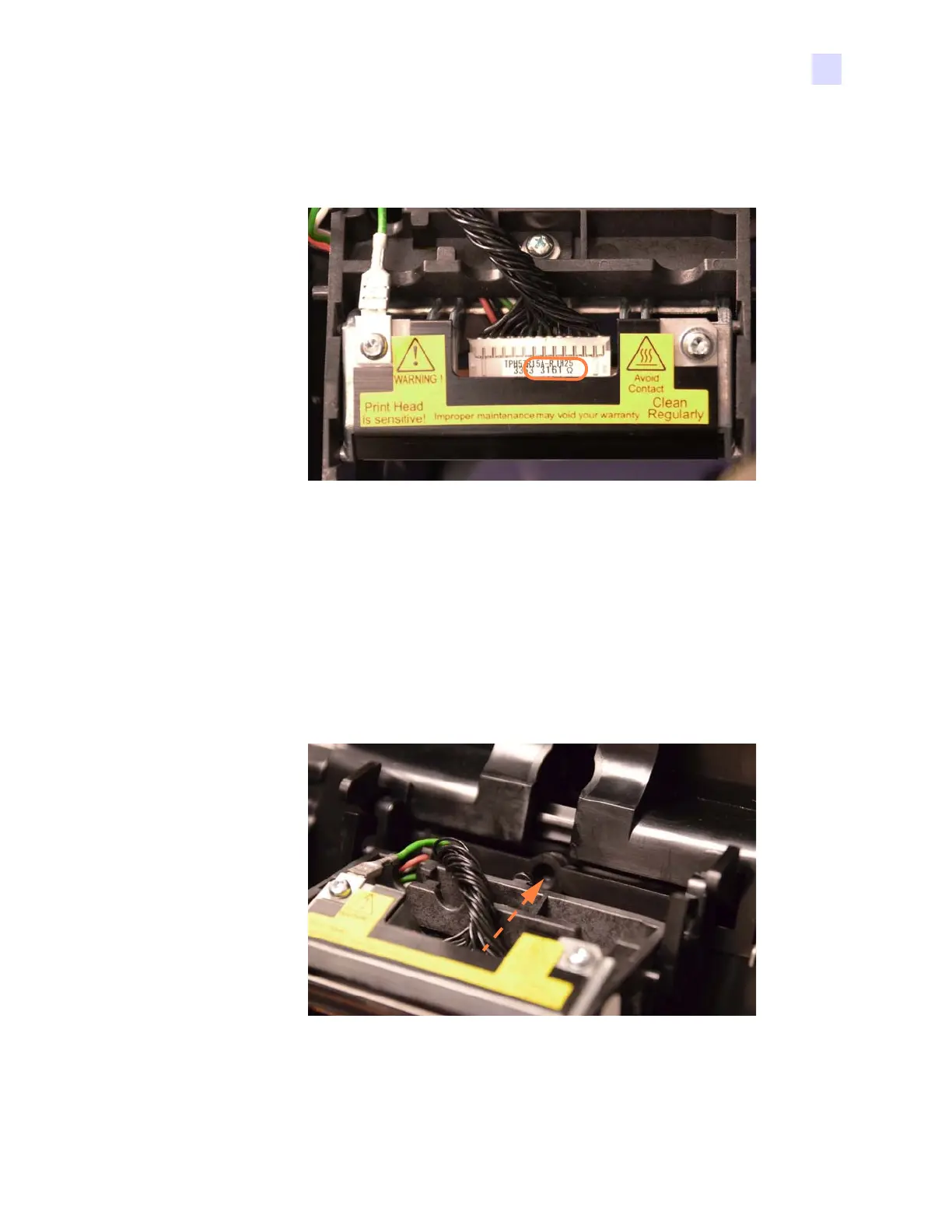

Step 1. Record the resistance (e.g., 3161 Ω circled below) of the new Printhead.
Step 2. Connect the 4-wire Color Ribbon Sensor.
Step 3. Connect the printhead data and power cable. Note that the connector is keyed. Use a
small flat-blade screwdriver to guide the connector into place.
Step 4. Connect the green ground wire.
Step 5. Insert the 4-wire connector back through the hole in the frame. Failure to do so
may cause the printhead frame to be broken when the Lid is closed.
Step 6. Push the printhead alignment pin into the alignment hole (arrow below).
Step 7. Press in and downward, lowering the Printhead into place.
Step 8. The Printhead installation is complete.

Zebra ZXP 1 Series Specifications

General

Resolution	300 dpi
Connectivity	USB 2.0
Power Requirements	100-240 VAC, 50-60 Hz
Print Technology	Dye sublimation
Card Capacity	100 cards (input hopper)
Card Size	CR-80 ISO 7810
Dimensions	368 mm (D)
Memory	32 MB
Operating Temperature	15°C to 30°C
Operating Humidity	20% to 65% non-condensing
Card Thickness	0.3mm - 1.06mm
