108 Zebra ZXP Series 1 Card Printer Service Manual P1061942-001
5: Replacement Procedures
Procedures

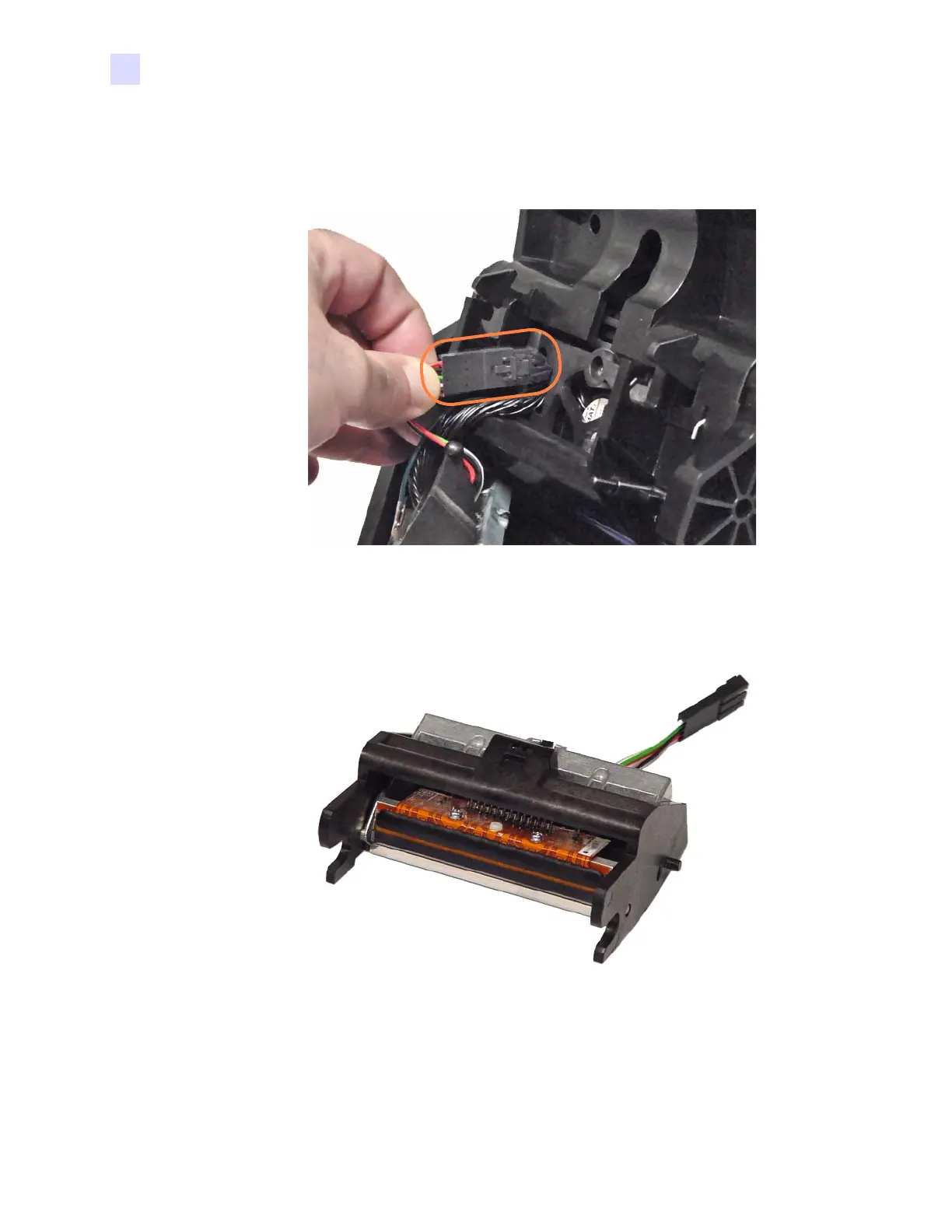

Step 8. Disconnect the 4-wire Color Ribbon Sensor (circled below). Do not let the 4-wire
connector go into the access hole -- it is difficult to retrieve. Note that this sensor
connects to J5 on the Main
PCBA.
Step 9. Disconnect the green ground wire.
Step 10. Remove the Printhead Assembly.

Zebra ZXP 1 Series Specifications

General

Resolution	300 dpi
Connectivity	USB 2.0
Power Requirements	100-240 VAC, 50-60 Hz
Print Technology	Dye sublimation
Card Capacity	100 cards (input hopper)
Card Size	CR-80 ISO 7810
Dimensions	368 mm (D)
Memory	32 MB
Operating Temperature	15°C to 30°C
Operating Humidity	20% to 65% non-condensing
Card Thickness	0.3mm - 1.06mm
