5: Replacement Procedures

Procedures

P1061942-001 Zebra ZXP Series 1 Card Printer Service Manual 137

5.6.19 Flipper Module

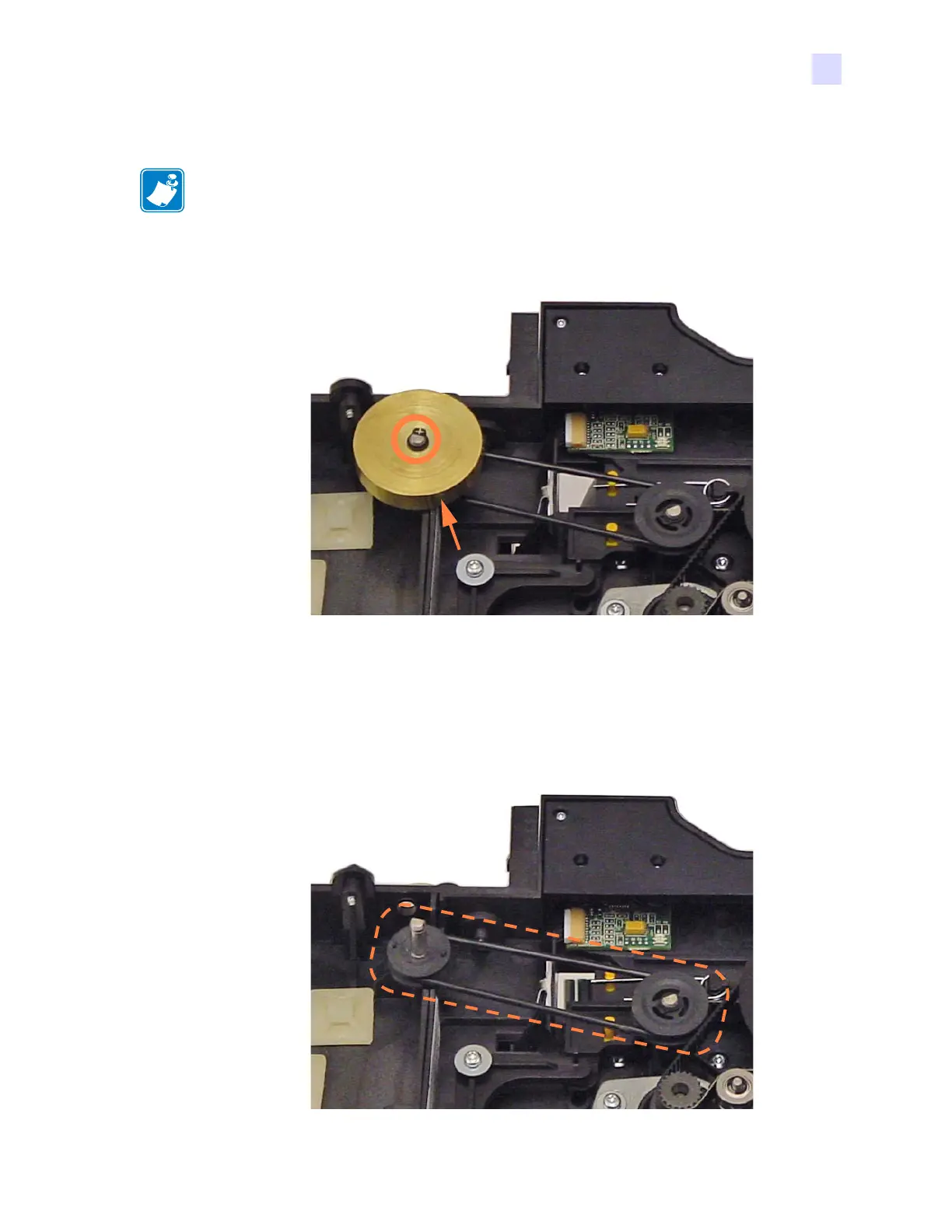

Step 1. If the Mag Encoder option is installed, remove the Inertia Wheel.

a. Remove the retaining clip; circled above.

b. With a 0.9 mm Hex driver, remove the set screw (7.0 in-lb); arrow above.

c. Slide the Inertia Wheel off the shaft.

Step 2. Slip the belt (circled below) off the pulleys.

NOTE • This procedure uses Spare Kit # P1031925-076: KIT, FLIPPER ASSEMBLY; and

P1031925-233, KIT CARRIER AND DRIVE FOR FLIPPER.
