5: Replacement Procedures
Procedures
P1061942-001 Zebra ZXP Series 1 Card Printer Service Manual 175
5.6.35 Mag Sensor

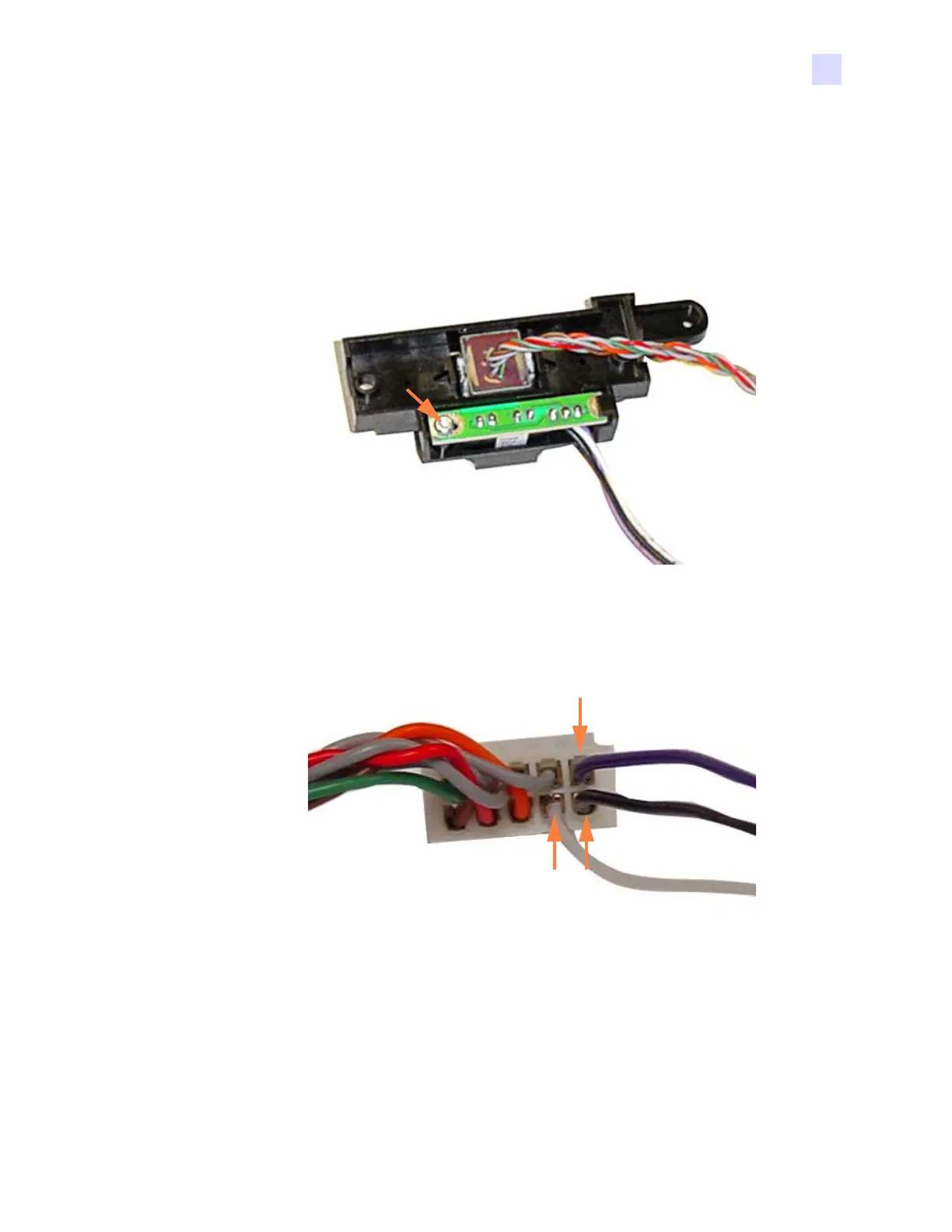

Step 1. With the Mag Encoder Assembly removed (Section 5.6.34):
a. With a TORX 7 driver, remove the screw (SCR, PLAST, 2-.25, 2.5 in-lb)
holding the Mag Sensor in place.
b. Disconnect the three sensor wires (arrows below) from the Mag
Encoder connector.
Step 2. Remove the Mag Sensor.

Zebra ZXP 1 Series Specifications

General

Resolution	300 dpi
Connectivity	USB 2.0
Power Requirements	100-240 VAC, 50-60 Hz
Print Technology	Dye sublimation
Card Capacity	100 cards (input hopper)
Card Size	CR-80 ISO 7810
Dimensions	368 mm (D)
Memory	32 MB
Operating Temperature	15°C to 30°C
Operating Humidity	20% to 65% non-condensing
Card Thickness	0.3mm - 1.06mm
