124 Zebra ZXP Series 1 Card Printer Service Manual P1061942-001
5: Replacement Procedures
Procedures
5.6.11 Bottom Cover
Step 1. Turn the printer over, bottom-side up.
Step 2. With a flat-blade screwdriver, carefully pry off the four rubber feet (they are held
in place with adhesive).
Step 3. With a TORX T10 driver, remove the four screws (SCR, PLAST, 4-.37L,7.0 in-lb);

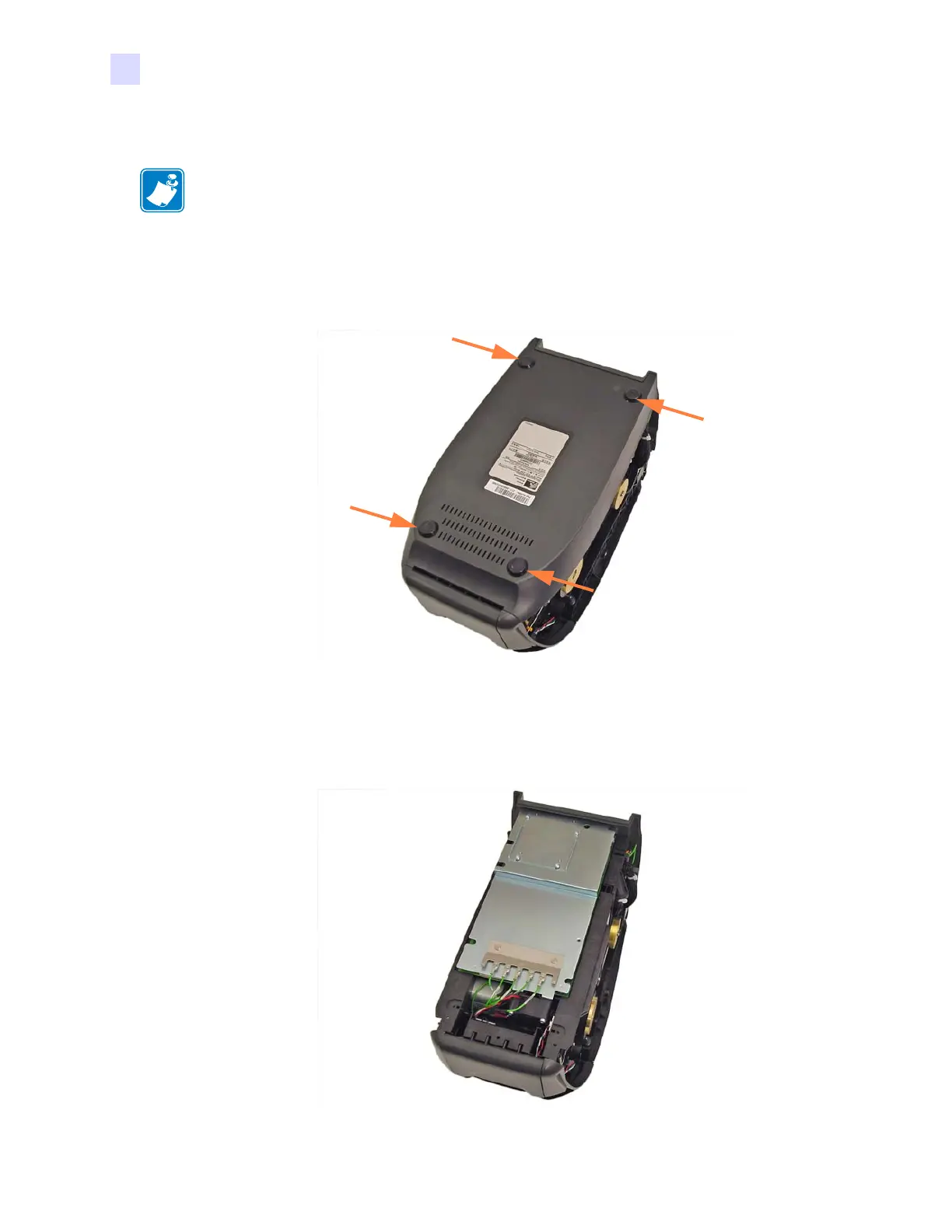

see arrows above.
Step 4. Remove the Bottom Cover.
NOTE • This procedure uses Spare Kit # P1031925-046: KIT, FEET FOR PRINTER.
