5: Replacement Procedures

Procedures

P1061942-001 Zebra ZXP Series 1 Card Printer Service Manual 133

5.6.16 PCBA Fan

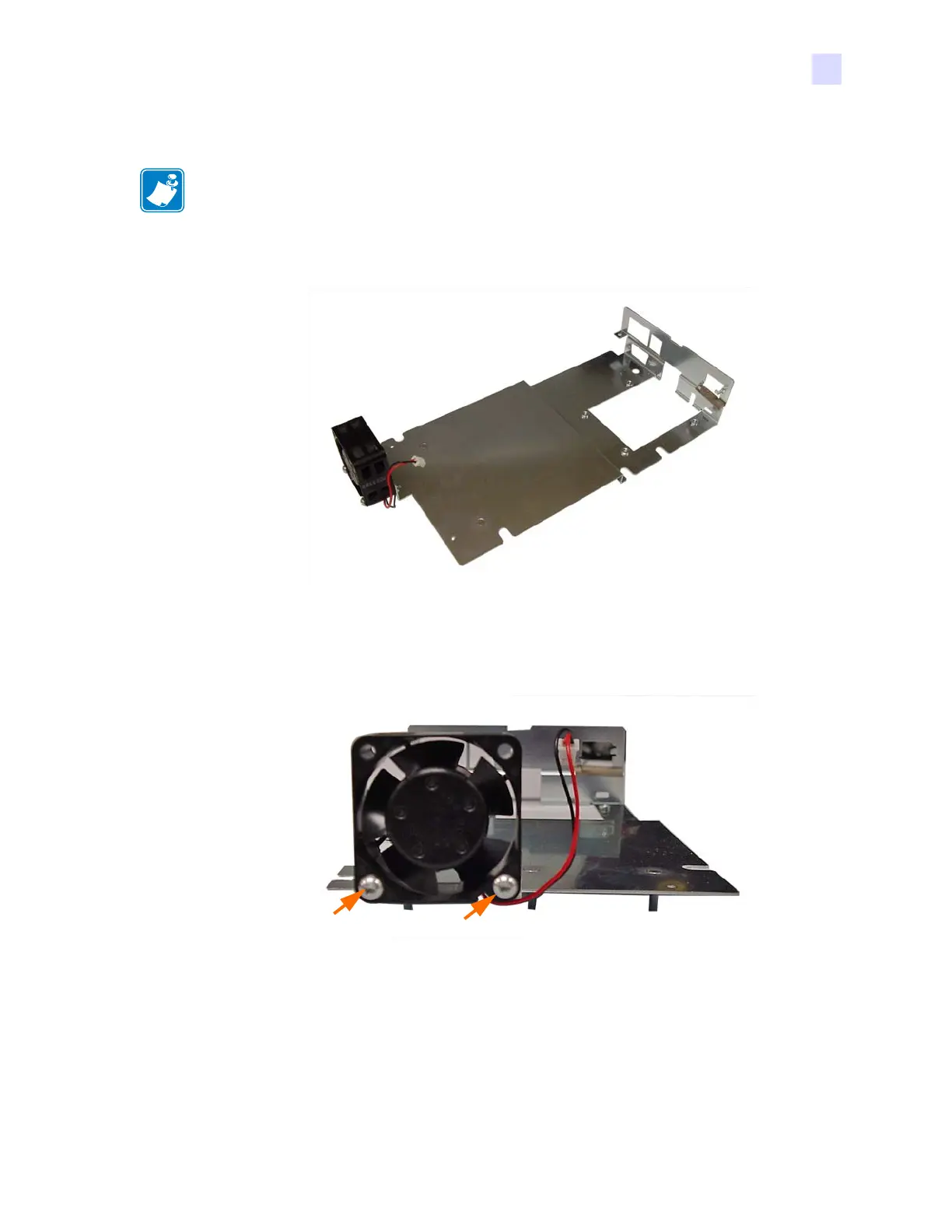

Step 1. With the Ground Plate removed, you can remove the PCBA Fan.

Step 2. With a TORX T10 driver, remove the two screws (SCR M3x25, 5.5 in-lb)

holding the Fan in place. Note the orientation of the Fan.

Step 3. Set the Fan aside

NOTE • This procedure uses Spare Kit # P1031925-071: KIT, COOLING FANS.
