114 Zebra ZXP Series 1 Card Printer Service Manual P1061942-001

5: Replacement Procedures

Procedures

5.6.2 Ribbon Sensor

Step 1. Remove the Printhead; see Section 5.6.1.

Step 2. With a TORX T6 driver, remove the screw (SCR M2x10MM, 4.0 in-lb) that

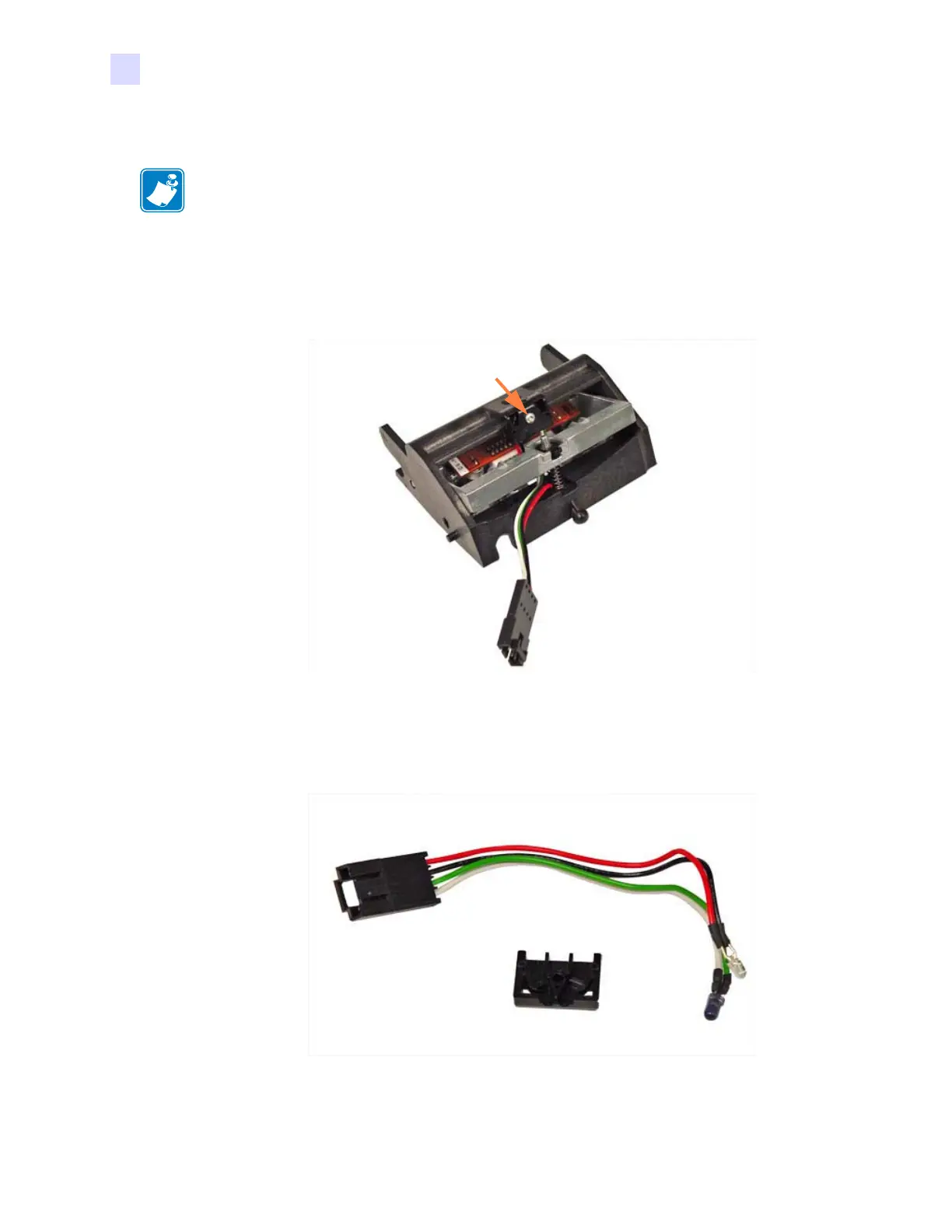

holds the sensor and housing in place; see arrow below.

Step 3. Slide the sensor out of the housing.

Step 4. Remove the Ribbon Sensor. Note that this sensor connects to J5 on the Main

PCBA.

NOTE • This procedure uses Spare Kit # P1031925-012: KIT, RIBBON SENSOR.
