Zebra ZXP 1 Series - 5.6.17 Lid

134 Zebra ZXP Series 1 Card Printer Service Manual P1061942-001
5: Replacement Procedures
Procedures
5.6.17 Lid

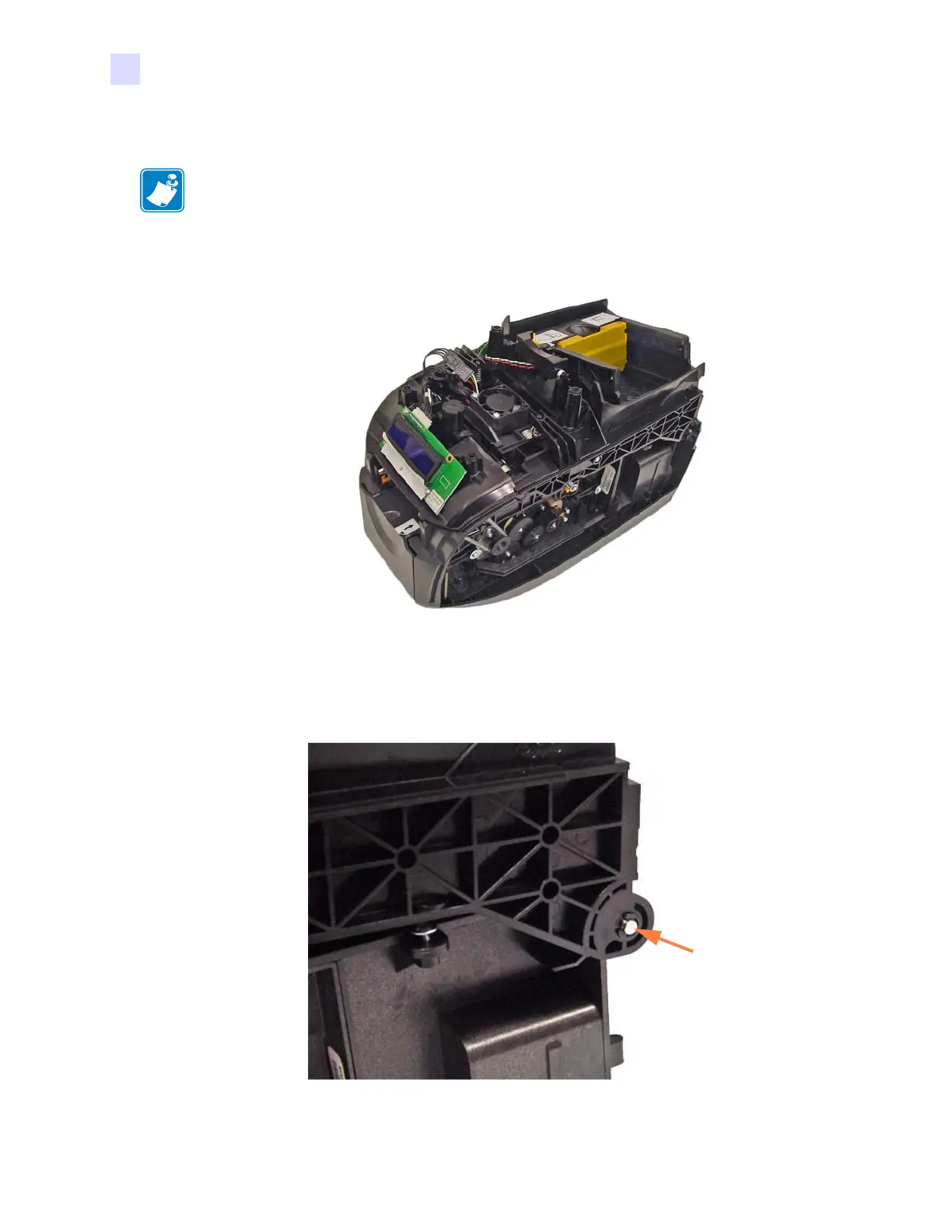

Step 1. Locate the Lid.
Step 2. If not already done, remove the Printhead; see Section 5.6.1.
Step 3. Remove a retaining clip (arrow below) from one end of the shaft.
NOTE • This procedure uses Spare Kit # P1031925-235: KIT, INNER TOP ASSEMBLY.
