Zebra ZXP 1 Series User Manual

86 Zebra ZXP Series 1 Card Printer Service Manual P1061942-001
3: Theory of Operation
Block Diagram

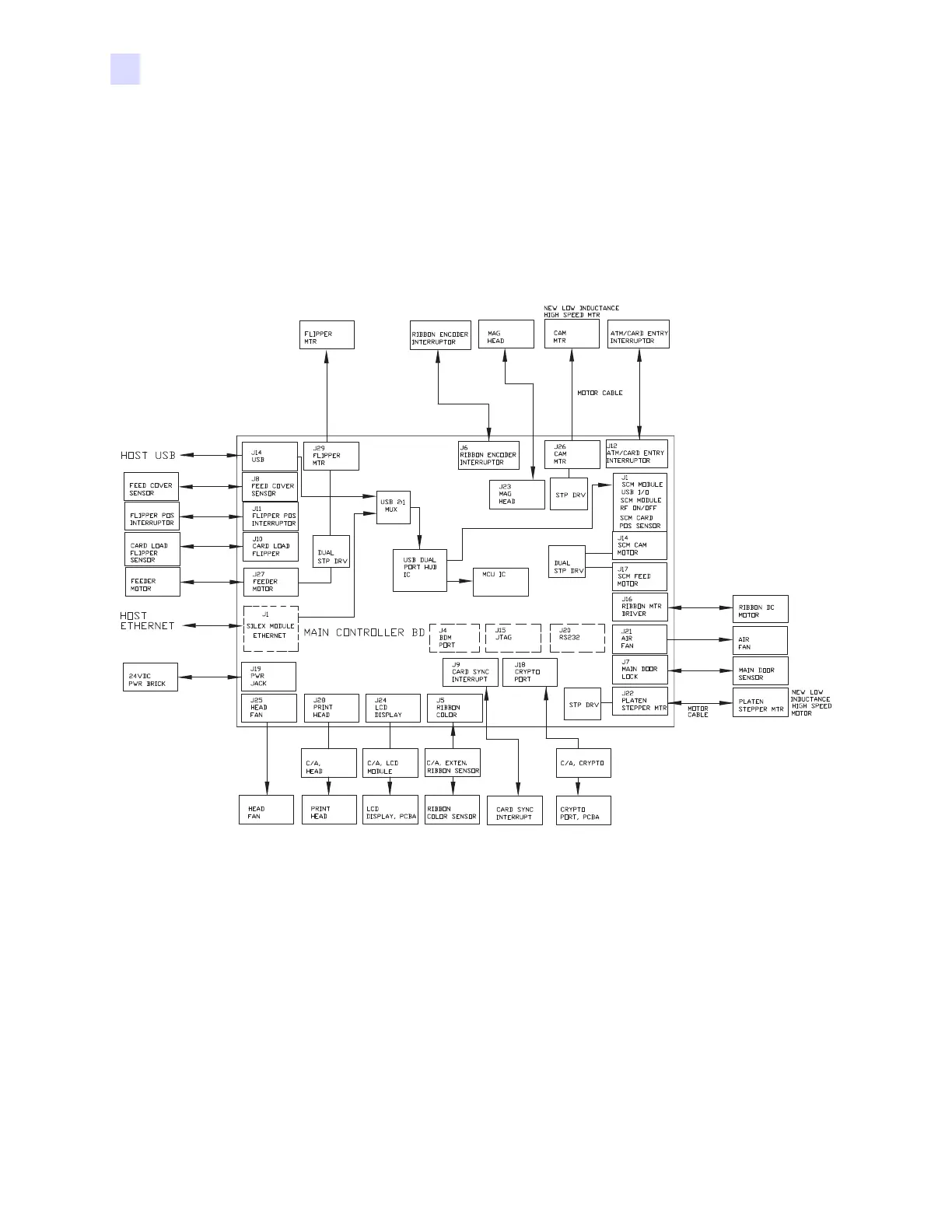

3.5 Block Diagram
Most of the circuitry in the ZXP Series 1 Card Printer is on the Main PCBA. Since the Main
Controller PCBA is not a serviceable unit, circuit analysis to the component level is pointless.
Below is a block diagram of the functional circuits of the Printer; the block diagram also
shows how signals are passed to and from the Main Controller PCBA to the rest of
the Printer.

Zebra ZXP 1 Series Specifications

General

Resolution	300 dpi
Connectivity	USB 2.0
Power Requirements	100-240 VAC, 50-60 Hz
Print Technology	Dye sublimation
Card Capacity	100 cards (input hopper)
Card Size	CR-80 ISO 7810
Dimensions	368 mm (D)
Memory	32 MB
Operating Temperature	15°C to 30°C
Operating Humidity	20% to 65% non-condensing
Card Thickness	0.3mm - 1.06mm
