106 Zebra ZXP Series 1 Card Printer Service Manual P1061942-001
5: Replacement Procedures
Procedures
5.6 Procedures
5.6.1 Printhead Assembly
Step 1. Turn the printer off, and disconnect the power cord.
Step 2. Press the access button in, and raise the Lid.

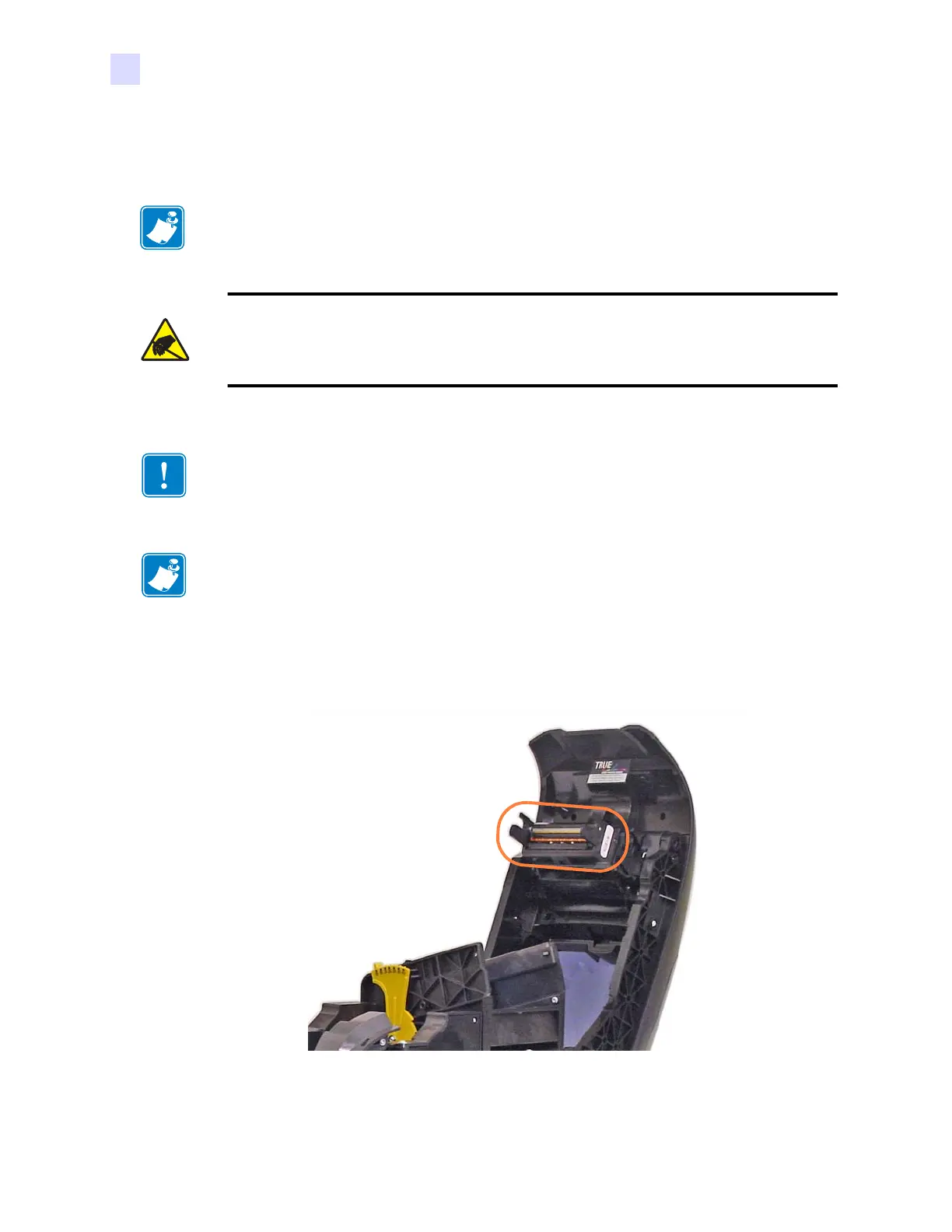

Step 3. Locate the Printhead Assembly (circled above).
NOTE • This procedure uses Spare Kit # P1031925-070: KIT, PRINTHEAD.
Electrostatic Discharge Caution • The Printhead is extremely susceptible to
Electrostatic Discharge (ESD) damage. Do not touch the bottom surface of the Printhead.
The replacement must be performed at a static-free work station, an anti-static wrist strap
must be worn and properly terminated, or other appropriate protection must be used.
Important • This procedure describes replacing the Printhead Assembly. The Printhead
Assembly is supplied with components in correct alignment with each other. These
alignments are critical to proper operation of the printer. Do not deviate from the procedure
given here, do not loosen or tighten any screws except those specifically noted in this
procedure, and do not attempt to adjust any part of the Printhead Assembly.
NOTE • The Printhead Assembly can be replaced without removing any other parts of
the printer.

Zebra ZXP 1 Series Specifications

General

Resolution	300 dpi
Connectivity	USB 2.0
Power Requirements	100-240 VAC, 50-60 Hz
Print Technology	Dye sublimation
Card Capacity	100 cards (input hopper)
Card Size	CR-80 ISO 7810
Dimensions	368 mm (D)
Memory	32 MB
Operating Temperature	15°C to 30°C
Operating Humidity	20% to 65% non-condensing
Card Thickness	0.3mm - 1.06mm
