1: General Description

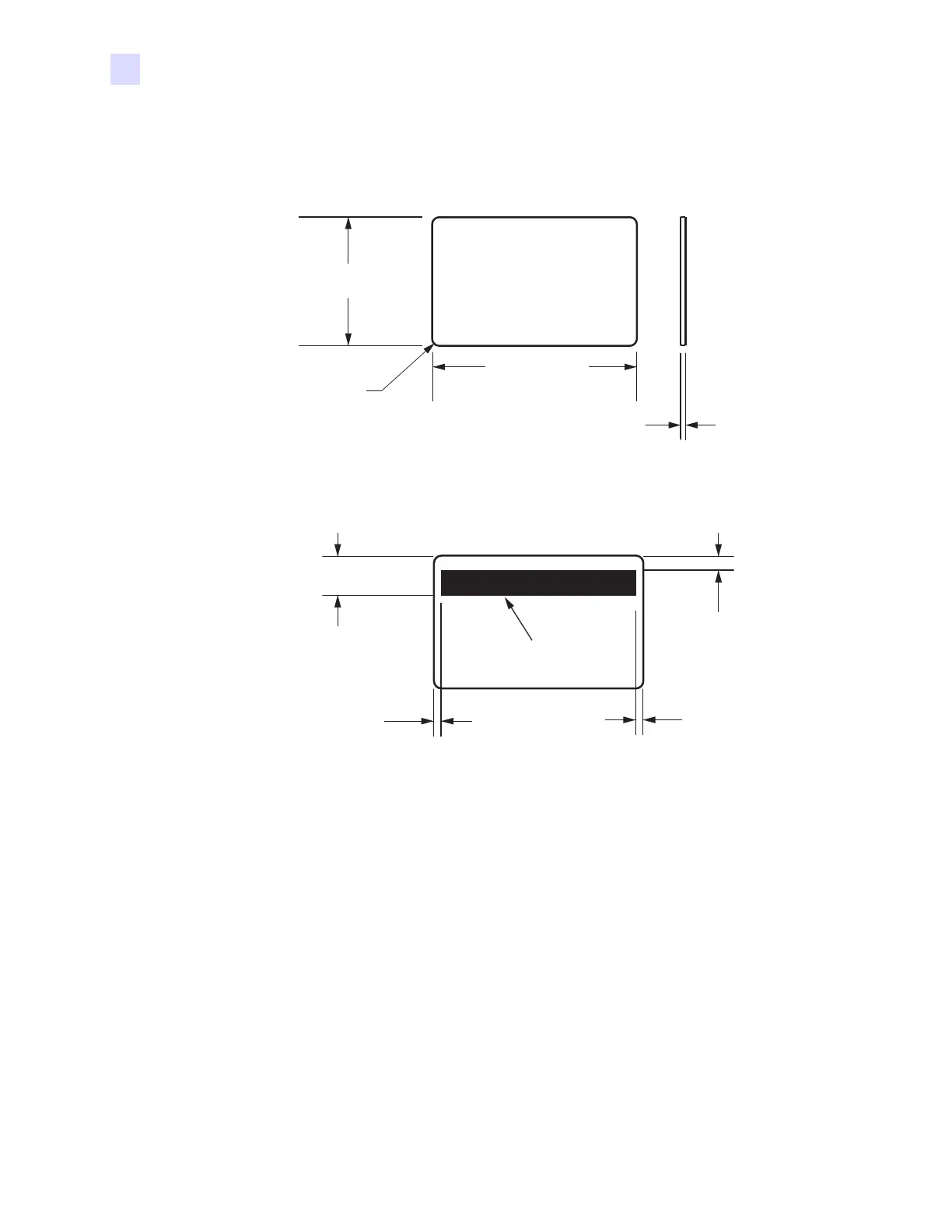

ISO Standard Card Dimensions
1.4 ISO Standard Card Dimensions
Dimensions for Plain Card ISO Standard 7810
Dimensions for Magnetic Stripe Card ISO Standard 7811
2.125 ± 0.002 in
(53.98 ± 0.050 mm)
Radius
0.125 in
(3.18 mm)
3.375 ± 0.010 in
(85.72 ± 0.25 mm)
0.009 ~ 0.034 in
(0.23 ~ 0.84 mm)
0.623 in (15.82 mm) min
0~0.115 in (2.92 mm) 0~0.115 in (2.92 mm)
MAGNETIC STRIPE
0.218 in (5.54 mm) max

Zebra ZXP 1 Series Specifications

General

Resolution	300 dpi
Connectivity	USB 2.0
Power Requirements	100-240 VAC, 50-60 Hz
Print Technology	Dye sublimation
Card Capacity	100 cards (input hopper)
Card Size	CR-80 ISO 7810
Dimensions	368 mm (D)
Memory	32 MB
Operating Temperature	15°C to 30°C
Operating Humidity	20% to 65% non-condensing
Card Thickness	0.3mm - 1.06mm
