74 Zebra ZXP Series 1 Card Printer Service Manual P1061942-001
2: Installation and Setup
Print a Test Card
2.3 Print a Test Card
With ribbon cartridge and cards loaded, your printer is ready to print. To check the operation
of the printer, you should print a test card.
Step 1. Select Start > Devices and Printers. Right click on the Zebra ZXP Series 1 Card
Printer listing. Select Printer properties > Device Settings; and click on the
Tools button.

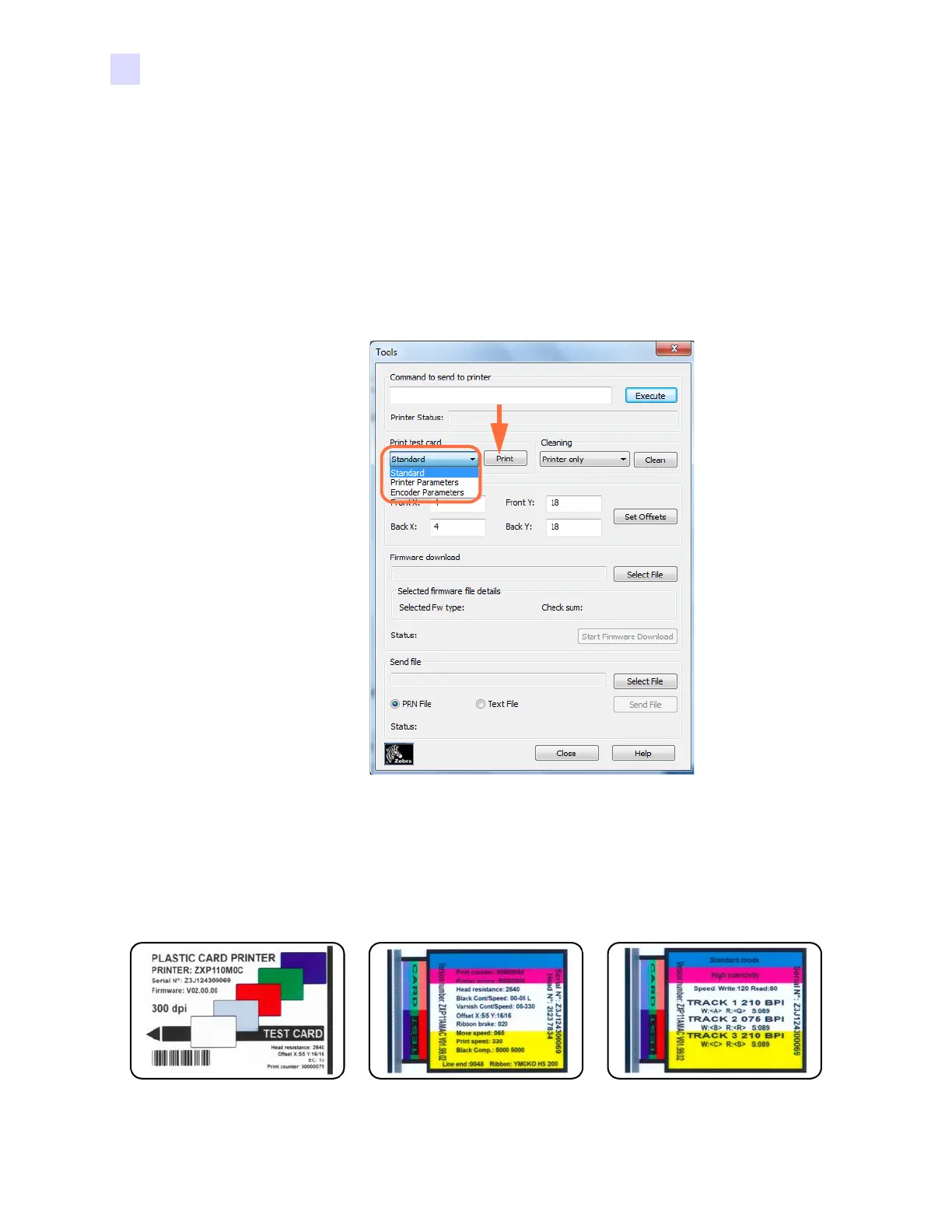

Step 2. Observe the Tools window.
Step 3. From the Print Test Card menu, select the desired test card (circled above).
Step 4. Click on the Print button (arrow above) to print the selected test card; see sample
test cards below.
Standard: Printer Parameters: Encoder Parameters:
