2 Zebra ZXP Series 1 Card Printer Service Manual P1061942-001

1: General Description

Features, Controls, and Indicators

1.2 Features, Controls, and Indicators

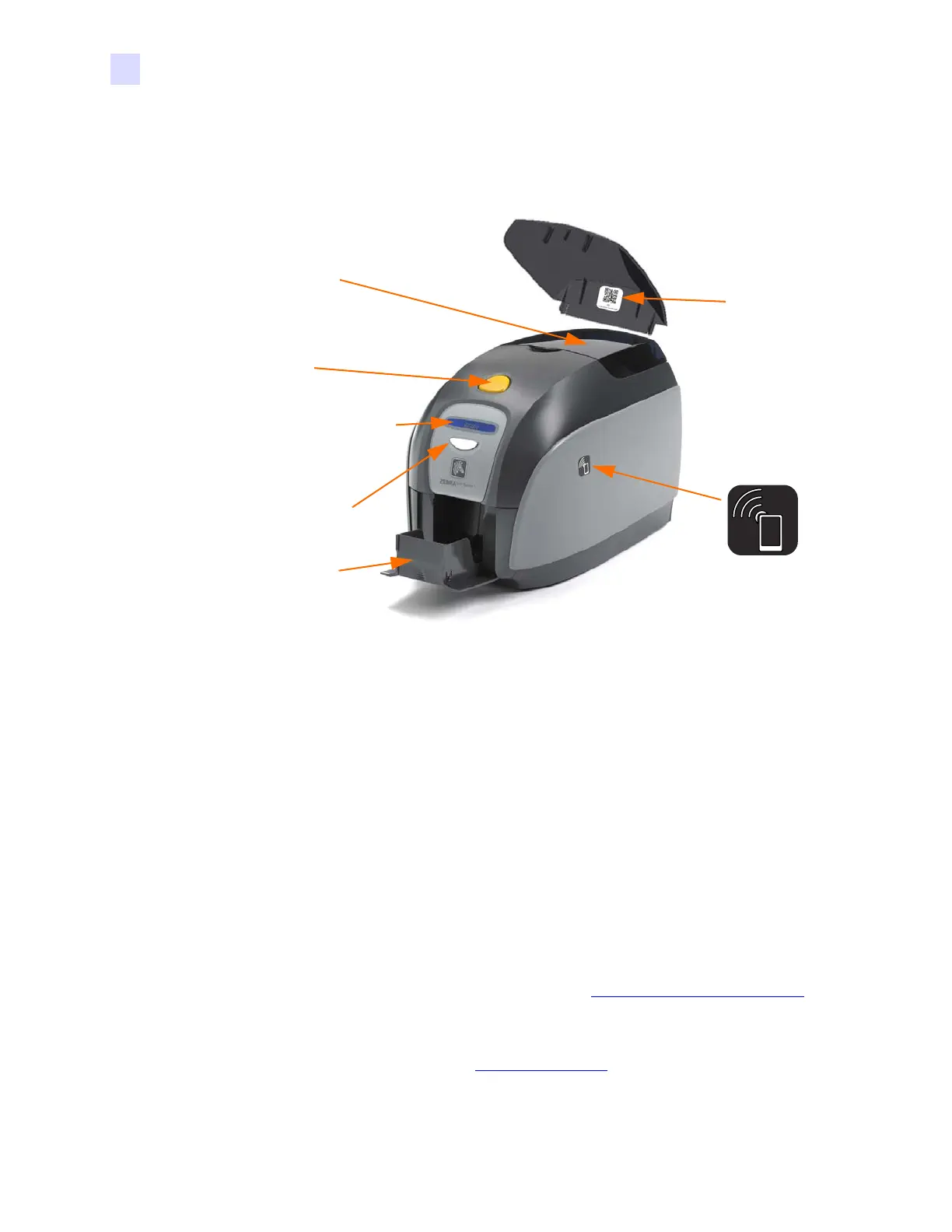

The picture below points out some of the printer’s external features.

• Card Feeder Cover - Opening the Card Feeder Cover gives access to the automatic card

feeder. The translucent cover allows you to see when the card supply is running low. The

feeder has a 100-card capacity (30-mil cards).

• Lid Release Button - Pressing the Lid Release Button allows the printer’s lid to swing

open. This gives internal access for changing the Ribbon Cartridge, changing Cleaning

Rollers, and cleaning the printer.

• Multi-Function LCD Display Panel - The Multi-Function LCD Display Panel displays

printer status information. Messages also alert the user of the need for action and indicate

certain fault conditions.

• Multi-Function Control Button - The Multi-Function Control Button initiates several

functions; these are described in the appropriate sections of this document.

• Card Output Hopper - Front-side Card Output Hopper has a 50-card capacity.

• Quick Help QR Code - The QR code launches web-based help pages to find user videos

for simple set-up and maintenance instructions; see http://www.zebra.com/zxp1-info

for details.

• Zebra Print Touch Tag - This touch point uses NFC technology to provide key

information about the printer; see http:\\zebra.com/nfc

for details.

Card Feeder

Cover

Lid Release

Button

Multi-Function LCD

Display Panel

Multi-Function

Control Button

Card Output

Hopper

Zebra Print

Touch Tag

Quick Help

QR Code
