136 Zebra ZXP Series 1 Card Printer Service Manual P1061942-001

5: Replacement Procedures

Procedures

5.6.18 Card Feeder Assembly

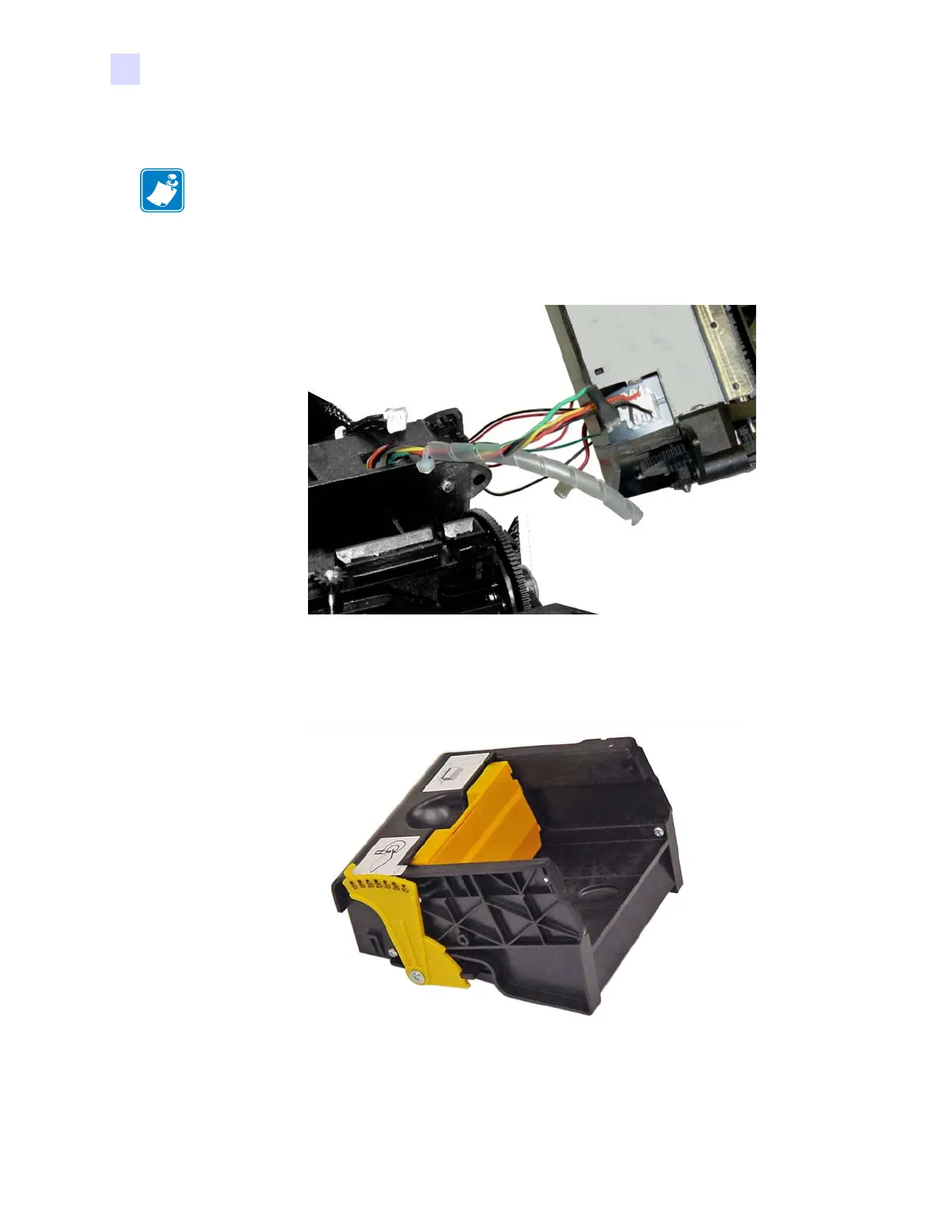

Step 1. With the shaft removed (Section 5.6.17) and the plugs disconnected from the Main

PCBA, lift the Card Feeder out of the Frame.

Step 2. Unwrap the spiral cable tie, cut the cable tie, and then pull the ground wire and

card-feeder cable out of the access hole.

Step 3. Remove the Card Feeder Assembly.

NOTE • This procedure uses Spare Kit # P1031925-230: KIT, FEEDER ASSEMBLY.
