120 Zebra ZXP Series 1 Card Printer Service Manual P1061942-001

5: Replacement Procedures

Procedures

5.6.7 LCDisplay PCBA

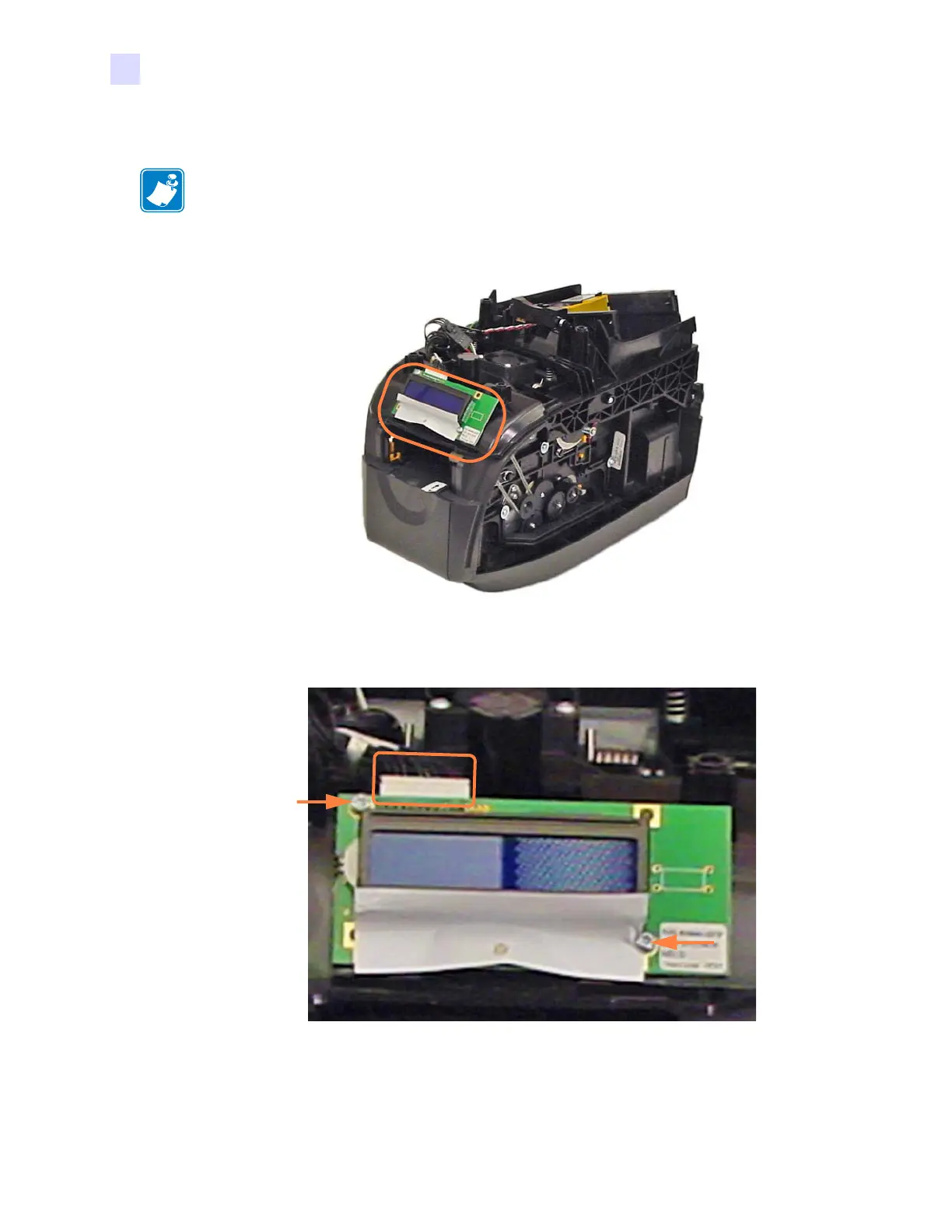

Step 1. Locate the LCD Display PCBA (circled below).

Step 2. Carefully remove the 10-wire plug (circled below) from the connector on the

LCD

Display

PCBA.

Step 3. With a TORX T10 driver, remove the two screws (SCR, PLAST, 4-.25L, 4.0 in-lb)

that hold the

LCD Display PCBA to the Frame; see arrows above.

Step 4. Remove the

LCD Display PCBA.

NOTE • This procedure uses Spare Kit # P1031925-010: KIT, LCDISPLAY PCBA.
