162 Zebra ZXP Series 1 Card Printer Service Manual P1061942-001

5: Replacement Procedures

Procedures

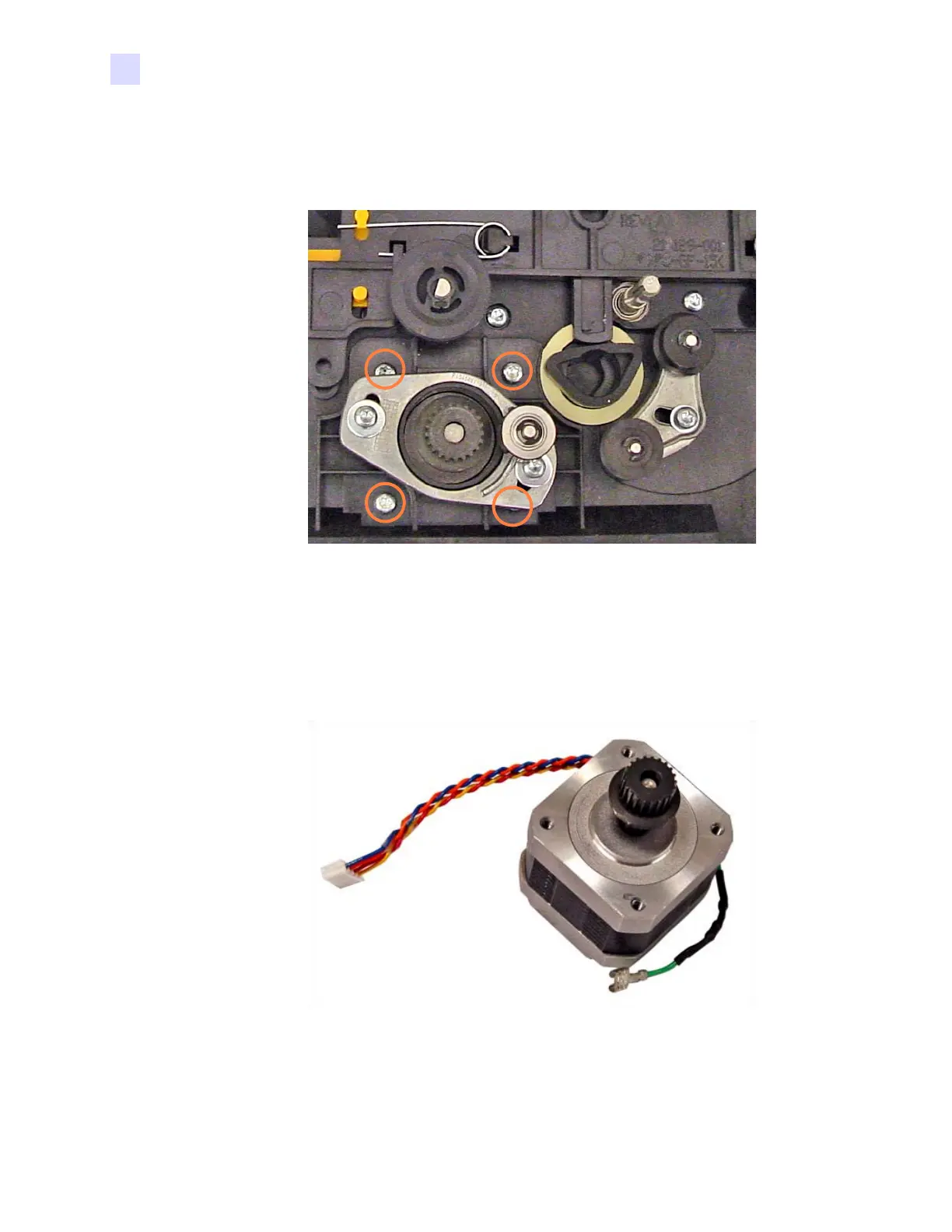

Step 5. With a TORX T10 driver, remove the four screws (SCR 4-40, 5/16; 7.0 in-lb)

holding the Stepper Motor in place; circled below. Note the orientation of the motor;

-- the connector is facing toward the back of the printer.

Step 6. If not already done, disconnect the Stepper Motor plug from connector J22 on the

Main

PCBA.

Step 7. Disconnect the ground wire.

Step 8. Remove the Stepper Motor.
