170 Zebra ZXP Series 1 Card Printer Service Manual P1061942-001

5: Replacement Procedures

Procedures

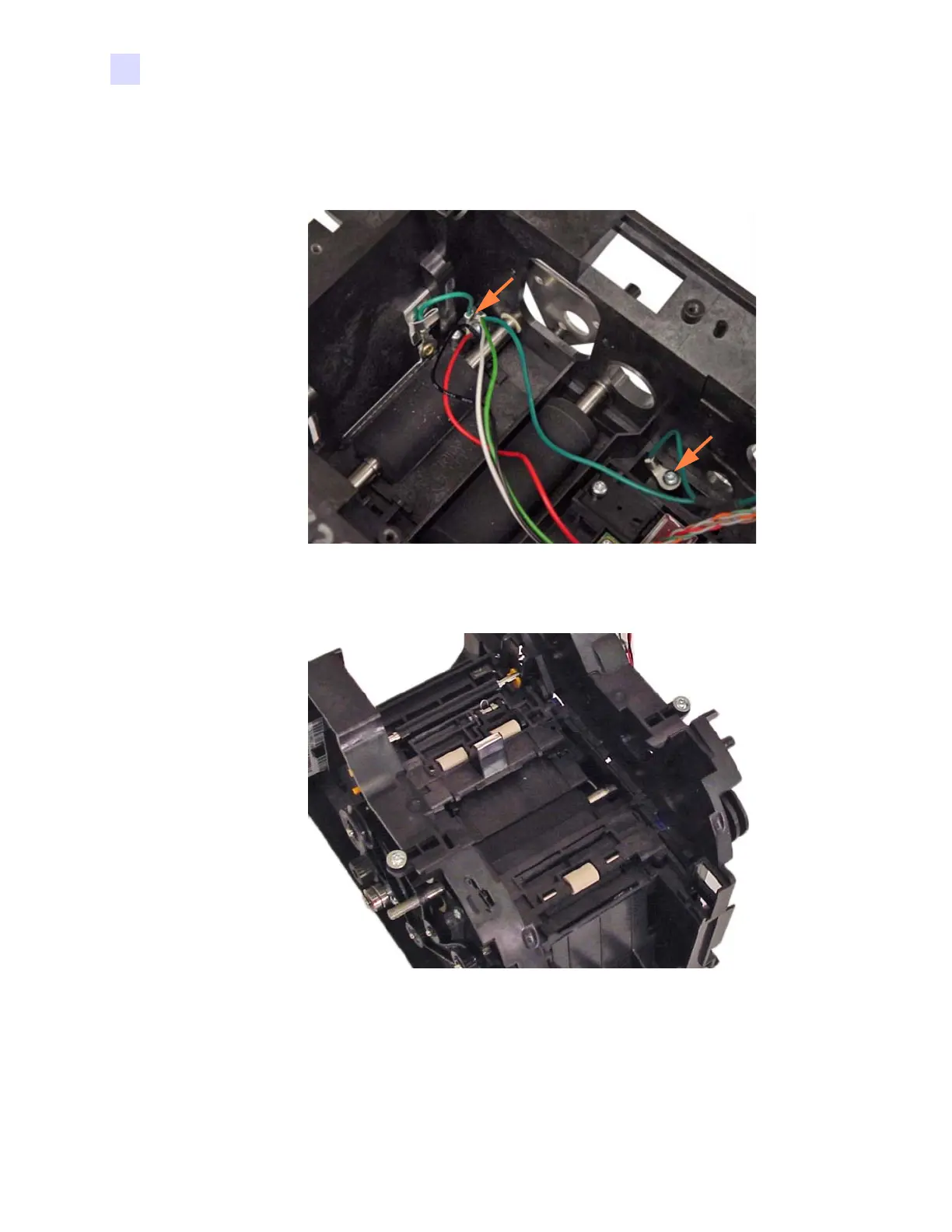

Step 4. With a TORX T10 driver, remove the screw (SCR, PLAST, 2-.25, 2.5 in-lb), left

arrow; remove the screw (SCR, PLAST, 4-.25L, 7.0 in-lb), right arrow; then

disconnect the ground wires.

Step 5. Turn the Print Engine over (for access from top).
