Zebra ZXP 1 Series User Manual

202 Zebra ZXP Series 1 Card Printer Service Manual P1061942-001
C: Accessing a Network Printer via a Web Browser
Procedure
Step 1. Start your Web Browser.
Step 2. In the browser address bar, enter the IP address of the ZXP Series 1 Card Printer
connected to the local Ethernet network. You can get the IP address by checking the
printer configuration; see Viewing Printer Information on page 20 for details.

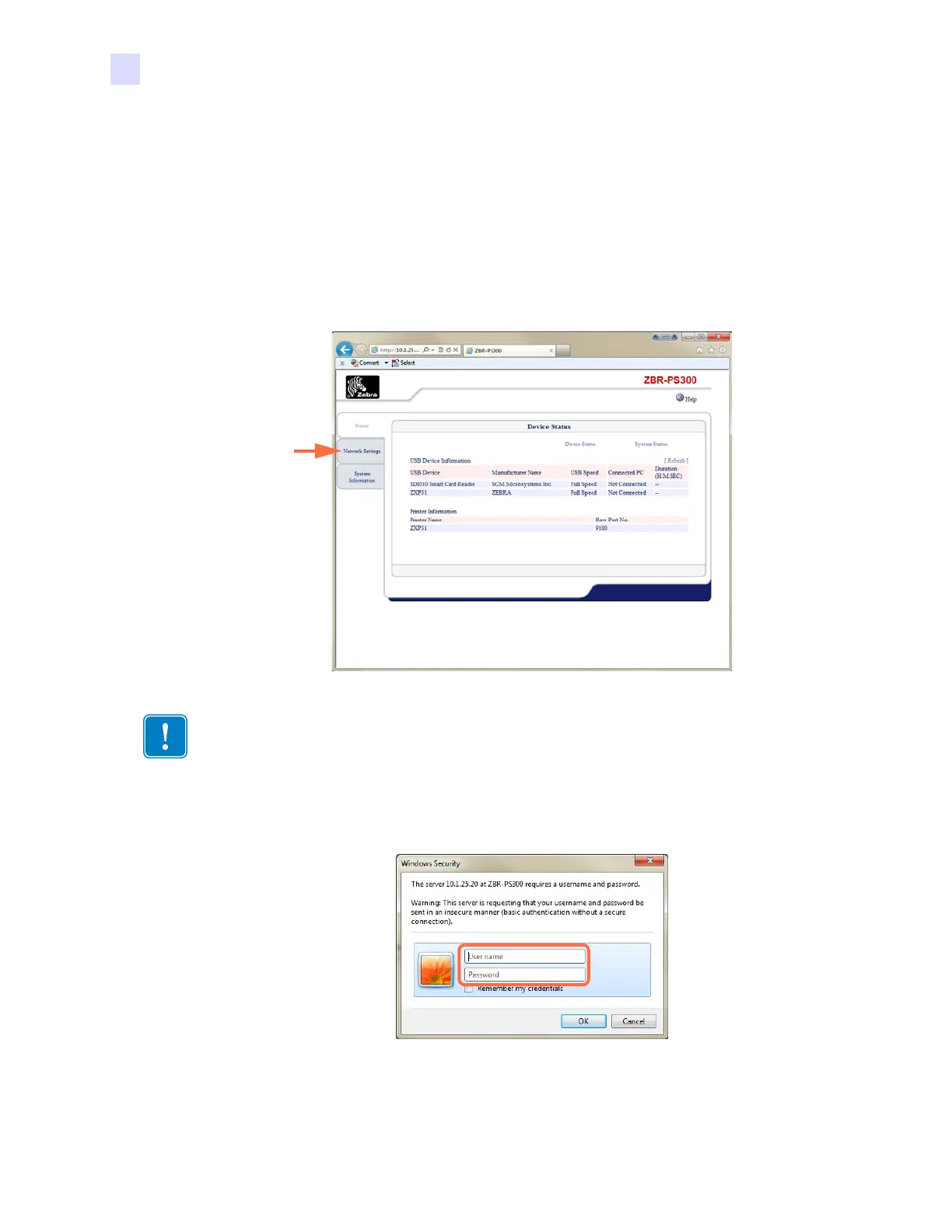

Step 3. When the Device Status screen appears, click on the Network Settings tab
(arrow below).
Step 4. When the Windows Security dialog box appears, type the User name (admin) and
Password (1234); and click on the OK button.
Important • For the next step, the User name = admin; and the Password = 1234.

Zebra ZXP 1 Series Specifications

General

Resolution	300 dpi
Connectivity	USB 2.0
Power Requirements	100-240 VAC, 50-60 Hz
Print Technology	Dye sublimation
Card Capacity	100 cards (input hopper)
Card Size	CR-80 ISO 7810
Dimensions	368 mm (D)
Memory	32 MB
Operating Temperature	15°C to 30°C
Operating Humidity	20% to 65% non-condensing
Card Thickness	0.3mm - 1.06mm
