Zebra ZXP 1 Series User Manual

212 Zebra ZXP Series 1 Card Printer Service Manual P1061942-001

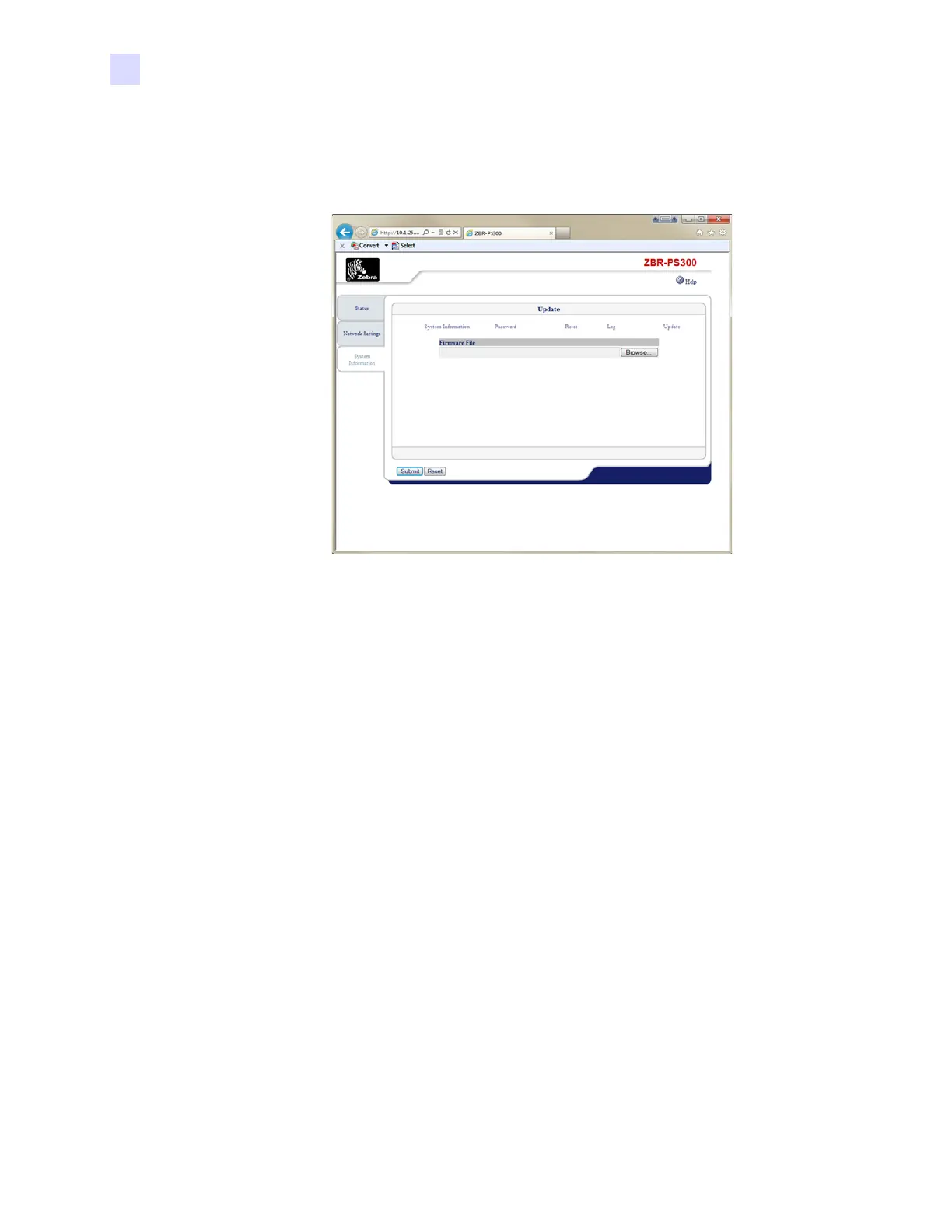

C: Accessing a Network Printer via a Web Browser
System Information (continued):
Update
• Firmware File Update the firmware. Specify the file path for the
firmware to be updated. Note that this update is the
ZBR-PS300 firmware, not the Printer firmware.
Step 6. When done, close the browser by clicking on the red X-button in the upper-right
corner of the browser screen.

Zebra ZXP 1 Series Specifications

General

Resolution	300 dpi
Connectivity	USB 2.0
Power Requirements	100-240 VAC, 50-60 Hz
Print Technology	Dye sublimation
Card Capacity	100 cards (input hopper)
Card Size	CR-80 ISO 7810
Dimensions	368 mm (D)
Memory	32 MB
Operating Temperature	15°C to 30°C
Operating Humidity	20% to 65% non-condensing
Card Thickness	0.3mm - 1.06mm
