Zebra ZXP 1 Series User Manual

32 Zebra ZXP Series 1 Card Printer Service Manual P1061942-001
2: Installation and Setup
Installing the Windows Printer Driver

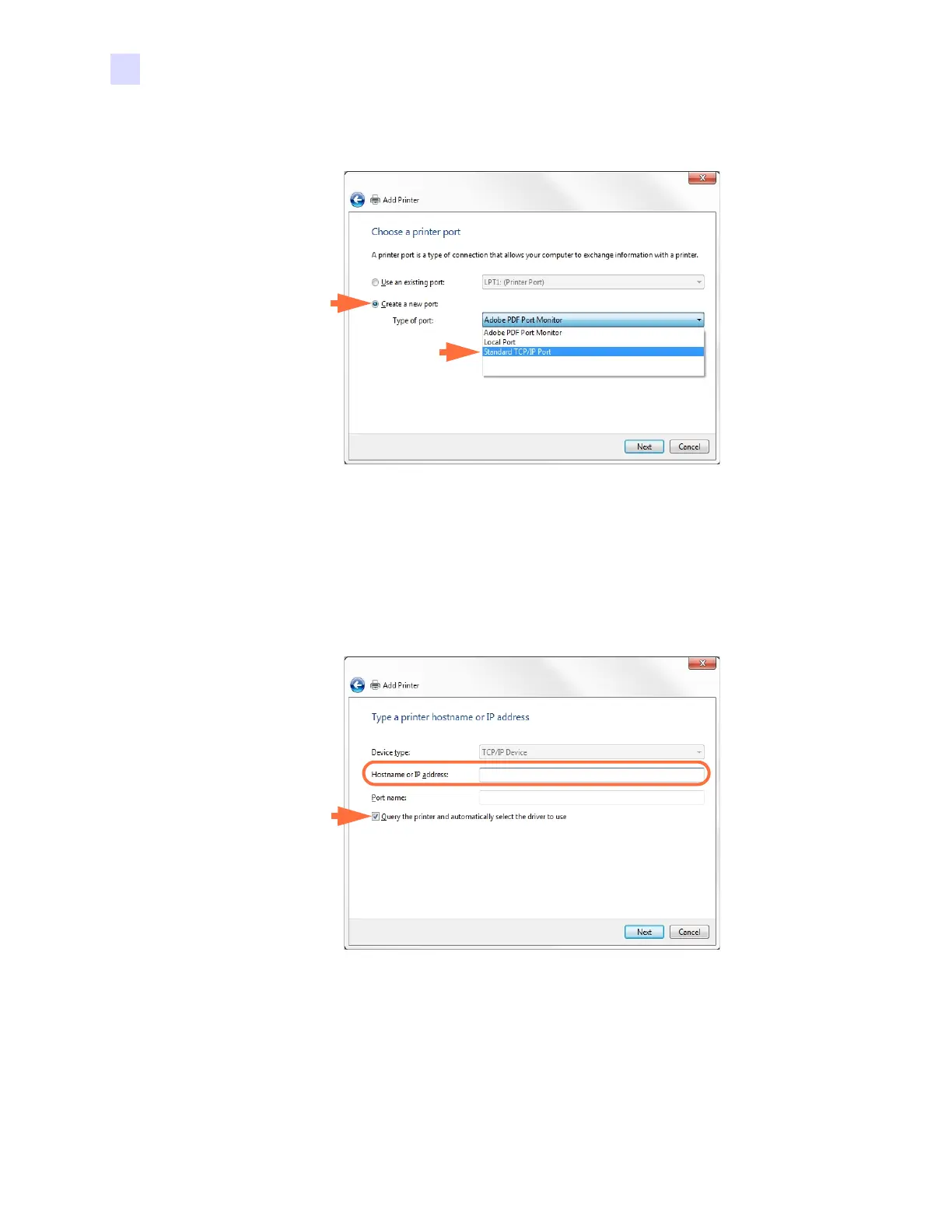

Step 6. Observe the Choose a printer port window.
Step 7. Select the Create a new port radio button (1st arrow above).
Step 8. From the dropdown menu, select Standard TCP/IP Port (2nd arrow above).
Step 9. Click on the Next button.
Step 10. Observe the Type a printer hostname or IP address window.
Step 11. Enter the IP address of your printer in the Hostname or IP address text box (circled
above). Note that the Port name will automatically be filled in when you enter the
IP Address. Do not change the Port Name.
Step 12. Ensure that the Query the printer ... checkbox is selected (arrow above).
Step 13. Click on the Next button.

Zebra ZXP 1 Series Specifications

General

Brand	Zebra
Model	ZXP 1 Series
Category	Printer
Language	English
