Zebra ZXP 7 series Service Manual

P1036102-007 ZXP Series 7 Card Printer Service Manual 171
Replacement Procedures for the Printer
Procedures: Flipper Module

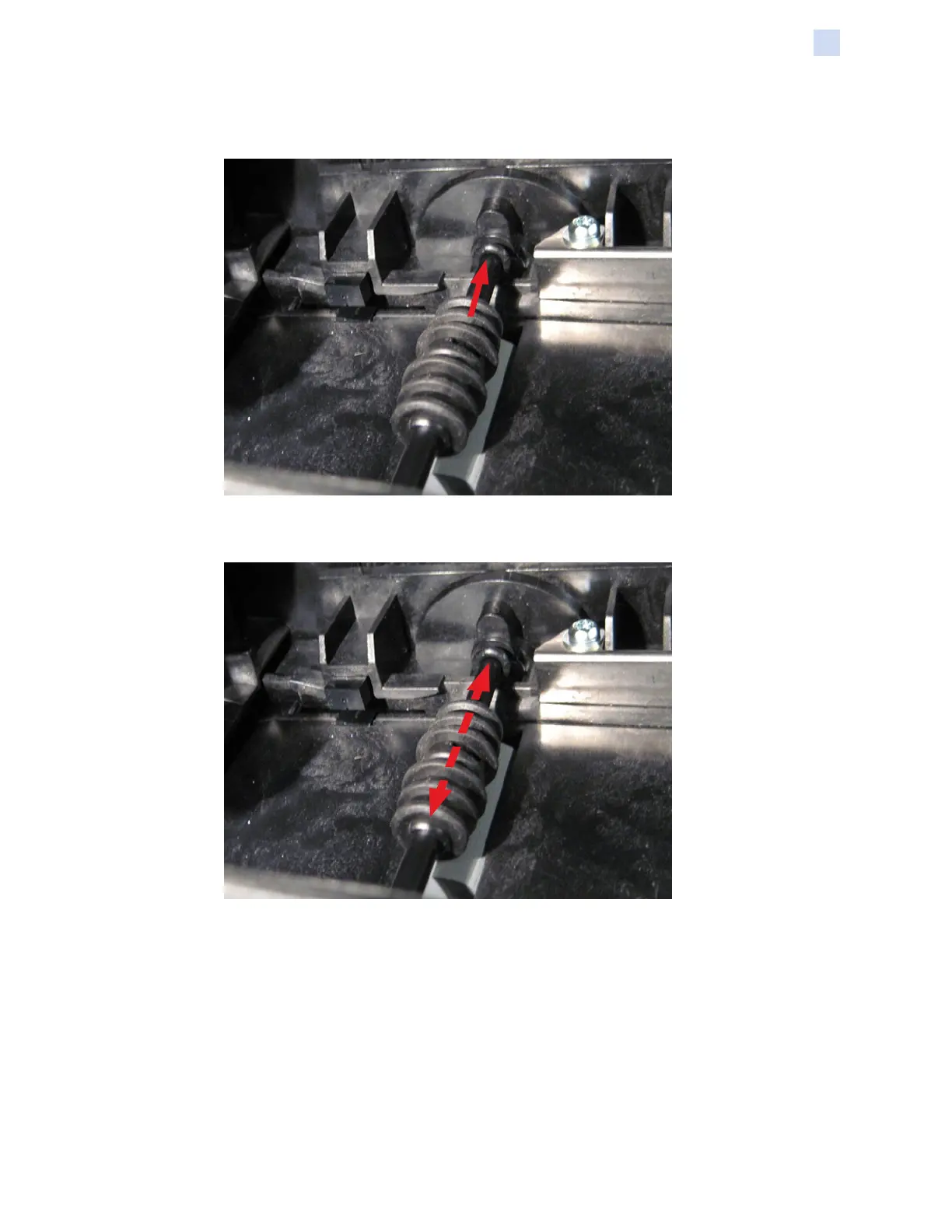

Step 3. Push the o-ring toward the rear of the printer until it stops against the flange
at the end of the roller (arrow below). The o-ring “locks” the roller in place.
Step 4. Move the roller forward and backward to make sure it is fully seated at both
ends.You should not be able to remove the roller.

Zebra ZXP 7 series Specifications

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
