172 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the Printer
Procedures: Flipper Module
Flipper Deck

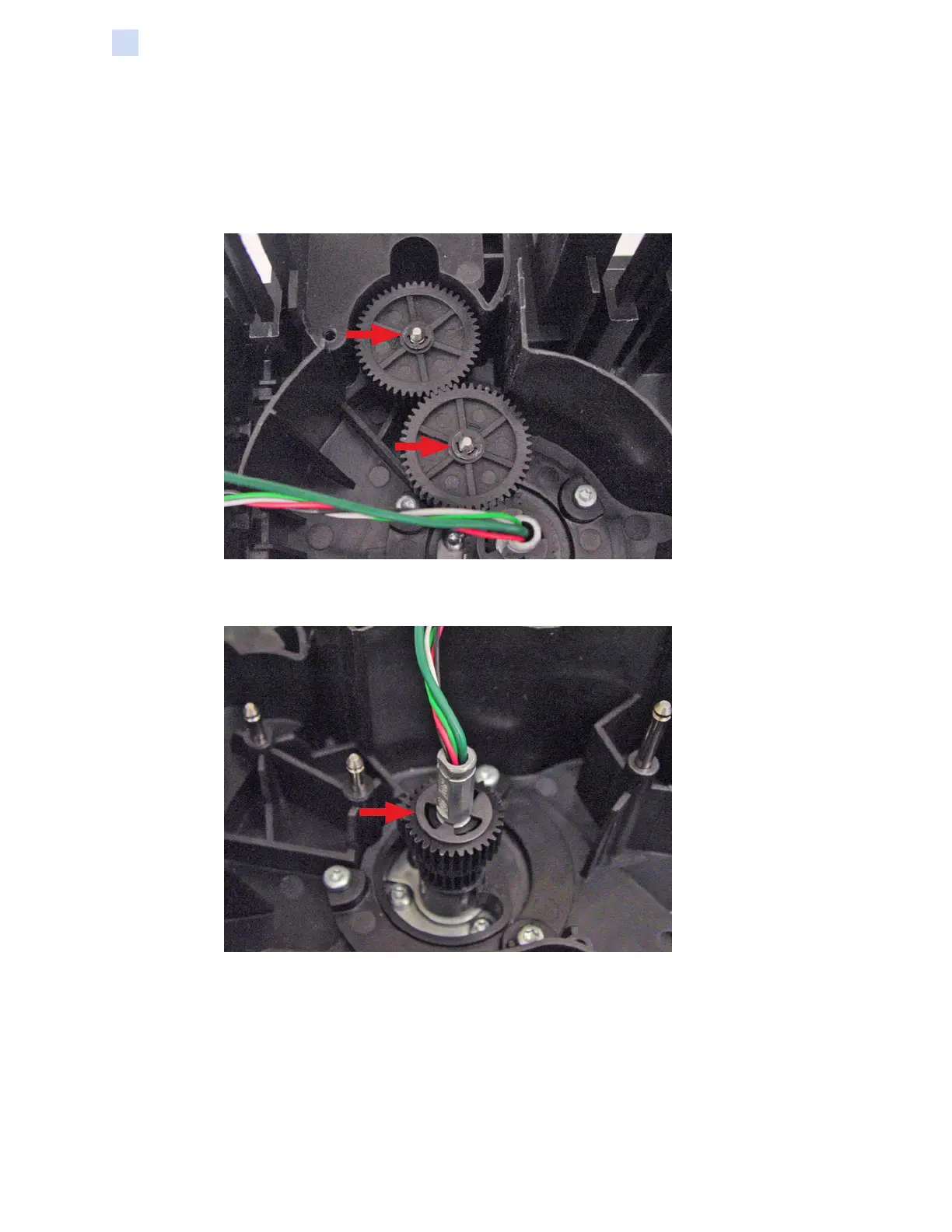

Step 1. Remove the four Flipper Deck gears.
a. Remove the retaining clips holding Gears #1 and #2 in place; and
remove the gears.
b. Remove the retaining clip holding Gear #3 in place; and remove the
gear.
