P1036102-007 ZXP Series 7 Card Printer Service Manual 173
Replacement Procedures for the Printer
Procedures: Flipper Module

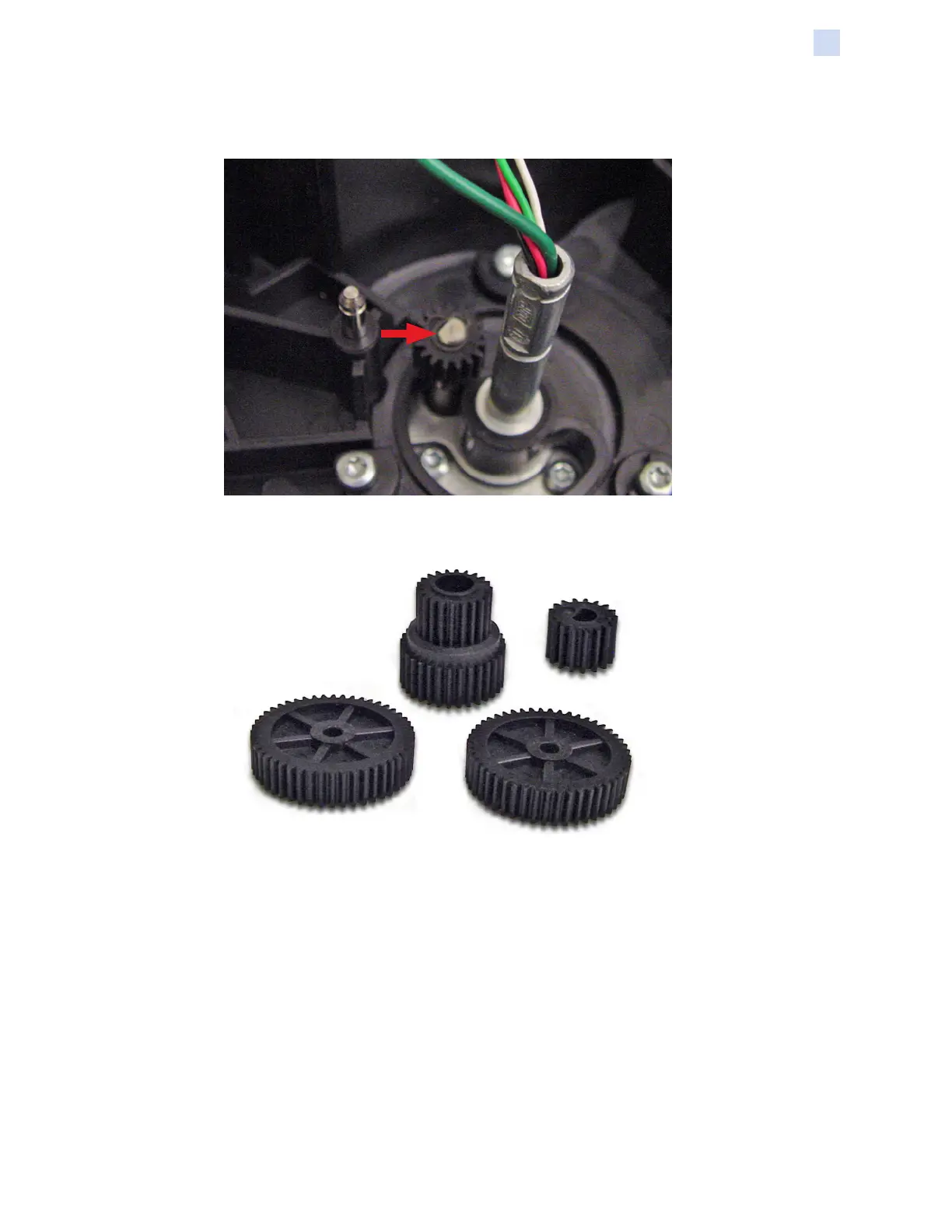

c. Remove the retaining clip holding Gears #4 in place; and remove the
gear.
d. Set the four Flipper Deck gears aside.
