174 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the Printer
Procedures: Flipper Module

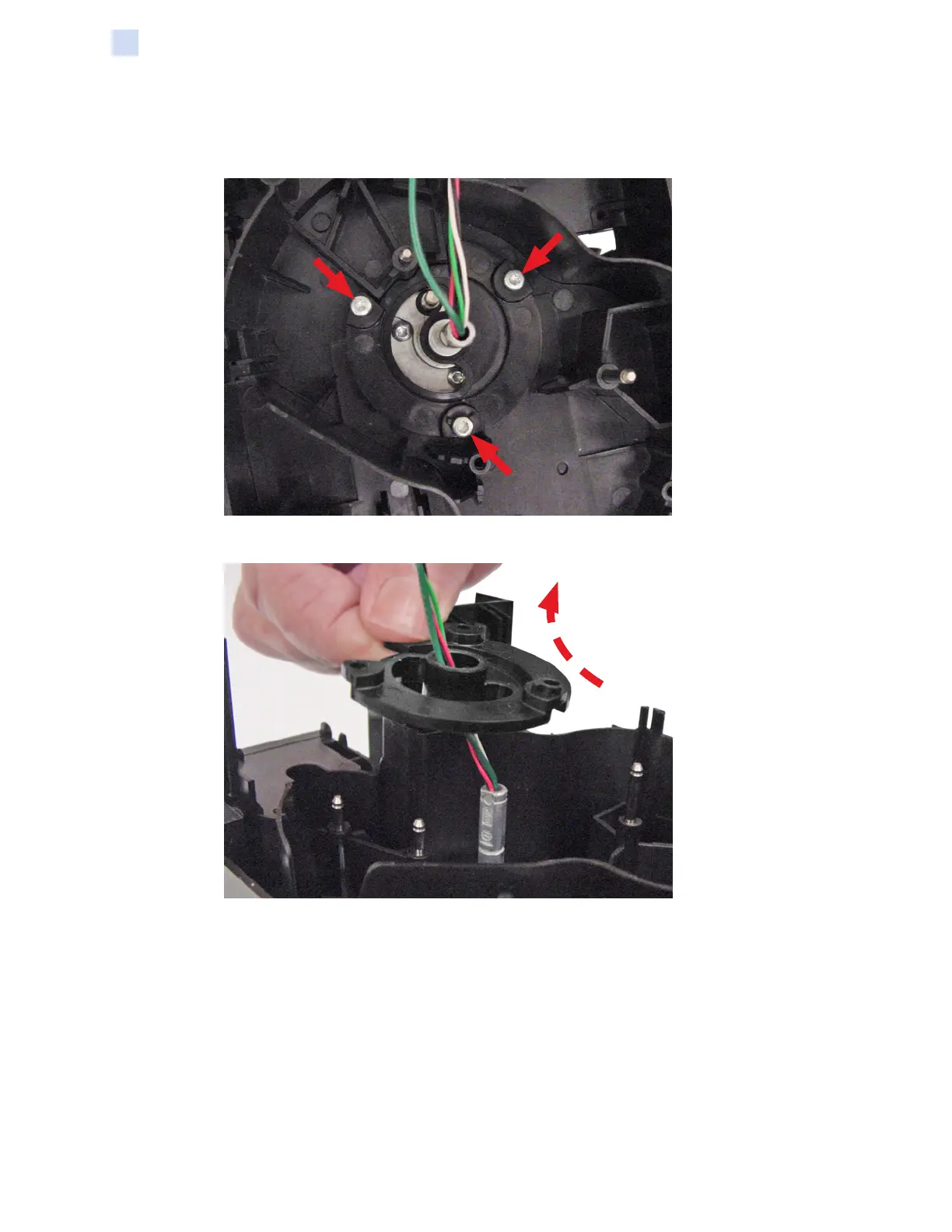

Step 2. With a TORX T10 driver, remove the three screws holding the Flipper Deck
Bearing Plate in place. Note the orientation of the Flipper Deck Bearing
Plate.
Step 3. Remove the Flipper Deck Bearing Plate, and set it aside.
