P1036102-007 ZXP Series 7 Card Printer Service Manual 175
Replacement Procedures for the Printer
Procedures: Flipper Module

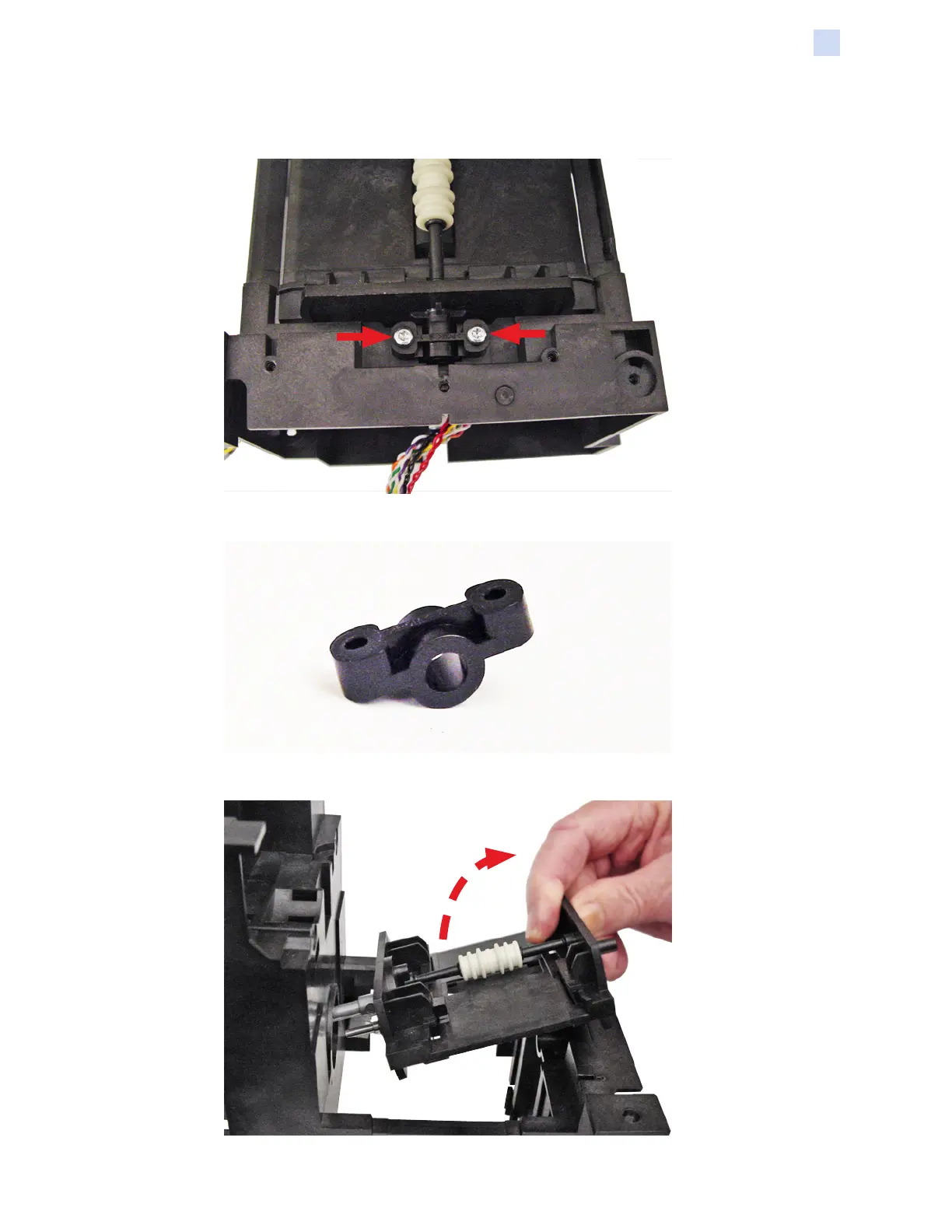

Step 4. With a TORX T10 driver, remove the two screws holding the Bearing Block in
place.
Step 5. Remove the Bearing Block, and set it aside.
Step 6. Lift the Flipper Deck up and out of the Frame.
