332 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the High-Capacity Output Hopper
Procedures: Drive Assembly

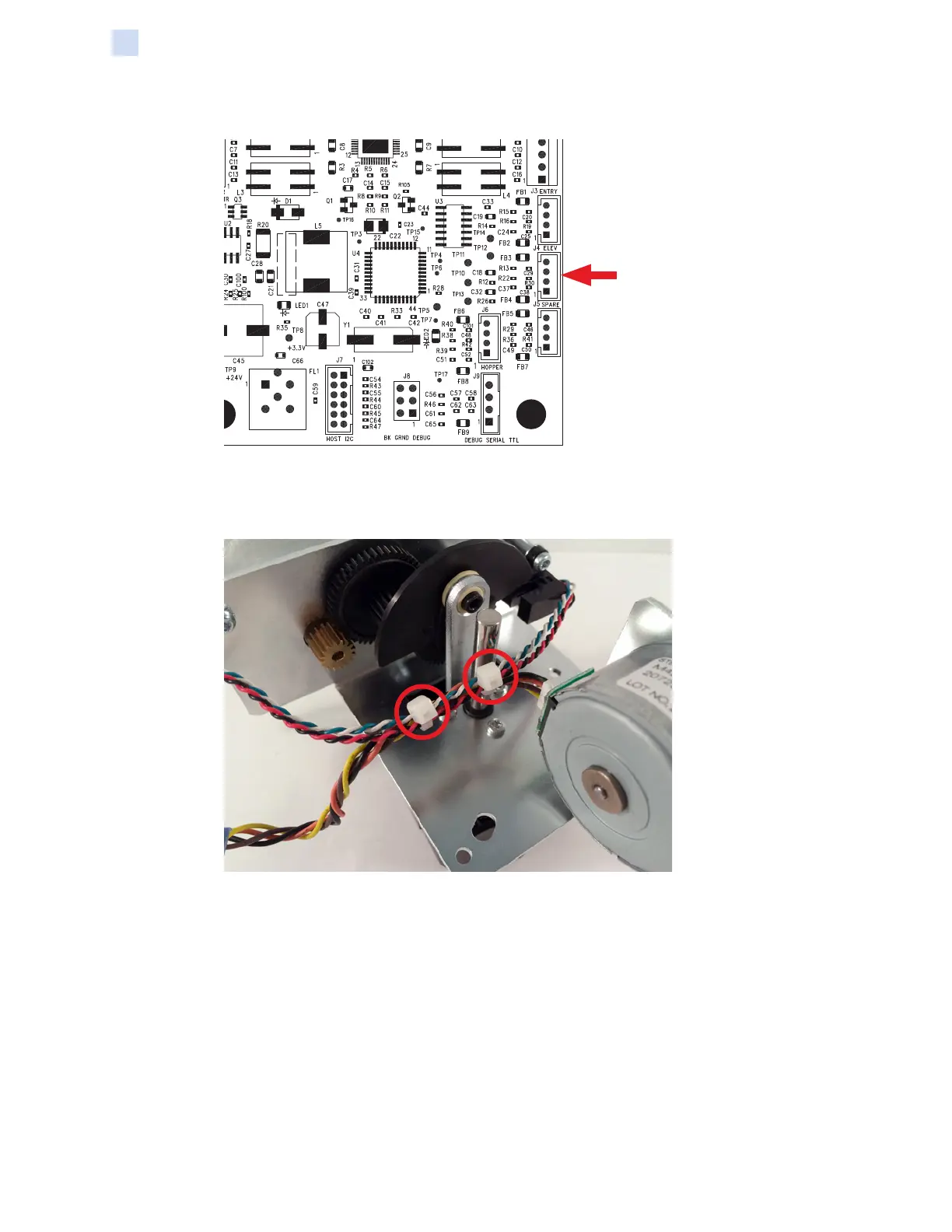

Step 7. Disconnect the lift cam sensor cable from J4 on the PCBA.
J4
Step 8. Clip the cable ties bundling the lift cam sensor cable and the platen motor
power cable.
