OPERATION
Axio Imager Operating the motorized microscope via the touchscreen of the TFT display Carl Zeiss
M70-2-0020 e 06/2009 430000-7344-001 109
4.8.5.2 Light page
Light path and intensity control functionalities are
consolidated on the Light page.
As many as four tabs are available here, depending
on the configuration of the microscope:
− Light path: Light path control
− Light intensity: Filter wheels and lamp voltage
for reflected and transmitted light
− F/A TL: Field and aperture diaphragm control in
transmitted light
− F/A RL: Field and aperture diaphragm control in
reflected light
(1) Light path tab
Under the Light path tab, the light path of the
microscope on the imaging side is shown in a
schematic diagram.
Color lines symbolize the light path.
− yellow
Active light path, which can be adjusted via
mirrors
− gray
Inactive (unknown) light path, which cannot be
adjusted
Special case: Dichroic deflection
− blue
"Side Port deflected" deflection plane
(first dichroic deflection)
− green
‘Side Port in pass-through mode’ deflection
plane
(second dichroic deflection)
or deflected for 2TV tube
− red
2TV tube in pass-through mode
(dichroic passage)

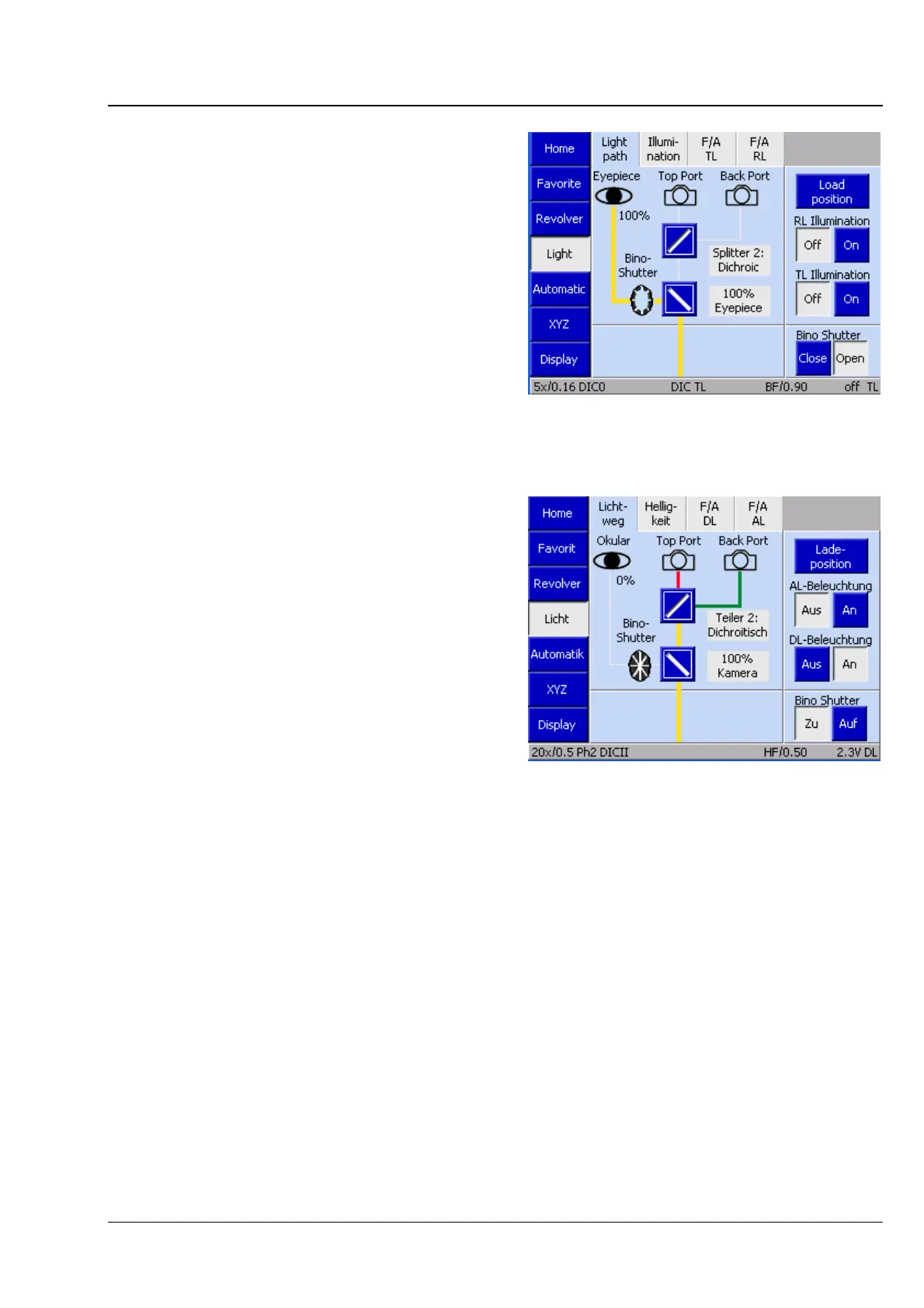

Fig. 4-40 Light page
Fig. 4-41 Microscope -> Light -> Light path
