OPERATION
Carl Zeiss Operating the motorized microscope via the touchscreen of the TFT display Axio Imager
114 430000-7344-001 M70-2-0020 e 06/2009
(4) F/A RL tab
The luminous-field diaphragm diameter and the
aperture diaphragm for the reflected-light path can
be set here.
This function will be available only if a
motorized field diaphragm or aperture
diaphragm is installed.
The following applies to all diaphragms in reflected and transmitted light:
No configuration of objectives and eyepieces available:
Diaphragm aperture data are unscaled. The values presented are absolute in relation to the
physical aperture of diaphragms.
Configuration of objectives and eyepieces available:
Diaphragm aperture data are presented in regard to the field-of-view number of the
eyepieces and aperture of the objective used.
Prev (previous) button:
It always shows the value last set.
Max/SF button:
It shows the maximum meaningful (optically scaled) diameter of diaphragms.
When one of the two buttons is pressed, the relevant diaphragm is automatically set to the
value displayed.
Whenever the light manager is employed, the optimum diameter is set automatically. Other
values, which may range up to the maximum diaphragm diameter physically attainable, can
be set via the arrow buttons.
The values last set will be lost when the objective is changed.

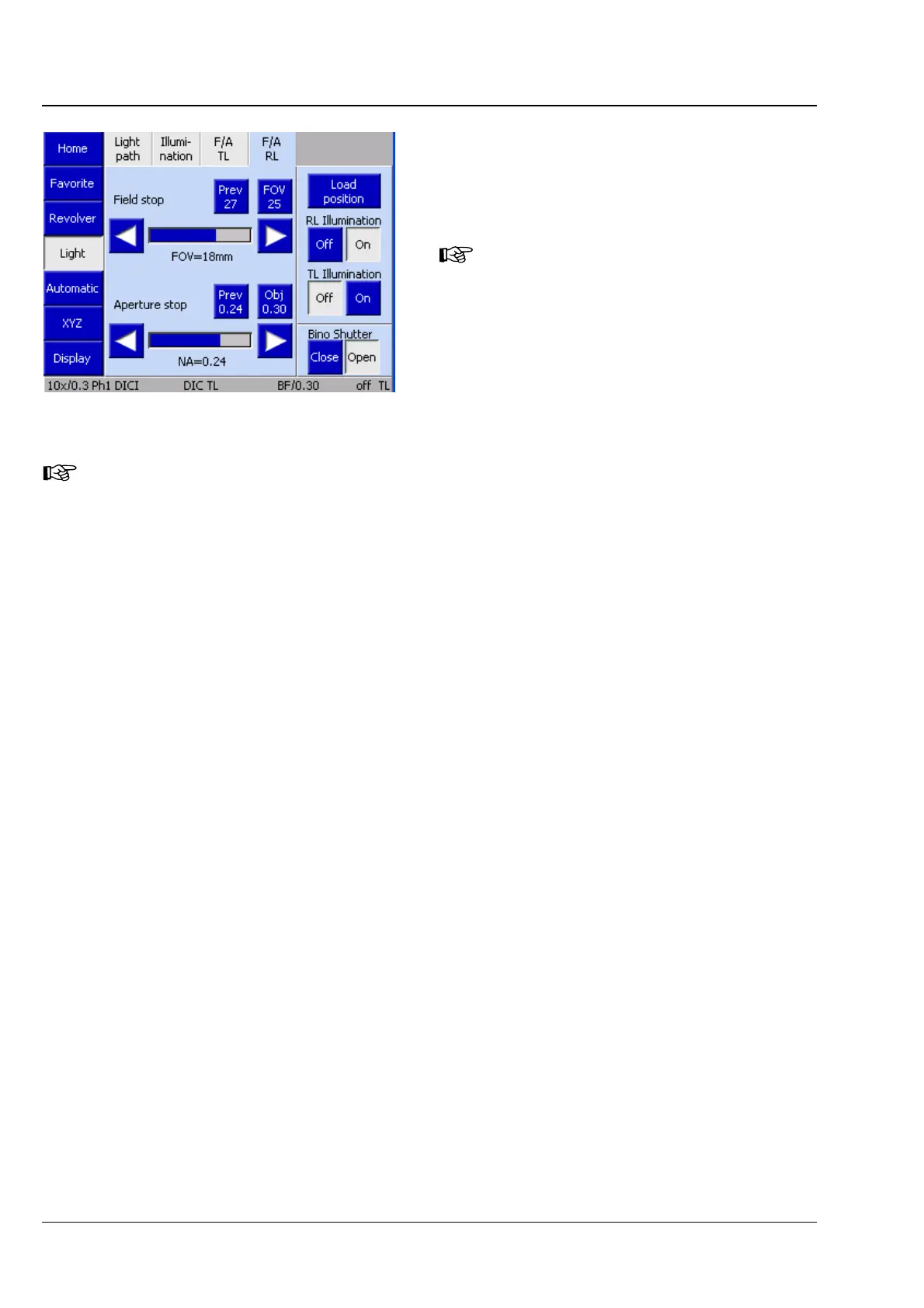

Fig. 4-47 Mikroscope -> Light -> F/A RL
