OPERATION
Axio Imager Operating the motorized microscope via the touchscreen of the TFT display Carl Zeiss
M70-2-0020 e 06/2009 430000-7344-001 115
4.8.5.3 Automatic operation page
This menu items contains two tabs:
− Soft Keys and
− HW Settings
(1) Soft Keys tab
On this page, ten functions or courses of action
can be selected under Axio Vision, which may later
be called up from here when the program is being
executed.
These can be simple settings or a snap with the
camera or even a complex experiment. The
selection is made within the AxioVision software
under the AxioVision Software menu item.
Those functions are only active when the
AxioVision software is running and connected to
the microscope.
(2) HW Settings tab
On this page, hardware settings defined on the
microscope can be called up. Complex settings can
be saved in an easy and user-specific manner and
called up later at the touch of a single button.
For allocation, see also Section
4.8.6.

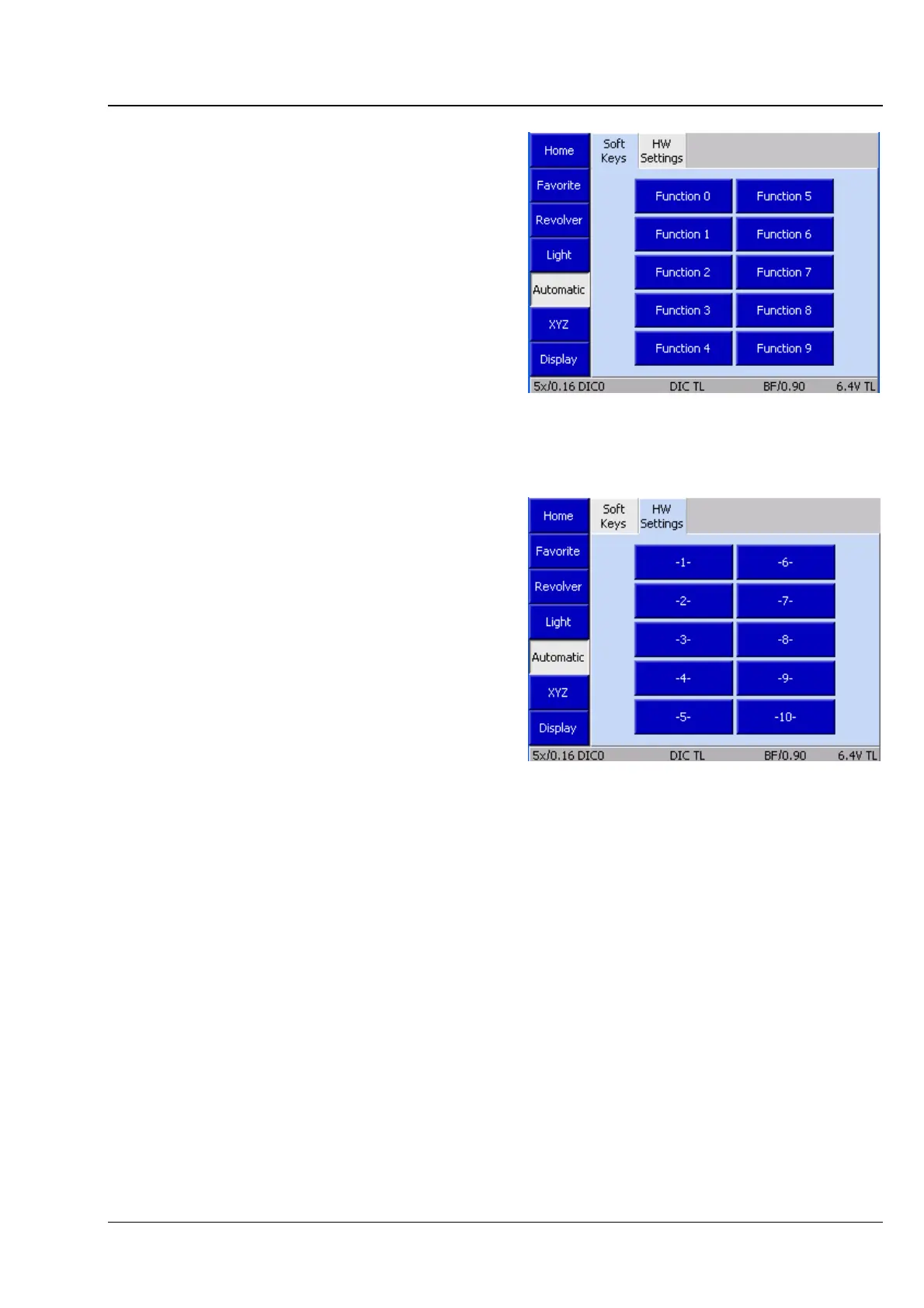

Fig. 4-48 Microscope -> Automatic ->
Soft Keys
Fig. 4-49 Microscope -> Automatic ->
HW Settings
