(6) Miscellaneous tab
Under this tab, the user can configure other
optional components of transmitted-light and
reflected-light illumination.
− TL illumination
− RL illumination
− Motorized DIC turret
− Manual condenser
− Field of view of eyepieces
− Tube lens turret
− Reflected-light configuration
TL illumination
The light source to be employed in transmitted
light must be specified here. Optionally, a
switching mirror for two illuminators may be used,
too. To this end, the appropriate check box must
be ticked.

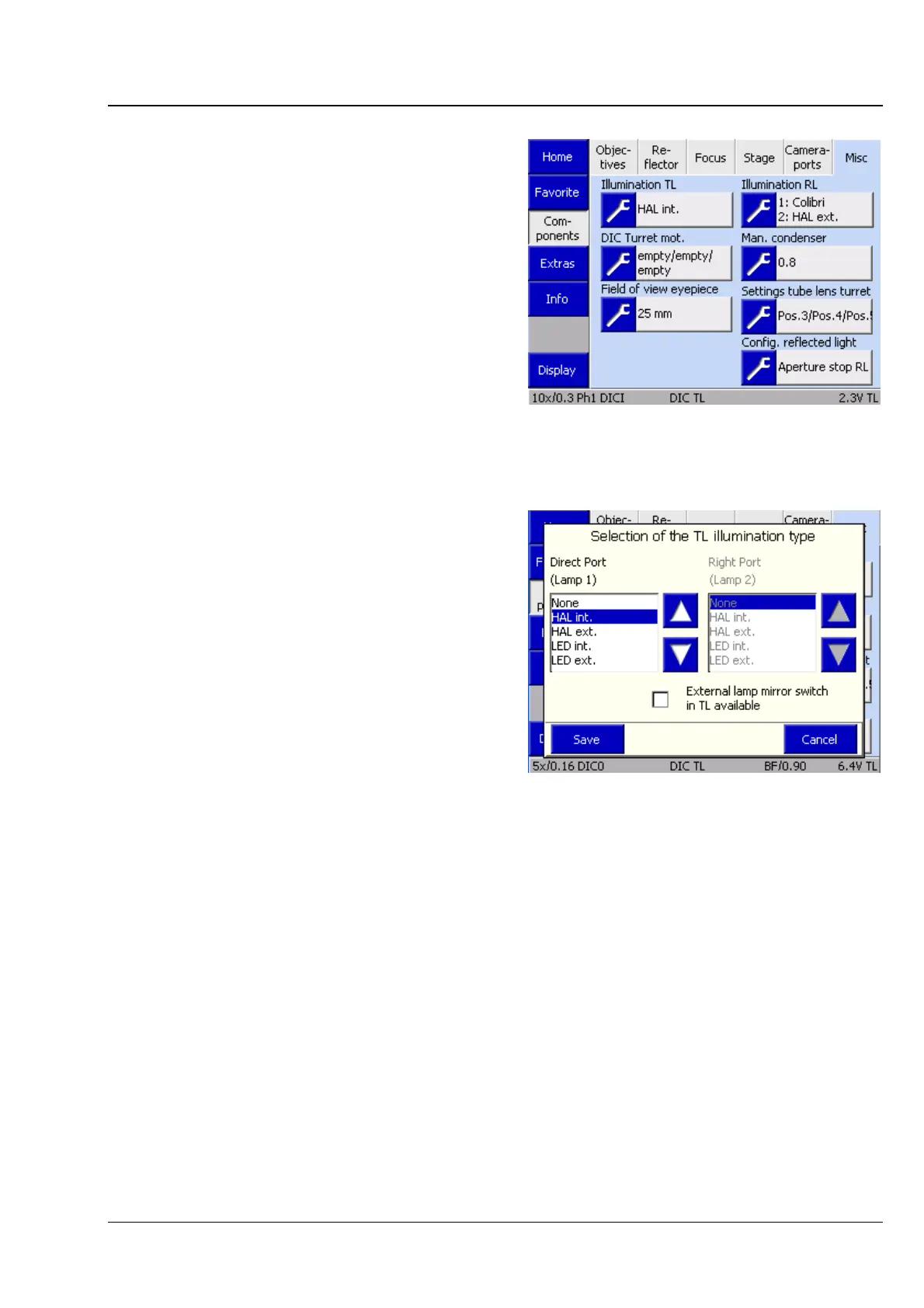

Fig. 4-76 Microscope -> Settings ->
Components -> Misc(ellaneous)
Fig. 4-77 TL illumination
