OPERATION
Carl Zeiss Operating the motorized microscope via the touchscreen of the TFT display Axio Imager
142 430000-7344-001 M70-2-0020 e 06/2009
Active illumination after switch-on (light path)
Here, the user can select the light path which is to
be active when the microscope is switched on.
• Reflected light:
The microscope starts with the reflected-
light illumination previously switched on.
• Transmitted light:
The microscope starts with the transmitted-
light illumination previously switched on.
• Turn-off state:
The microscope starts with the state in
which it was turned off.
Start page after switch-on
The page shown upon the start the microscope
can be defined here. There are two options:
− User selection
Primarily of interest for multi-user operation.
− Favorites page
Particularly useful whenever a specific
operator’s side is preferred.
Initialization of ACR objectives after switch-on
There are two options:
− Active
When the instrument is started, a recognition
run may (!) be triggered by the user. A safety
query is displayed prior to the recognition run.
− Inactive
The recognition run is triggered only upon
specific instruction given in the settings menu.

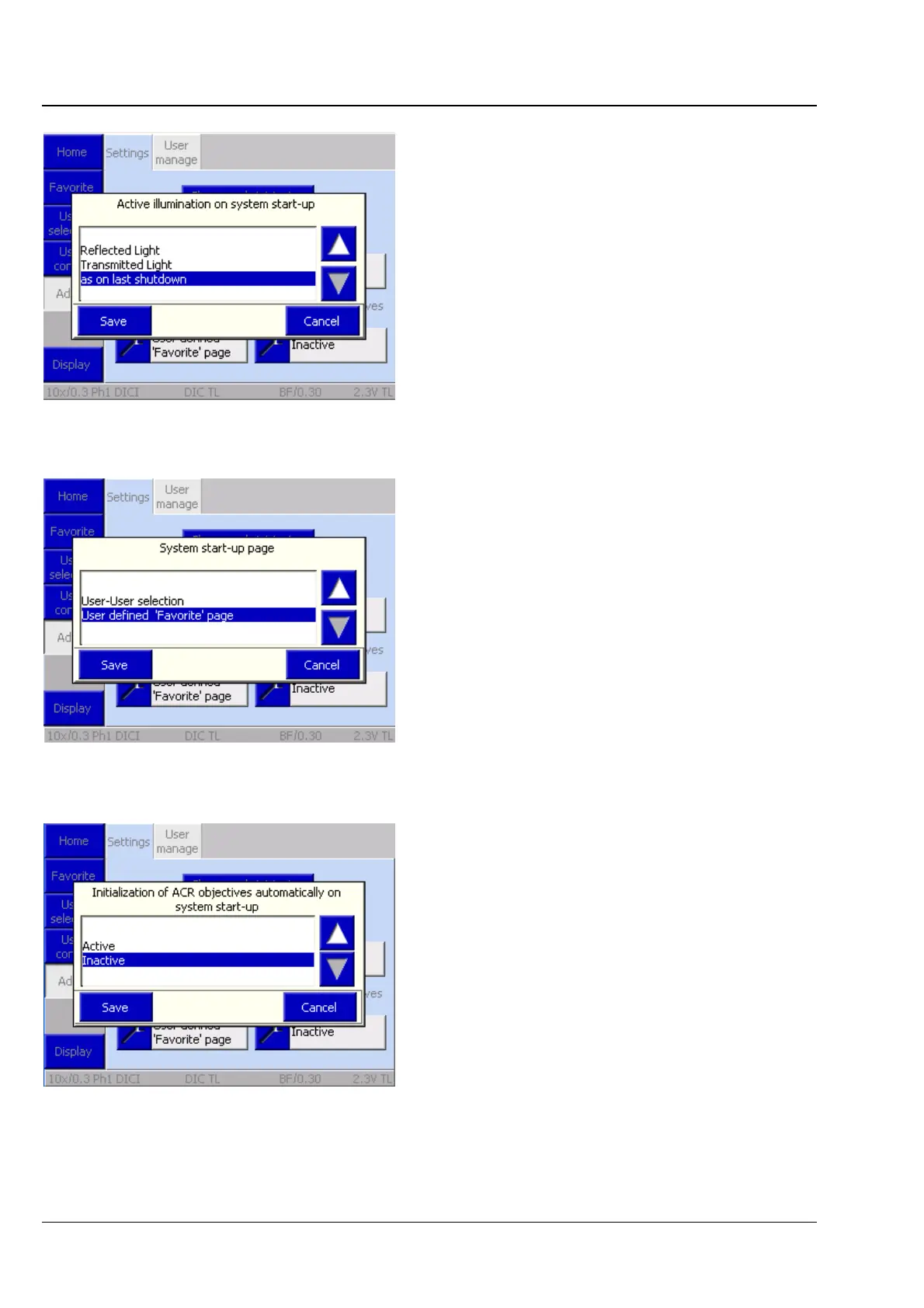

Fig. 4-107 Light path upon switch-on
Fig. 4-108 Start page after switch-on
Fig. 4-109 Initialization of ACR objectives after
switch-on
