OPERATION
Axio Imager Illumination and contrast methods Carl Zeiss
M70-2-0020 e 06/2009 430000-7344-001 179
If the microscope is equipped with the phototube Pol, the following settings are required for
this contrast method:
– The Bertrand lens must be inactive (rear push-pull rod (
4-135/6) on right side pulled out).
– The luminous-field diaphragm must be open (front push-pull rod (
4-135/5) turned
counterclockwise as far as it will go).
– The crossline reticle must be inactive (front push-pull rod (
4-135/5) pulled out).

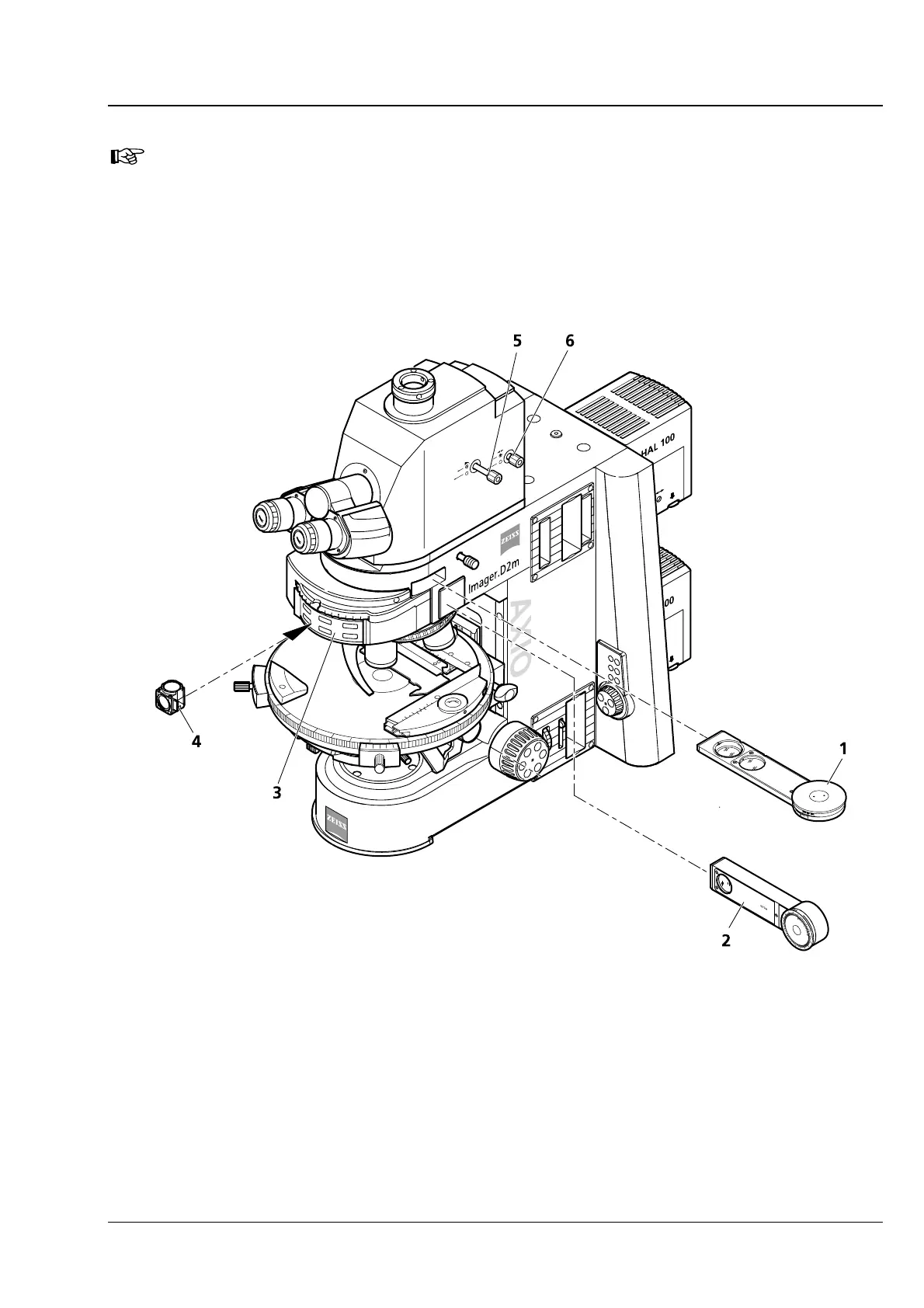

Fig. 4-135 Components for reflected-light polarization
